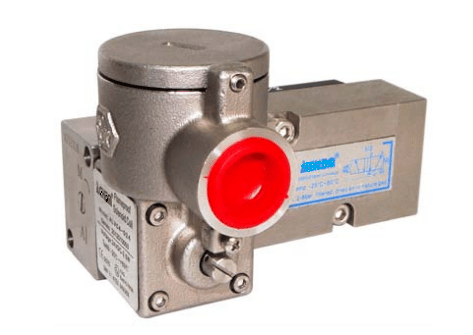

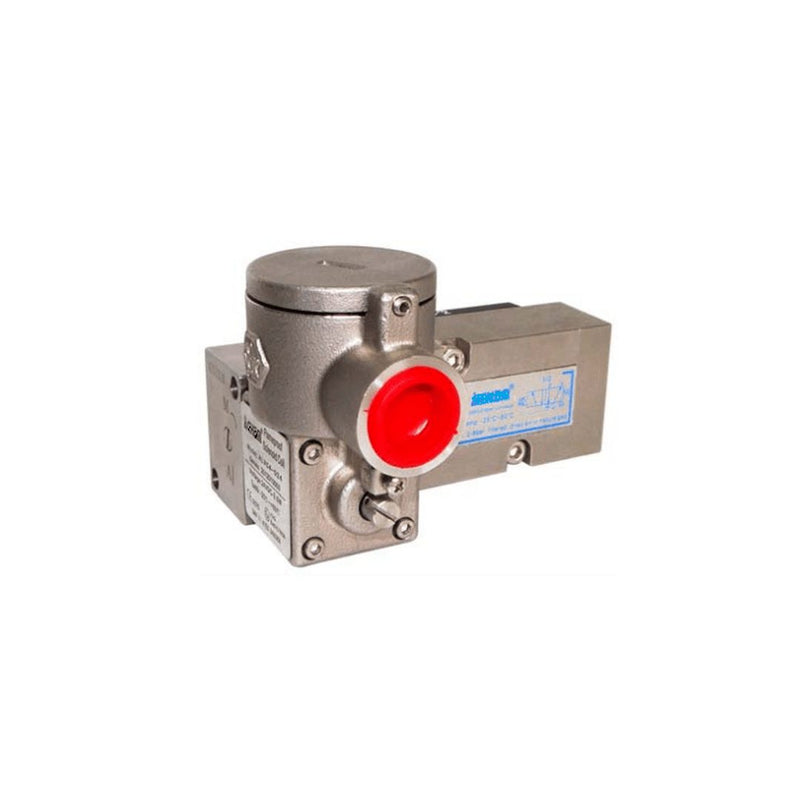

GO Namur Solenoid Spring Valve 1/4" EXD 316 Stainless 5 Way 2 Position ALV610F3

SKU: ALV610F3

$1,144

GO Namur Solenoid Spring Valve 1/4" EXD 316 Stainless 5 Way 2 Position ALV610F3

Our 5 way 2 position stainless steel exd approved namur solenoid valve is suitable for hazardous areas where there is a need for a solenoid valve to operate.  Available in mono stable (solenoid/spring) and bi stable (solenoid/solenoid) configurations.

  • Size 1/4" BSP Only
  • Function 5 way 2 position solenoid/spring namur with manual override
  • Valve Operation Servo Assisted
  • Body 316 Stainless Steel
  • Seat NBR
  • Pressure Range 1.5 to 8 BAR
  • Media Air

316 SS body 5 way 2 position differential namur solenoid/spring return valve.G1/4" NBR seat, manual override. Aluminum coil enclosure. 24v DC2-8 BAR pressure range, media temp -20°C to 80°C. Cv 1.1Ex d IIC T6 Gb IP66. M20x1.5 connection. -20 to+60deg.C IE

Model Voltage Function Port Size Orrifice Cv Media Temp Media Pressure
ALV610F3-C4-1 240v AC Solenoid/Spring 1/4" 6mm 1.1 -25°C to 80°C 2 to 8 BAR
ALV610F3-C4-2 110v AC Solenoid/Spring 1/4" 6mm 1.1 -25°C to 80°C 2 to 8 BAR
ALV610F3-C4-8 24v DC Solenoid/Spring 1/4" 6mm 1.1 -25°C to 80°C 2 to 8 BAR
