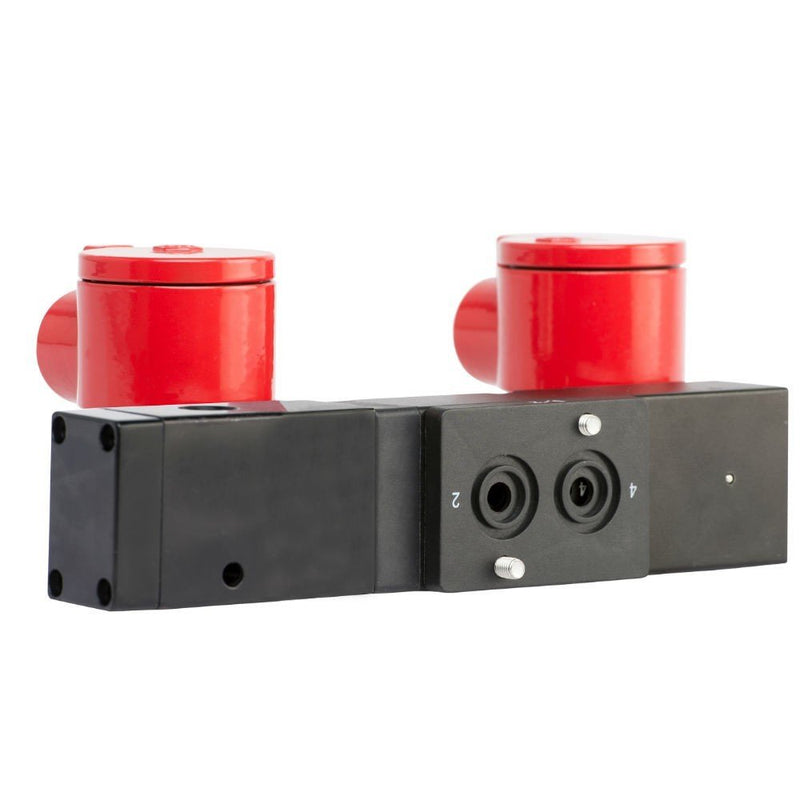

GO Namur Double Solenoid Valve 1/4" EXD 5 Way 2 Position ALV520F3
SKU: ALV520F3
$578
GO Namur Double Solenoid Valve 1/4" EXD 5 Way 2 Position ALV520F3
Our 5 way 2 position exd approved namur solenoid valve is suitable for hazardous areas where pneumatic actuators need a namur solenoid valve to operate. Can be adapted from 5/2 to 3/2 if needed however we recommend using the 5/2 configuration even for spring return actuators.
- Size 1/4" BSP
- Function 5 way 2 position double solenoid namur with manual override
- Valve Operation Servo Assisted
- Body Aluminium
- Seat NBR
- Pressure Range 1.5 to 8 BAR
- Media Air
Aluminium body 5 way 2 position differential namur solenoid/solenoid valve.G1/4" NBR seat, manual override. Aluminum coil enclosure. 240v 50Hz2-8 BAR pressure range, media temp -20°C to 80°C. Cv 1.1Ex d IIC T6 Gb IP66. M20x1.5 connection. -20 to+60deg.C
| Model | Voltage | Function | Port Size | Orrifice | Cv | Media Temp | Media Pressure |
|---|---|---|---|---|---|---|---|
| ALV520F3-C5-1 | 240v AC | Solenoid/Spring | 1/4" | 6mm | 1.1 | -25°C to 80°C | 2 to 8 BAR |
| ALV520F3-C5-2 | 110v AC | Solenoid/Spring | 1/4" | 6mm | 1.1 | -25°C to 80°C | 2 to 8 BAR |
| ALV520F3-C5-8 | 24v DC | Solenoid/Spring | 1/4" | 6mm | 1.1 | -25°C to 80°C | 2 to 8 BAR |
