GO Namur Solenoid Spring Valve 1/4" EXD 5 Way 2 Position In Line ALV510P2

SKU: ALV510P2

$314

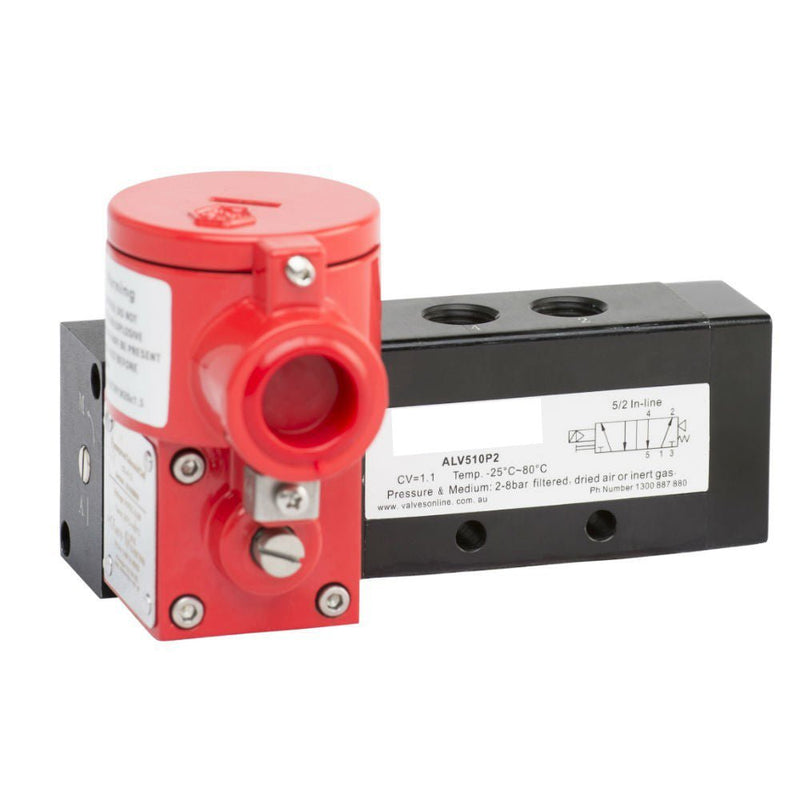

GO Namur Solenoid Spring Valve 1/4" EXD 5 Way 2 Position In Line ALV510P2

Our 5 way 2 position exd approved solenoid valve is suitable for hazardous areas where there is a need for a solenoid valve to operate.  Available in mono stable (solenoid/spring) and bi stable (solenoid/solenoid) configurations.

  • Size 1/4" BSP
  • Function 5 way 2 position solenoid/spring with manual override
  • Valve Operation Servo Assisted
  • Body Aluminium
  • Seat NBR
  • Pressure Range 1.5 to 8 BAR
  • Media Air

Aluminium body 5 way 2 position body ported solenoid/spring return valve.G1/4" NBR seat, manual override. Aluminium coil enclosure. 24v DC2-8 BAR pressure range, media temp -20°C to 80°C. Cv 1.1Ex d IIC T6 Gb IP66. M20x1.5 connection. -20 to+60deg.C IECEx

Model Voltage Function Port Size Orrifice Cv Media Temp Media Pressure
ALV510P2-C5-1 240v AC Solenoid/Spring 1/4" 6mm 1.1 -25°C to 80°C 2 to 8 BAR
ALV510P2-C5-2 110v AC Solenoid/Spring 1/4" 6mm 1.1 -25°C to 80°C 2 to 8 BAR
ALV510P2-C5-8 24v DC Solenoid/Spring 1/4" 6mm 1.1 -25°C to 80°C 2 to 8 BAR
