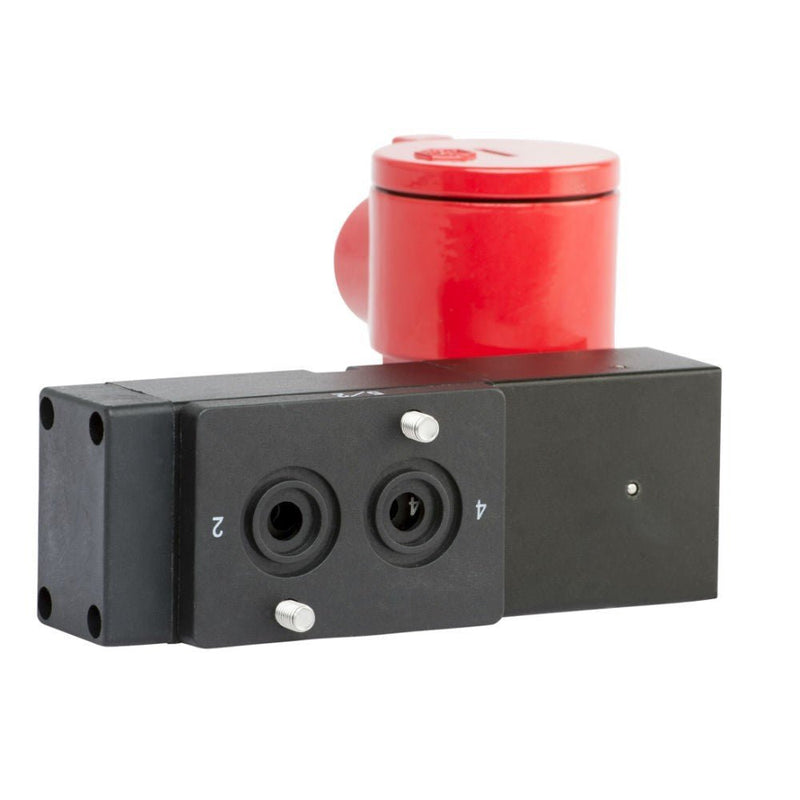

GO Namur Solenoid Spring Valve 1/4" EXD 5 Way 2 Position ALV510F3

$314.00


or make 4 interest-free payments of $78.50 AUD fortnightly with Afterpay More info

Maximum quantity available reached.

Product Description

GO Namur Solenoid Spring Valve 1/4" EXD 5 Way 2 Position ALV510F3

Our 5 way 2 position exd approved namur solenoid valve is suitable for hazardous areas where pneumatic actuators need a namur solenoid valve to operate. Can be adapted from 5/2 to 3/2 if needed however we recommend using the 5/2 configuration even for spring return actuators. Available in mono stable (solenoid/spring) and bi stable (solenoid/solenoid) configurations.

  • Size 1/4" BSP Only
  • Function 5 way 2 position solenoid/spring namur with manual override
  • Valve Operation Servo Assisted
  • Body Aluminium
  • Seat NBR
  • Pressure Range 1.5 to 8 BAR
  • Media Air

Aluminium body 5 way 2 position differential namur solenoid/spring return valve.G1/4" NBR seat, manual override. Aluminum coil enclosure. 24v DC2-8 BAR pressure range, media temp -20°C to 80°C. Cv 1.1Ex d IIC T6 Gb IP66. M20x1.5 connection. -20 to+60deg.C

Model Voltage Function Port Size Orrifice Cv Media Temp Media Pressure
ALV510F3-C5-1 240v AC Solenoid/Spring 1/4" 6mm 1.1 -25°C to 80°C 2 to 8 BAR
ALV510F3-C5-2 110v AC Solenoid/Spring 1/4" 6mm 1.1 -25°C to 80°C 2 to 8 BAR
ALV510F3-C5-8 24v DC Solenoid/Spring 1/4" 6mm 1.1 -25°C to 80°C 2 to 8 BAR
Sku: ALV510F3
