GO Pneumatic Nylon Tubing Metric NYL Range

SKU: NYL04-05

$6

GO Pneumatic Nylon Tubing Metric NYL Range

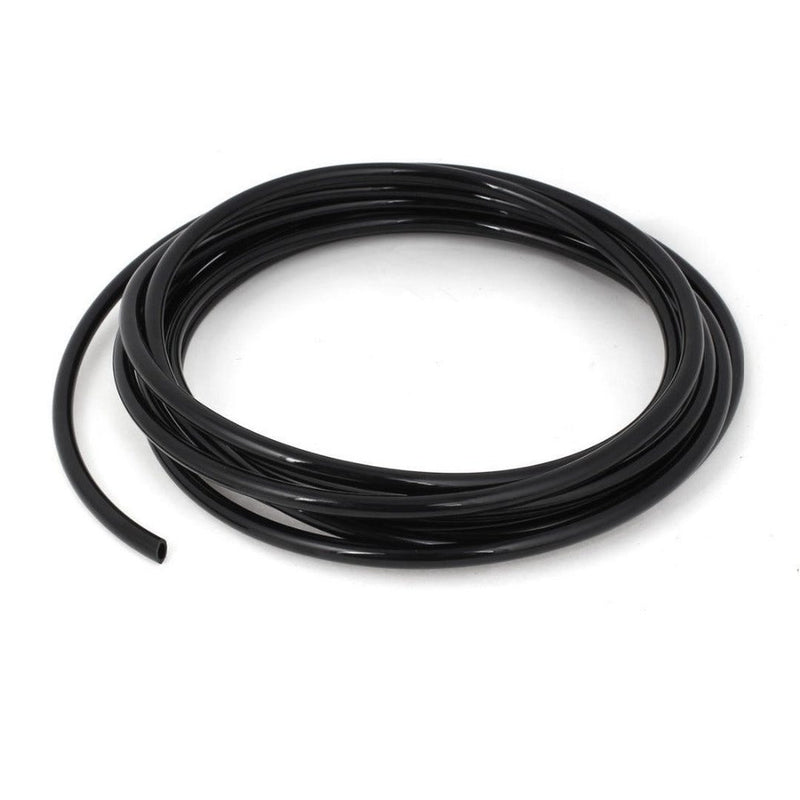

    Black Nylon Tubing great for running supply air lines or cabinetry work. 20 BAR (@ 20°C ) working pressure with a -10°C to 120°C temperature range. UV stabilised.

    • Size 4mm, 6mm, 8mm, 10mm1 12mm
    • Function UV Stabilised Nylon Air Line
    • Length 5m, 10m, 20m, 100m, 200m
    • Pressure Range 0 to 20 Bar
    • Media Air
    Outside Diameter (mm) Inside Diameter (mm) Wall Thickness (mm) Tensile Strength (kgf/cm²) Working Pressure (BAR) Bursting Pressure (BAR) Bending Radius (mm)
    4 2.5 .75 13 20 45 20
    6 4 1 34 20 53 40
    8 6 1 43 20 47 50
    10 7.5 1.25 70 20 46 65
    12 9 1.5 101 20 47 70
