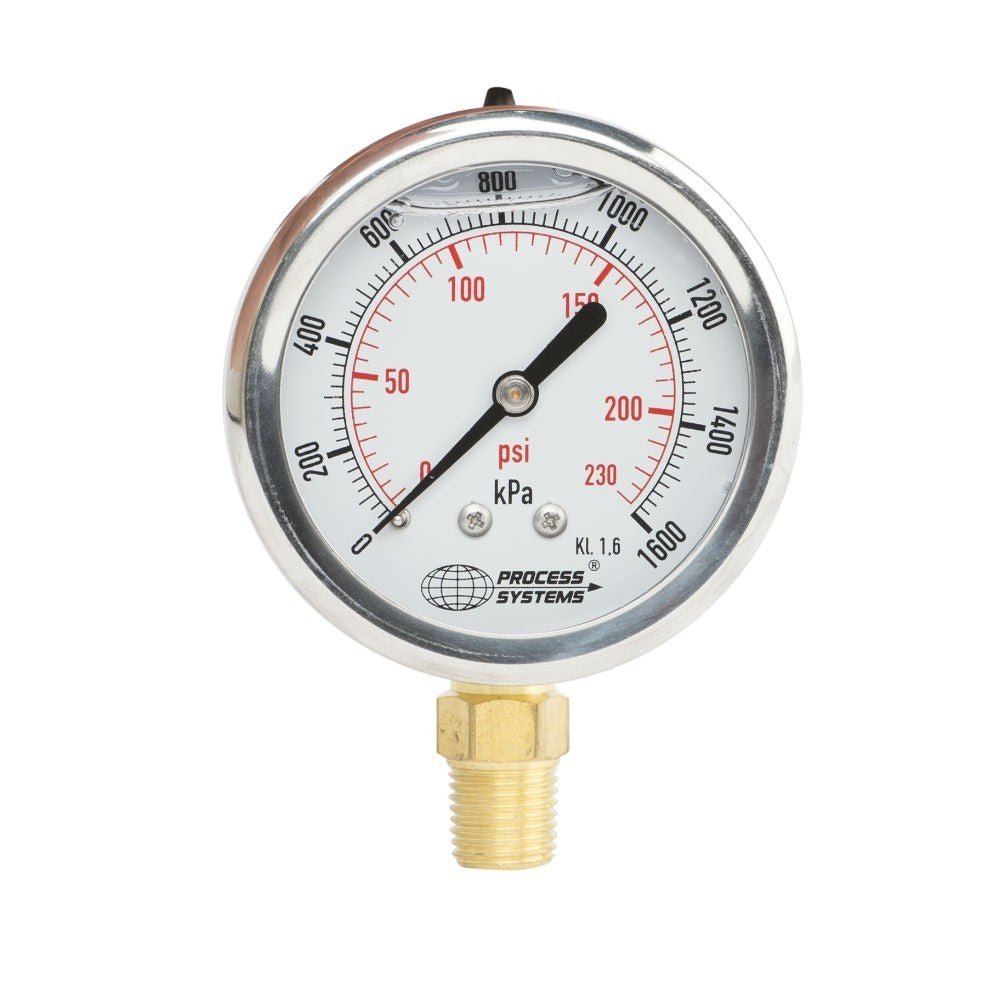

GO 1/4" BSP Bottom Entry 304 SS Case Pressure Gauges 100mm

Name: GO 1/4" BSP Bottom Entry 304 SS Case Pressure Gauges 100mm
Brand: Process Systems
SKU: GAU100B~-100
Price: 55.0 AUD
Availability: InStock

Overview

Stainless Steel Case 100mm glycerine filled pressure gauge with brass internals and entry. Crimped ring housing with polycarbonate window. Dual scale kpa/psi. Accuracy +-1.6% of full scale. Operating temp of -20°C to 60°C. For use on compatible gases and liquids.

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Read our complete warranty terms & conditions here.

All our online payment methods are secured.

Specifications

Pressure Range -100 kpa to 4000 kpa

Body Stainless Steel

Function Dual Scale Kpa/PSI glycerine filled pressure gauge

Connection 3/8" BSP Bottom Entry

Factory Accredited CE, ISO 9001, TUV

Model	Range
GAU100B~-100	-100 to 0 kpa vacuum
GAU100B~-100C	-100 to 1600 kpa
GAU100B~-100	0 to 100 kpa
GAU100B~200	0 to 200 kpa
GAU100B~400	0 to 400 kpa
GAU100B~1000	0 to 1000 kpa
GAU100B~1600	0 to 1600 kpa
GAU100B~2500	0 to 2500 kpa
GAU100B~4000	0 to 4000 kpa
Size	100mm (4")
Accuracy	+/- 1.6%
Range	Depends upon model
Work Pressure	3/4 of full scale
Fluctuating pressure	2/3 of full scale
Short Time Pressure	Full Scale
Operating Temperature	-10°C to 60°C
Media	Compatible gases and liquids
Housing	304 Stainless Steel Case and crimped ring
Window	Polycarbonate
Liquid Filled	Glycerine
Bourdon Tube	Copper alloy
Movement	Copper alloy
Connection	Brass
Thread	BSPT
Scale	Dual Scale Kpa/Psi
