GO 1/8" BSP Rear Entry 304 SS Case Pressure Gauge 40mm
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts

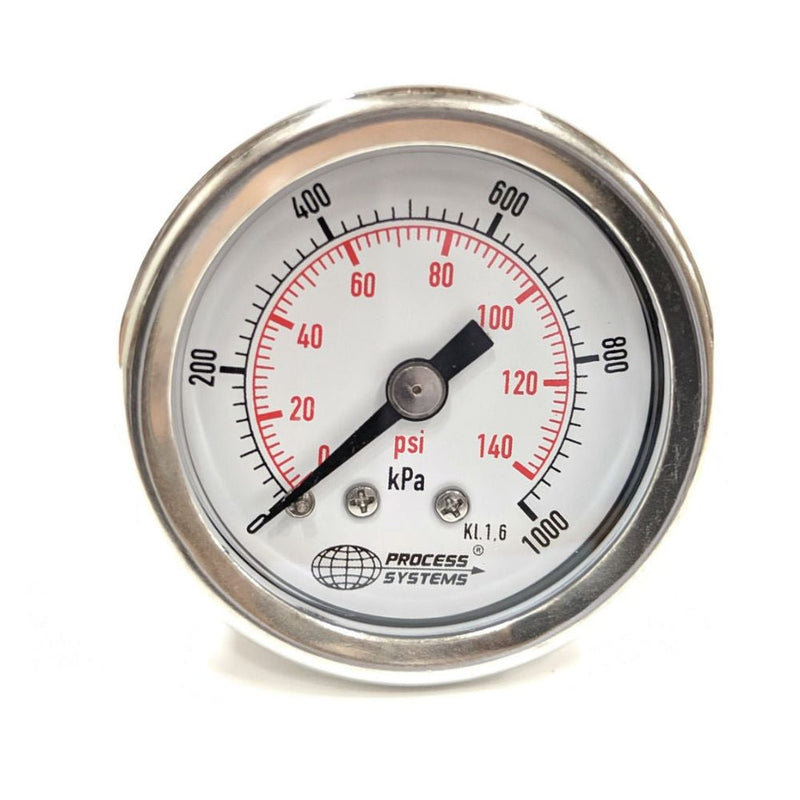

40mm 304 Stainless Steel Case glycerine filled rear entry pressure gauge with brass internals and entry. Crimped ring housing with polycarbonate window. Dual scale kpa/psi. Operating temperature of -10°C to 60°C. For use on compatible gases and liquids. All pressure gauges are calibrated and tested to ensure accuracy and reliability.
Specifications
| Size | 40mm (1 1/2") |
| Accuracy | +/- 1.6% |
| Range | Depends upon model |
| Work Pressure | 3/4 of full scale |
| Fluctuating pressure | 2/3 of full scale |
| Short Time Pressure | Full Scale |
| Operating Temperature | -10°C to 60°C |
| Media | Compatible gases and liquids |
| Housing | 304 Stainless Steel Case and crimped ring |
| Window | Polycarbonate |
| Liquid Filled | Glycerine |
| Bourdon Tube | Copper alloy |
| Movement | Copper alloy |
| Connection | Brass |
| Thread | BSPT |
| Scale | Dual Scale Kpa/Psi |
