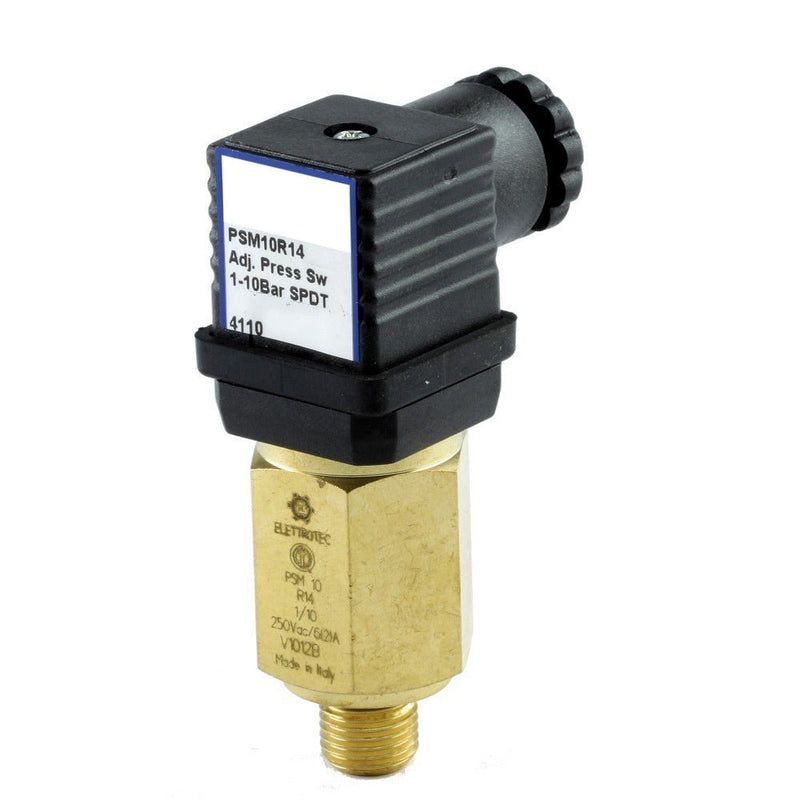

GO Pressure Switch Brass Body PSM Range

SKU: PSM2R14AP

GO Pressure Switch Brass Body PSM Range

Regular price $182.00 AUD
Sale price $182.00 AUD Regular price
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Pressure Range

Other payment options

The Basics

Adjustable pressure switch which are single pole double throw meaning they can be wired normally closed or normally open. Electrical connection is by an IP65 DIN plug (PG9) and port connection is a 1/4" BSP parallel thread with an o-ring gasket.



Typical uses include: pneumatic, hydraulic, lubrication and general industry.



Model Adjustment Range (BAR) Max Over Pressure (bar) Body Material Membrane Material Snubber Repeatability (BAR) Weight (grams)
PSM2R14 0.2 – 2 80 Brass NBR No ±0.2 100
PSM10R14 1-10 80 Brass NBR No ±0.4 100
PSM2R14APS 0.2-2 300 Pl. Steel NBR Yes ±0.2 100
PSM10R14APS 1-10 300 Pl. Steel NBR Yes ±0.4 100
PSM50R14S 10-50 300 Pl. Steel NBR Yes ±2 100
PSM100R14s 10-100 300 Pl. Steel NBR Yes ±3 100
  • Switching Range 0.2 to 100 BAR
  • Body Plated Steel or Brass
  • Function Single Pole Double Throw (SPDT)
  • Voltage Multi Voltage (0 to 240v AC/DC)
  • Current 6 amp resistive and 2 amp inductive
  • Factory Accredited CE, ISO 9001, TUV
