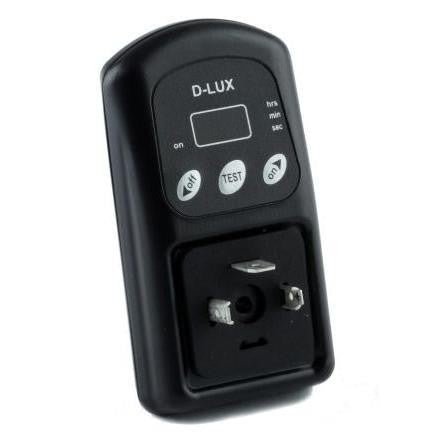

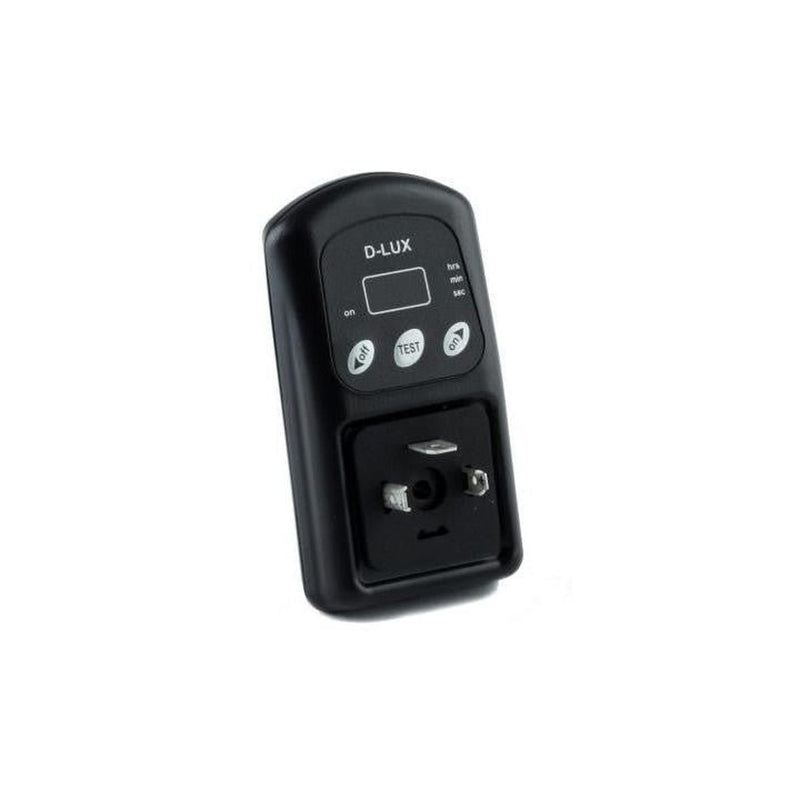

GO Solenoid Mounted Digital Timer EMD Range

SKU: EMD-12A

$198

GO Solenoid Mounted Digital Timer EMD Range

 OPERATORS MANUAL



Digital sandwich timer which fits between the DIN plug and coil on a solenoid valve. With a broad range of functions (see below) and programable from 0.01 seconds to 99 hours it fits a wide range of uses. Easy to use with a maximum of 1 Amp current.

  • Function Digital Sandwich Timer
  • Operation 0.01 seconds to 99 hours programable
  • Max Current 1 Amp
  • Voltage 10v to 240v AC/DC
  • Functions 6
Supply Voltage EMD-12B = 10~48v AC/DC
EMD-12A = 110~240v AC/DC
Interval Time 0.01 seconds to 99 hours
Discharge Time 0.01 seconds to 99 hours
Current consumption 7 milli Amps
Case Material ABS plastic FR grade
Connection DIN 43650-A, ISO 4400
Indicators Digital Display
Environmental Protection IP65
Certifications CE, cULus, RoHS



Function Number Function
A Start with ON time and then OFF time, etc.
C Start with OFF time and then ON time, etc.
B Single shot, starts with ON time and then switches OFF indefinite
D Single shot, starts with OFF time and then switches ON indefinite
E Start with OFF time then ON time and then switches OFF indefinite
F Start with ON time then OFF time and then switches ON indefinite



NOTE - Is factory Set to function A.
