Built for the work it does.

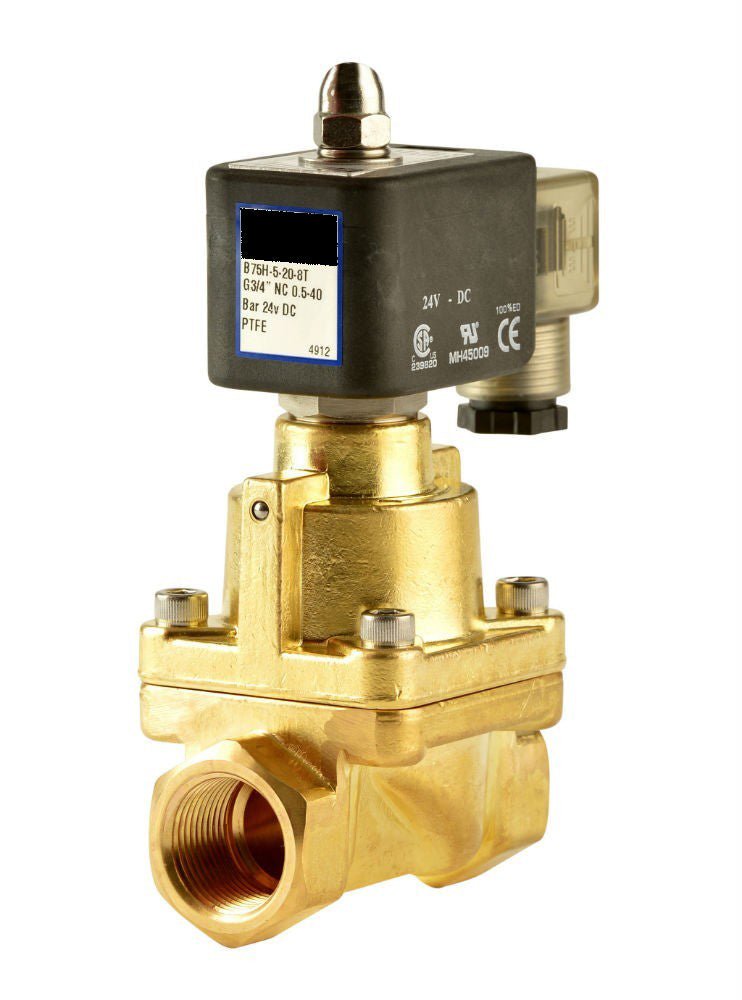

A high flow and high pressure (to 80 Bar) piston type differential solenoid valve. Brass forged body with Teflon seats applicable for air and fluid up to 50 centistoke viscosity. Comes with 100% duty rated encapsulated coil (grade H insulation) and LED din plug (IP65).
Specifications
Brass 2 way 2 position normally closed differential solenoid valve.G1/2", 15mm orifice, 304 SS operator, copper shading ring, PTFE seat.0.5-80 BAR pressure range, media temp -10°C to 120°C.Coil Class H insulation, 17.5 Watts, IP65 protection.

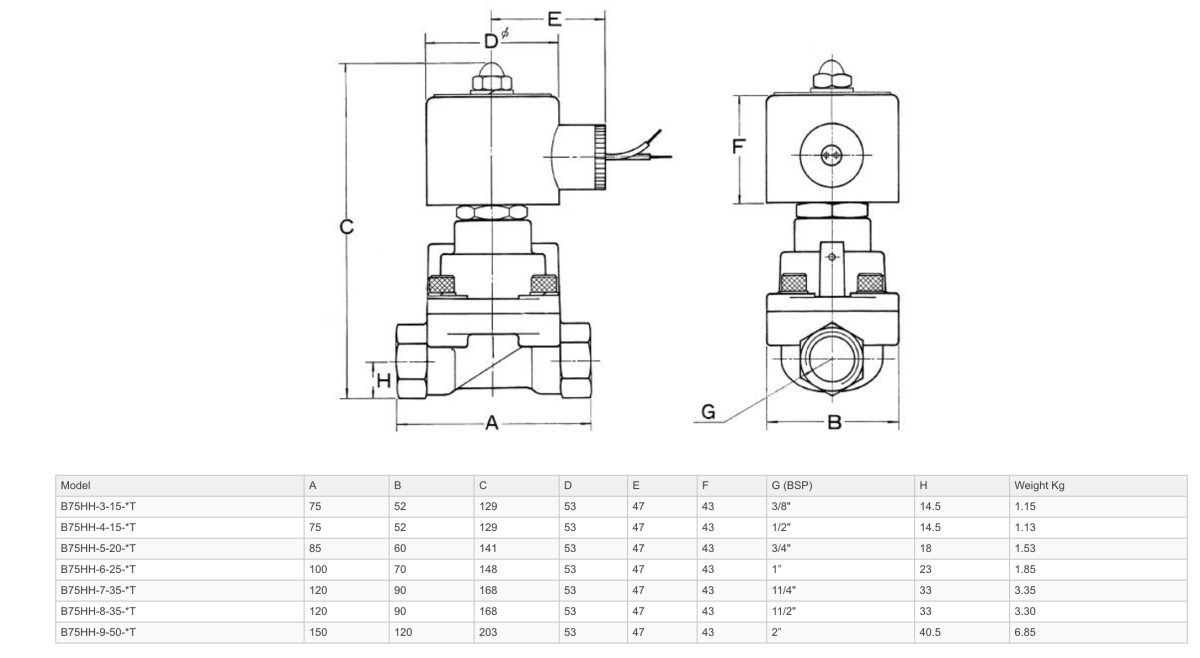

| Model | Port Size (BSP) | Orifice ømm | CV | Pressure (BAR) | Media Temperature | Repair Kit | Coil Specifications |
|---|---|---|---|---|---|---|---|
| B75HH-3-15-*T | 3/8 | 15 | 4.5 | 0.5 to 80 | -10°C to 120°C | RK-B75HH-4-T | SC-C2 24.4 Volt Amps 18 Watts Class F Insulation 100% ED |
| B75HH-4-15-*T | 1/2 | 15 | 4.5 | 0.5 to 80 | -10°C to 120°C | RK-B75HH-4-T | |
| B75HH-5-20-*T | 3/4 | 20 | 9.3 | 0.5 to 80 | -10°C to 120°C | RK-B75HH-5-T | |
| B75HH-6-25-*T | 1 | 25 | 13.2 | 0.5 to 80 | -10°C to 120°C | RK-B75HH-6-T | |
| B75HH-7-35-*T | 1 ¼ | 35 | 26 | 0.5 to 80 | -10°C to 120°C | RK-B75HH-8-T | |
| B75HH-8-35-*T | 1 ½ | 35 | 26 | 0.5 to 80 | -10°C to 120°C | RK-B75HH-8-T | |
| B75HH-9-50-*T | 2 | 50 | 48 | 0.5 to 80 | -10°C to 120°C | RK-B75HH-9-T |
