GO 12v DC 18 W with DIN Plug Solenoid Valve Coil 16.1mm

SKU: SC-C2

GO 12v DC 18 W with DIN Plug Solenoid Valve Coil 16.1mm

$72.00 AUD
$72.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Other payment options

View full details
GO 12v DC 18 W with DIN Plug Solenoid Valve Coil 16.1mm - GO Industrial - SC - C2

GO 12v DC 18 W with DIN Plug Solenoid Valve Coil 16.1mm

$72.00 AUD
$72.00 AUD
Save $0
Sold out

GO 12v DC 18 W with DIN Plug Solenoid Valve Coil 16.1mm

Overview

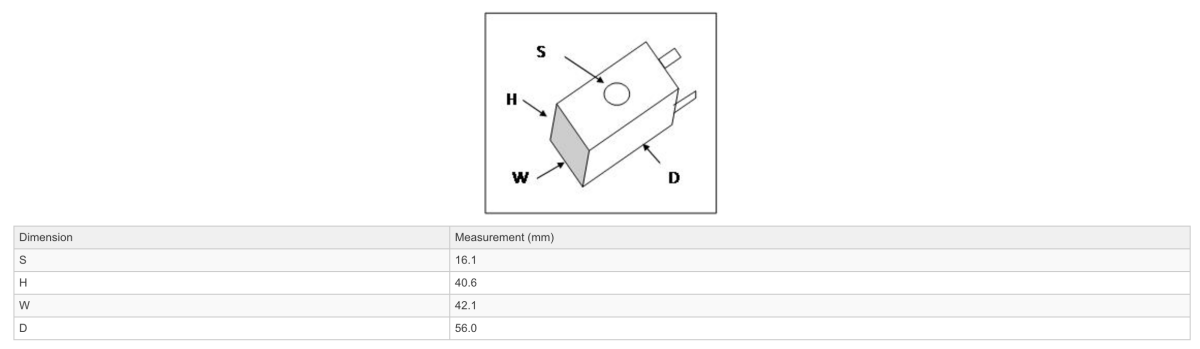

Coil & Din Plug to suit B55/S55-3-4~9-50, B55/S55-2-1.2~2-5H,B75/S754-15~9-50,B76-4-15~9-50, B75H & B75HH.17.5 Watts Insulation Class F DIN 43650-A IP65.56mm Long, 42.1mm Wide, 40.6mm High, 16.1mm whole centre.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

Specifications

Solenoid Coil and DIN Plug to suit 16.1mm operator. It can suit any brand solenoid valve as long as it complies to the specs of this coil, our modelsare listed below.

  • Operator Size 16.1mm
  • Watts 24.4
  • Volt Amps 18
  • Voltage All
  • Insulation Class H
  • Rating IP65
    • Valve Series Description
    B55 Brass 2/2 Zero Differential Normally Closed
    S55 316 Stainless Steel 2/2 Differential Normally Closed
    B75 Brass 2/2 Differential Normally Closed
    B76 Brass 2/2 Differential Normally Open
    S75 304 Stainless Steel 2/2 Differential Normally Closed
    B75H Brass High Pressure 2/2 Differential Normally Closed
    B75HH Brass Very High Pressure 2/2 Differential Normally Closed
    B55H Brass High Pressure 2/2 Direct Acting Normally Closed
    S55H 316 Stainless Steel High Pressure 2/2 Direct Acting Normally Closed
    B56 Brass 2/2 Direct Acting Normally Open
