GO Solenoid Valve 1/2" to 2" S36 Stainless General Purpose Normally Open Range

SKU: S36-4-14

$149

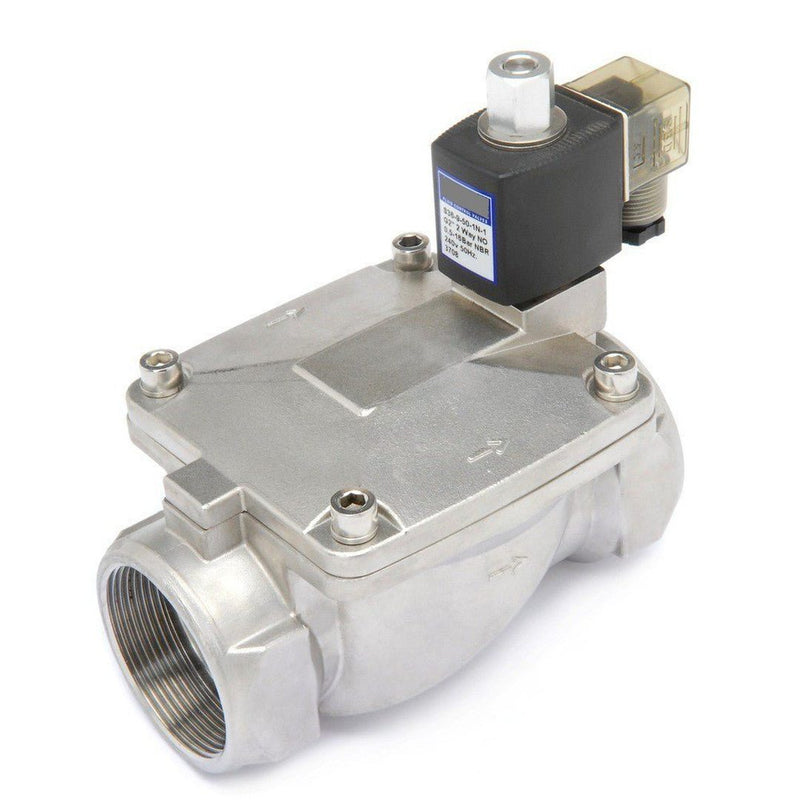

GO Solenoid Valve 1/2" to 2" S36 Stainless General Purpose Normally Open Range

This 304 Stainless Steel normally open (power to close) differential solenoid valve is suitable for non aggressive media up to 40 centistoke viscosity.

Typically used for air, water, mechanical services, irrigation and general industry or any application downstream of a pump or compressor (or mains).

Comes with EPDM seat and seals and is continuously rated (100% ED). Soft close anti water hammer design.

  • Size 1/2" to 2" BSP
  • Function Normally Open (power to close)
  • Valve Operation Servo Assisted
  • Body 304 Stainless Steel
  • Seat EPDM
  • Pressure Range 0.3 to 16 BAR
  • Media Non aggressive media

            304 S.S 2 way 2 position normally open differential solenoid valve.G3/4", 20mm orifice, 304 SS operator, copper shading ring, EPDM seat.0.25-16 BAR pressure range, media temp -10°C to 90°C.Coil Class H insulation, 15 Watts, IP65 protection.

            Model Port Size (BSP) Orifice ømm CV Media Pressure Media Temperature Coil Specifications
            S36-4-14-*N 1/2 14 5 0.25 to 16 BAR -10°C to 90°C SC-N12
            11 Volt Amps
            15 Watts
            Class H Insulation
            100% ED
            S36-5-20-*N 3/4 20 10 0.25 to 16 BAR -10°C to 90°C
            S36-6-25-*N 1 25 11 0.25 to 16 BAR -10°C to 90°C
            S36-7-40-*N 1 ¼ 40 28 0.7 to 16 BAR -10°C to 90°C SC-N14
            20 Volt Amps
            21 Watts
            Class H Insulation
            100% ED
            S36-8-40-*N 1 ½ 40 34 0.7 to 16 BAR -10°C to 90°C
            S36-9-50-*N 2 50 50 0.7 to 16 BAR -10°C to 90°C
