Details

Typical Applications include high pressure irrigation, laundry equipment, hospitals, steam curing beds, boilers & general industry.

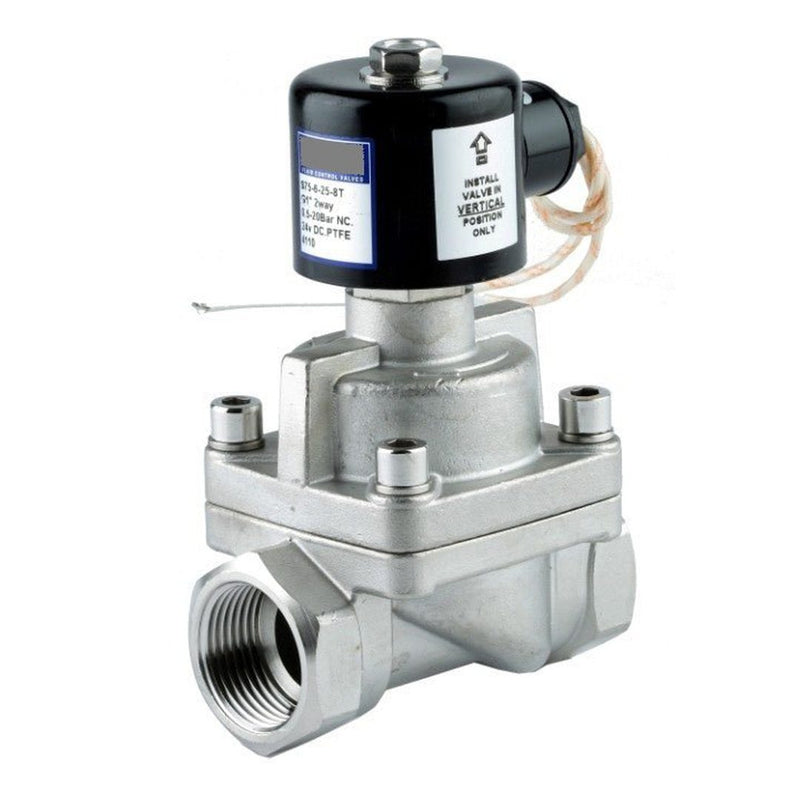

GO S75 304 Stainless Steam and High Temp Normally Closed Solenoid Valves

Name: GO S75 304 Stainless Steam and High Temp Normally Closed Solenoid Valves
Brand: Process Systems
SKU: S75-4-15
Price: 358.0 AUD
Availability: InStock

Overview

A high flow / high pressure (up to 20 BAR) normally closed (power to open) piston type valve with a 304 Stainless Steel body and Teflon seats. Mainly used as a steam valve as it will do up to 180 degrees Celsius (steam at 10 BAR) with either a flying lead or DIN plug coil. Will handle fluids up to 50 centistoke viscosity.

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Read our complete warranty terms & conditions here.

All our online payment methods are secured.

Specifications

304 S.S 2 way 2 position normally closed differential solenoid valve.G3/8", 15mm orifice, 304 SS operator, copper shading ring, PTFE seat.0.5-20 BAR pressure range, media temp -10°C to 180°C.Coil Class H insulation, 17.5 Watts, IP65 protection.

Size 3/8" to 2" BSP

Function Normally Closed (power to open)

Valve Operation Servo Assisted

Body 304 Stainless Steel

Seat PTFE

Pressure Range 0.5 to 10 BAR

Media Steam

Model	Port Size (BSP)	Orifice ømm	CV	Pressure (BAR)	Media Temperature	Coil Specifications
S75-3-15-*T	3/8	15	4.5	0.5 to 20	-10°C to 180°C	SC-C2 DIN Plug 28 Watts 24 Volt Amps 100% ED Class H Insulation IP65
S75-4-15-*T	1/2	15	4.5	0.5 to 20	-10°C to 180°C
S75-5-20-*T	3/4	20	9.3	0.5 to 20	-10°C to 180°C
S75-6-25-*T	1	25	13.2	0.5 to 20	-10°C to 180°C
S75-7-35-*T	1 ¼	35	26	0.5 to 20	-10°C to 180°C
S75-8-35-*T	1 ½	35	26	0.5 to 20	-10°C to 180°C
S75-9-50-*T	2	50	48	0.5 to 20	-10°C to 180°C
S75-3-15-*TF	3/8	15	4.5	0.5 to 20	-10°C to 180°C	SC-H2 Flying Leads 25 watts 33 Volt Amps 100% ED Class H Insulation IP54
S75-4-15-*TF	1/2	15	4.5	0.5 to 20	-10°C to 180°C
S75-5-20-*TF	3/4	20	9.3	0.5 to 20	-10°C to 180°C
S75-6-25-*TF	1	25	13.2	0.5 to 20	-10°C to 180°C
S75-7-35-*TF	1 ¼	35	26	0.5 to 20	-10°C to 180°C
S75-8-35-*TF	1 ½	35	26	0.5 to 20	-10°C to 180°C
S75-9-50-*TF	2	50	48	0.5 to 20	-10°C to 180°C
