Details

Comes with IP65 weather proof LED illuminated din plug and coil. Has a low pressure differential required making it suitable for applications such as rain water switch over and has a soft close design. Watermark Approval Licence Number WMK 26321 approved to WMTS 030:2016 - Solenoid Valves.

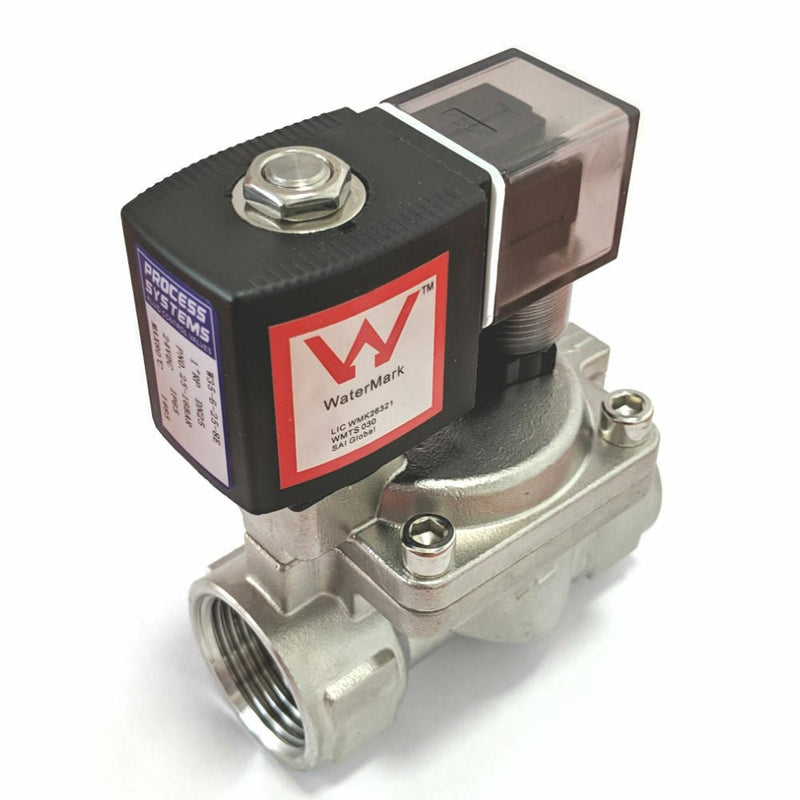

GO W35 Watermark Approved 316 Stainless General Purpose Normally Closed Solenoid Valves

Name: GO W35 Watermark Approved 316 Stainless General Purpose Normally Closed Solenoid Valves
Brand: Process Systems
SKU: W35-4-14-7E
Price: 154.0 AUD
Availability: InStock

Overview

A 316 Stainless Steel Normally Closed (power to open) Watermark approved solenoid valve. Great for potable water or any application where watermark approval is required (mains water in Australia).

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Read our complete warranty terms & conditions here.

All our online payment methods are secured.

GO W35 Solenoid Valve Data Sheet

Specifications

Size: 1/2" to 2" BSP

Function: Normally Closed (power to open)

Valve Operation: Servo Assisted

Body: 316 Stainless Steel

Seat: EPDM

Pressure Range: 0.25 to 16 BAR

Media: Potable Water

Model	Port Size (BSP)	Orifice ømm	CV	Pressure (BAR)	Media Temp
W35-4-14-*E	1/2	14	5	0.25 to 16 BAR	-10°C to 80°C
W35-5-20-*E	3/4	20	10	0.25 to 16 BAR	-10°C to 80°C
W35-6-25-*E	1	25	11	0.25 to 16 BAR	-10°C to 80°C
W35-7-40-*E	1 ¼	40	28	0.7 to 16 BAR	-10°C to 80°C
W35-8-40-*E	1 ½	40	34	0.7 to 16 BAR	-10°C to 80°C
W35-9-50-*E	2	50	50	0.7 to 16 BAR	-10°C to 80°C
