GO Solenoid Valve 1/2
Dimensions - GO Solenoid Valve 1/2
  • GO Solenoid Valve 1/2" to 2" WS35 Watermark Approved Stainless General Purpose Normally Closed Range
  • Dimensions - GO Solenoid Valve 1/2" to 2" WS35 Watermark Approved Stainless General Purpose Normally Closed Range
1 3

GO WS35 Watermark Approved Stainless General Purpose Normally Closed Solenoid Valves

SKU: WS35-4-14

GO WS35 Watermark Approved Stainless General Purpose Normally Closed Solenoid Valves

$138.00 AUD
$138.00 AUD
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Size
Orifice

Other payment options

GO WS35 Watermark Approved Stainless General Purpose Normally Closed Solenoid Valves

Overview

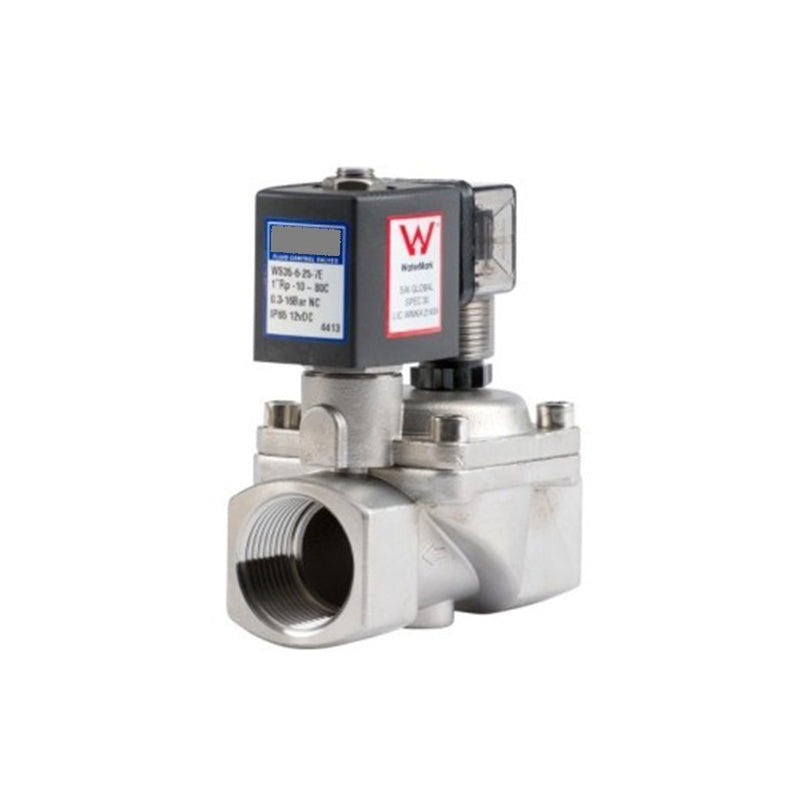

A 304 Stainless Steel Normally Closed (power to open) Watermark approved solenoid valve. Great for potable water or any application where watermark approval is required (mains water in Australia).

Details

Comes with IP65 weather proof LED illuminated din plug and coil. Has a low pressure differential required making it suitable for applications such as rain water switch over and has a soft close design. Watermark Approval Licence Number WMKA 21409.

Specifications

304SS 2 way 2 position normally closed Watermark solenoid valve.1/2", 14mm orifice, 304 SS operator, copper shading ring, EPDM seat.0.25-16 BAR pressure range, media temp -10°C to 80°C.Coil Class H insulation c/w LED connector plug, 11 Volt Amps, IP65 pro

  • Size 1/2" to 2" BSP
  • Function Normally Closed (power to open)
  • Valve Operation Servo Assisted
  • Body 304 Stainless Steel
  • Seat EPDM
  • Pressure Range 0.25 to 16 BAR
  • Media Potable Water
              • Model Port Size (BSP) Orifice ømm CV Pressure (BAR) Media Temp Coil Specifications
              WS35-4-14-*E 1/2 14 5 0.25 to 16 BAR -10°C to 90°C SC-N12
              11 Volt Amps
              15 Watts
              Class H Insulation
              100% ED
              WS35-5-20-*E 3/4 20 10 0.25 to 16 BAR -10°C to 90°C
              WS35-6-25-*E 1 25 11 0.25 to 16 BAR -10°C to 90°C
              WS35-7-40-*E 1 ¼ 40 28 0.7 to 16 BAR -10°C to 90°C
              WS35-8-40-*E 1 ½ 40 34 0.7 to 16 BAR -10°C to 90°C
              WS35-9-50-*E 2 50 50 0.7 to 16 BAR -10°C to 90°C



                  pagination here

                Shipping & Returns

                Add text about your shipping policy

                Shipping & Returns

                Add text about your shipping policy

                Warranty

                Add text about your product warranty

                Warranty

                Add text about your product warranty

                Secure Payment

                Add text about your payment

                Secure Payment

                Add text about your payment

                View full details
                GO Solenoid Valve 1/2

                GO WS35 Watermark Approved Stainless General Purpose Normally Closed Solenoid Valves

                From $138.00 AUD
                From $138.00 AUD

                Details

                Comes with IP65 weather proof LED illuminated din plug and coil. Has a low pressure differential required making it suitable for applications such as rain water switch over and has a soft close design. Watermark Approval Licence Number WMKA 21409.

                GO WS35 Watermark Approved Stainless General Purpose Normally Closed Solenoid Valves

                Overview



                A 304 Stainless Steel Normally Closed (power to open) Watermark approved solenoid valve. Great for potable water or any application where watermark approval is required (mains water in Australia).

                Shipping & Returns

                Our network of warehouses Australia-wide enables us to
                deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

                All returns must be pre-approved to ensure replacement and / or refund.

                Shipping & Returns

                Our network of warehouses Australia-wide enables us to
                deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

                All returns must be pre-approved to ensure replacement and / or refund.

                Warranty

                Read our complete warranty terms & conditions here.

                Warranty

                Read our complete warranty terms & conditions here.

                Secure Payment

                All our online payment methods are secured.

                Secure Payment

                All our online payment methods are secured.

                Specifications

                304SS 2 way 2 position normally closed Watermark solenoid valve.1/2", 14mm orifice, 304 SS operator, copper shading ring, EPDM seat.0.25-16 BAR pressure range, media temp -10°C to 80°C.Coil Class H insulation c/w LED connector plug, 11 Volt Amps, IP65 pro

              • Size 1/2" to 2" BSP
              • Function Normally Closed (power to open)
              • Valve Operation Servo Assisted
              • Body 304 Stainless Steel
              • Seat EPDM
              • Pressure Range 0.25 to 16 BAR
              • Media Potable Water
                          • Model Port Size (BSP) Orifice ømm CV Pressure (BAR) Media Temp Coil Specifications
                          WS35-4-14-*E 1/2 14 5 0.25 to 16 BAR -10°C to 90°C SC-N12
                          11 Volt Amps
                          15 Watts
                          Class H Insulation
                          100% ED
                          WS35-5-20-*E 3/4 20 10 0.25 to 16 BAR -10°C to 90°C
                          WS35-6-25-*E 1 25 11 0.25 to 16 BAR -10°C to 90°C
                          WS35-7-40-*E 1 ¼ 40 28 0.7 to 16 BAR -10°C to 90°C
                          WS35-8-40-*E 1 ½ 40 34 0.7 to 16 BAR -10°C to 90°C
                          WS35-9-50-*E 2 50 50 0.7 to 16 BAR -10°C to 90°C
