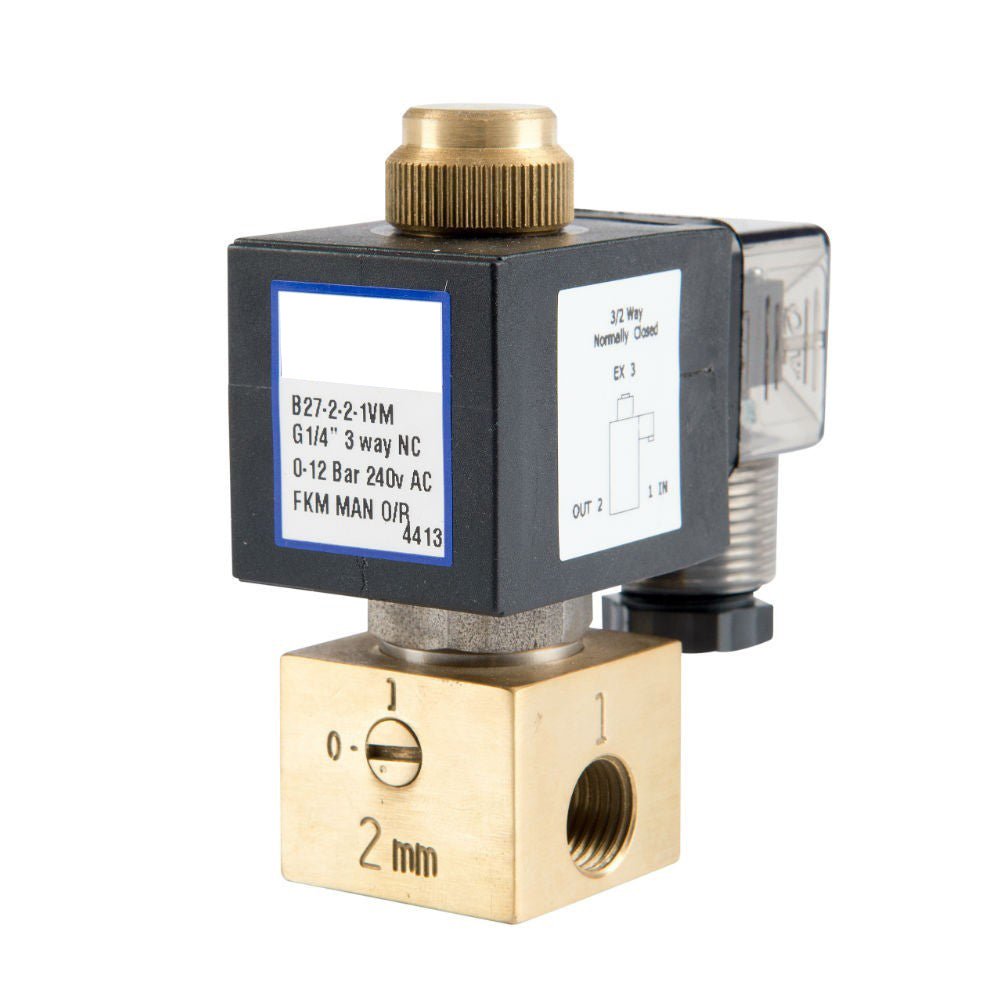

GO Solenoid Valve 1/4" B27 Brass 3 Way 2 Position Direct Acting Normally Closed

SKU: B27-2-2

$132

GO Solenoid Valve 1/4" B27 Brass 3 Way 2 Position Direct Acting Normally Closed

¼” ported 3 Brass normally closed (power to open) direct acting solenoid valve with a nylon encapsulated coil. Standard with manual override and LED connector plug (IP65).

Typical applications include pilot valve for air and fluid as well as vacuum applications.

  • Size 1/4" BSP only
  • Function 3 way normally Closed (power to open)
  • Valve Operation Direct Acting
  • Body Brass
  • Seat FKM
  • Pressure Range 0 to 12 BAR
  • Media Nonagressive media

    Brass 3 way 2 position normally closed direct acting solenoid valve.G1/4", 2mm orifice, 304 SS operator, copper shading ring, FKM seat, man o/ride.0-12 BAR pressure range, vacuum 27"Hg, media temp -10°C to 100°C.Coil Class F insulation, 10 Watts, IP65 protection

    Model Port Size Orifice ømm CV Media Pressure Media Temperature Weight Kg Coil Specifications
    B27-2-2-*VM ¼” BSP 2 0.1 0 to 12 BAR -10°Ct o 100°C 0.5 SC-A2
    10 Volt Amps
    10 Watts
    Class F Insulation
    100% ED
