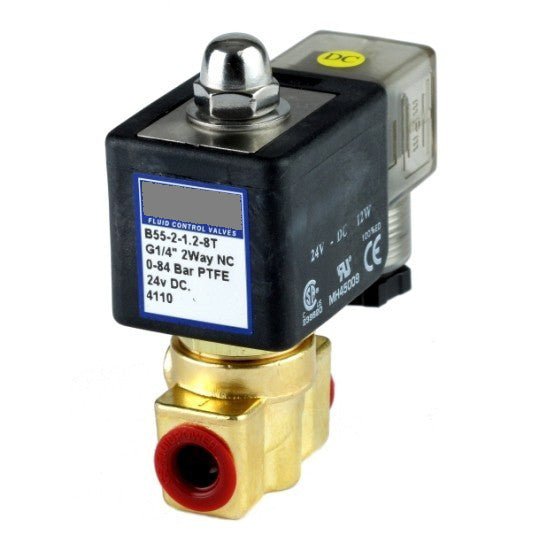

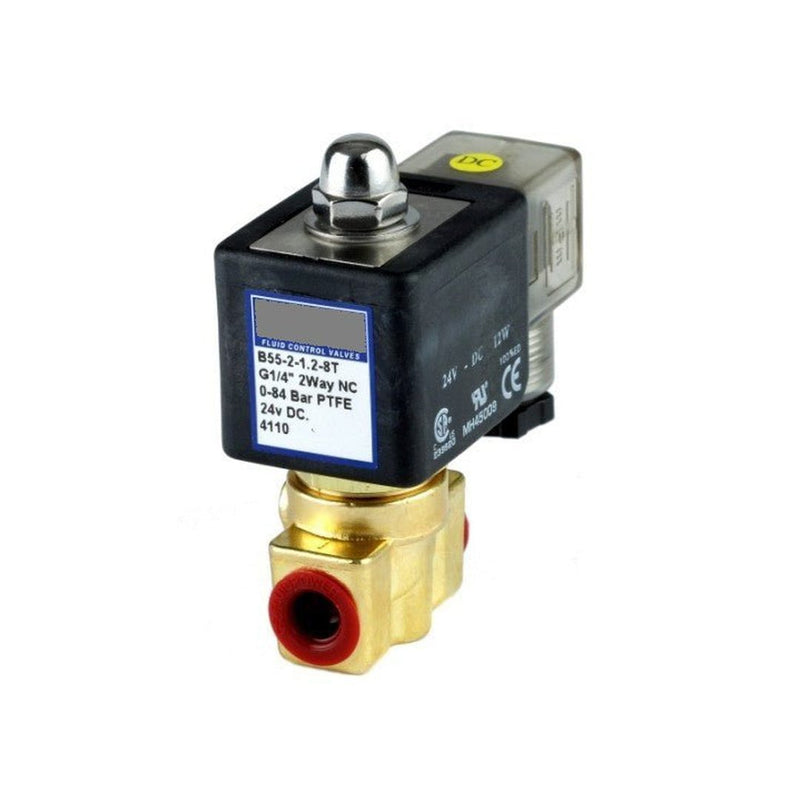

GO Solenoid Valve 1/4" B55H Brass High Pressure Normally Closed Range

SKU: B55H-2-1.2

$182

GO Solenoid Valve 1/4" B55H Brass High Pressure Normally Closed Range

A high pressure direct acting two way valve in 1/4" only. Forged brass body with teflon or viton seats depending upon the orifice size. Choice of DIN plug or Flying Leads coil (please refer to pressure table below to decide).

Great for applications where a high pressure media is present such as hydraulics, blow moulding or other industrial uses.

  • Size 1/4" BSP only
  • Function Normally Closed (power to open)
  • Valve Operation Direct Acting
  • Body Forged Brass
  • Seat FKM
  • Pressure Range 0 to 120 BAR
  • Media Petrochemical

      Brass 2 way 2 position normally closed direct acting solenoid valve.G1/4", 1.6mm orifice, 304 SS operator, copper shading ring, PTFE seat.0-42 BAR pressure range, vacuum 27"Hg, media temp -10°C to 120°C.Coil Class H insulation, 17.5 Watts, IP65 protection

      Model Port Size BSP Orifice ømm CV Pressure (BAR) Media Temperature Coil Specifications
      AC DC
      B55H-2-1.2-*T 1/4 1.2 0.07 0 ~ 120 0 ~ 84 -10°C to 120°C

      SC-C2-*
      24.4 Volt Amps
      18 Watts
      Class H Insulation
      100% ED
      DIN Plug

      B55H-2-1.6-*T 1/4 1.6 0.09 0 ~ 60 0 ~ 42 -10°C to 120°C
      B55H-2-2-*T 1/4 2 0.11 0 ~ 30 0 ~ 21 -10°C to 120°C
      B55H-2-3-*T 1/4 3 0.26 0 ~ 20 0 ~ 14 -10°C to 120°C
      B55H-2-4-*V 1/4 4 0.58 0 ~ 12 0 ~ 8 -10°C to 120°C
      B55H-2-5-*V 1/4 5 0.64 0 ~ 10 0 ~ 7 -10°C to 120°C
      B55H-2-1.2-*TF 1/4 1.2 0.07 0 ~ 150 0 ~ 105 -10°C to 120°C SC-C3F-*
      55 Volt Amps
      18 Watts
      Class H Insulation
      100% ED
      Flying Lead
      B55H-2-1.6-*TF 1/4 1.6 0.09 0 ~ 80 0 ~ 56 -10°C to 120°C
      B55H-2-2-*TF 1/4 2 0.11 0 ~ 60 0 ~ 42 -10°C to 120°C
      B55H-2-3-*TF 1/4 3 0.26 0 ~ 40 0 ~ 28 -10°C to 120°C
      B55H-2-4-*VF 1/4 4 0.58 0 ~ 20 0 ~ 14 -10°C to 120°C
      B55H-2-5-*VF 1/4 5 0.64 0 ~ 15 0 ~ 10 -10°C to 120°C

      F denominates Flying Lead Coil (instead of DIN plug).
