GO Solenoid Valve 1/4

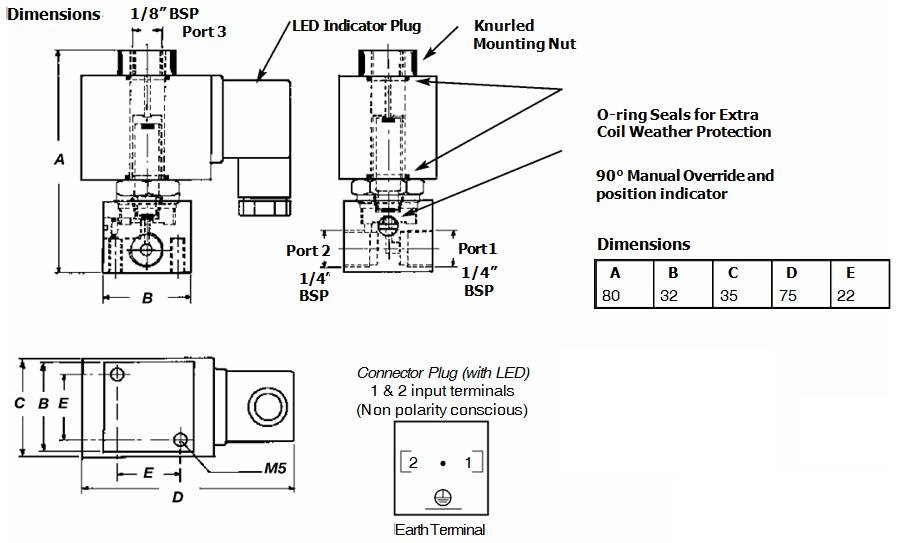

Dimensions - GO Solenoid Valve 1/4
  • GO Solenoid Valve 1/4" S27 304 Stainless 3 Way 2 Position Direct Acting Normally Closed
  • Dimensions - GO Solenoid Valve 1/4" S27 304 Stainless 3 Way 2 Position Direct Acting Normally Closed
1 3

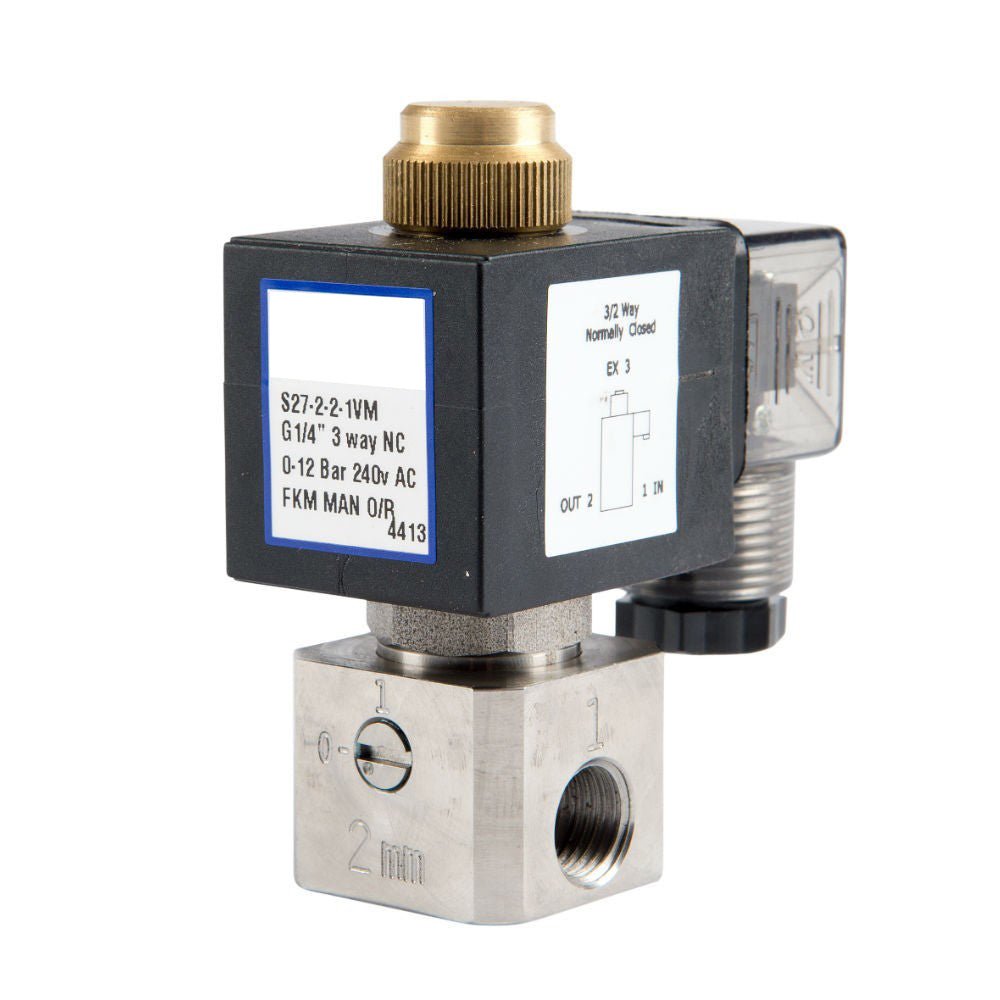

GO 1/4" S27 304 Stainless 3 Way 2 Position Direct Acting Normally Closed Solenoid Valve

SKU: S27-2-1.2

GO 1/4" S27 304 Stainless 3 Way 2 Position Direct Acting Normally Closed Solenoid Valve

$154.00 AUD
$154.00 AUD
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Other payment options

GO 1/4" S27 304 Stainless 3 Way 2 Position Direct Acting Normally Closed Solenoid Valve

Overview

1/4” ported 3 way 304 Stainless Steel normally closed (power to open) direct acting solenoid valve with a nylon encapsulated coil. Standard with manual override and LED connector plug (IP65).

Typical applications include pilot valve for air and fluid as well as vacuum applications.

Specifications

304 S.S 3 way 2 position normally closed direct acting solenoid valve.G1/4", 1.2mm orifice, 304 SS operator, FKM seat, man o/ride.0-16 BAR pressure range, media temp -10°C to 100°C.Coil Class F insulation, 15 Watts, IP65 protection.

  • Size 1/4" BSP only
  • Function 3 way normally Closed (power to open)
  • Valve Operation Direct Acting
  • Body 304 Stainless Steel
  • Seat FKM
  • Pressure Range 0 to 12 BAR
  • Media Non-Agressive media
    Model Port Size Orifice ømm CV Media Pressure Media Temperature Weight Kg Coil Specifications
    S27-2-1.2-*VM ¼” BSP 1.2 0.1 0 to 16 BAR -10°Ct o 100°C 0.5 SC-A2
    10 Volt Amps
    10 Watts
    Class F Insulation
    100% ED
