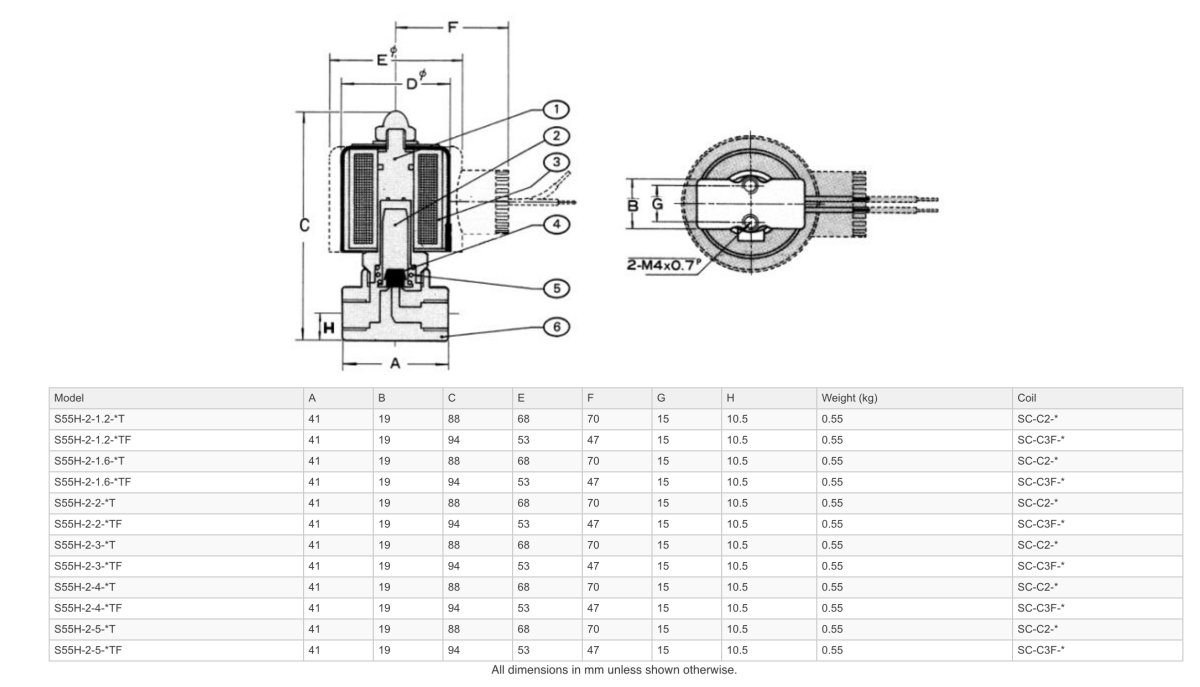

Dimensions - GO Solenoid Valve 1/4

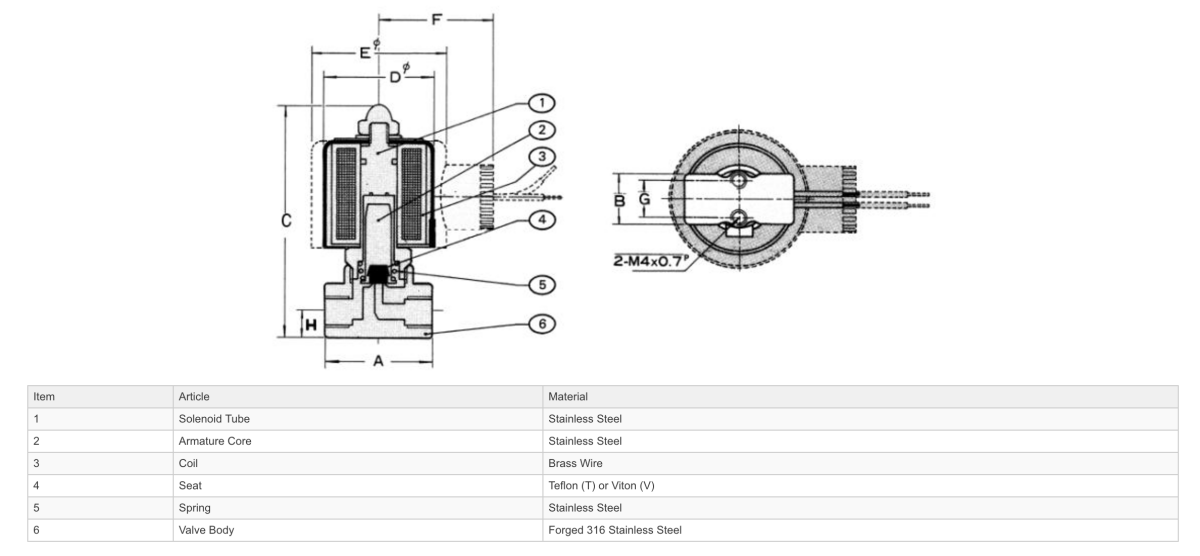

Construction - GO Solenoid Valve 1/4
  • GO Solenoid Valve 1/4" S55H 316 Stainless High Pressure Normally Closed Range
  • Dimensions - GO Solenoid Valve 1/4" S55H 316 Stainless High Pressure Normally Closed Range
  • Construction - GO Solenoid Valve 1/4" S55H 316 Stainless High Pressure Normally Closed Range
1 4

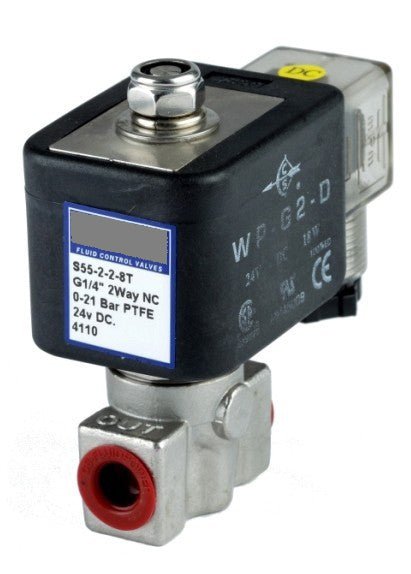

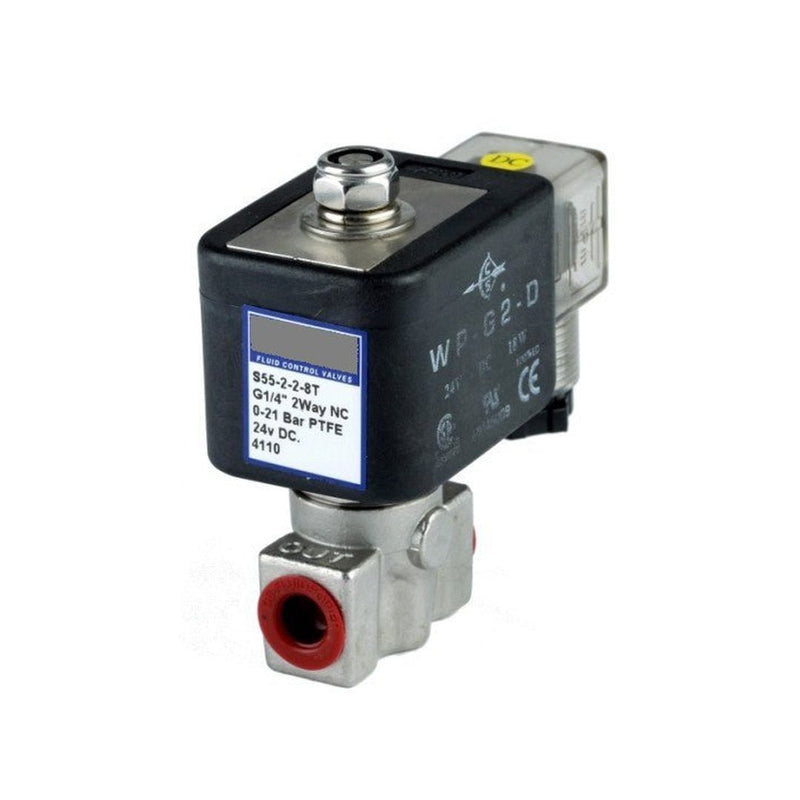

GO 1/4" S55H 316 Stainless High Pressure Normally Closed Solenoid Valves

SKU: S55H-2-1.2

GO 1/4" S55H 316 Stainless High Pressure Normally Closed Solenoid Valves

$297.00 AUD
$297.00 AUD
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Size
Orifice

Other payment options

GO 1/4" S55H 316 Stainless High Pressure Normally Closed Solenoid Valves

Overview

316 S.S 2 way 2 position normally closed direct solenoid valve.G1/4", 1.6mm orifice, 304 SS operator, copper shading ring, PTFE seat.0-42 BAR pressure range, vacuum 27"Hg, media temp -10°C to 120°C.Coil Class H insulation, 17.5 Watts, IP65 protection.

Details

A high pressure direct acting two way valve in 1/4" only. Forged brass body with teflon or viton seats depending upon the orifice size. Choice of DIN plug or Flying Leads coil (please refer to pressure table below to decide).

Great for applications where a high pressure media is present such as hydraulics, blow moulding or other industrial uses.

Specifications

  • Size 1/4" BSP only
  • Function Normally Closed (power to open)
  • Valve Operation Direct Acting
  • Body 316 Stainless Steel
  • Seat FKM
  • Pressure Range 0 to 120 BAR
  • Media Petrochemical
    • Model Port Size BSP Orifice ømm CV Pressure (BAR) Media Temperature Coil Specifications
    AC DC
    S55H-2-1.2-*T 1/4 1.2 0.07 0 ~ 120 0 ~ 84 -10°C to 120°C

    SC-C2-*
    24.4 Volt Amps
    18 Watts
    Class H Insulation
    100% ED
    DIN Plug
    S55H-2-1.6-*T 1/4 1.6 0.09 0 ~ 60 0 ~ 42 -10°C to 120°C
    S55H-2-2-*T 1/4 2 0.11 0 ~ 30 0 ~ 21 -10°C to 120°C
    S55H-2-3-*T 1/4 3 0.26 0 ~ 20 0 ~ 14 -10°C to 120°C
    S55H-2-4-*V 1/4 4 0.58 0 ~ 12 0 ~ 8 -10°C to 120°C
    S55H-2-5-*V 1/4 5 0.64 0 ~ 10 0 ~ 7 -10°C to 120°C
    S55H-2-1.2-*TF 1/4 1.2 0.07 0 ~ 150 0 ~ 105 -10°C to 120°C SC-C3F-*
    55 Volt Amps
    18 Watts
    Class H Insulation
    100% ED
    Flying Lead
    S55H-2-1.6-*TF 1/4 1.6 0.09 0 ~ 80 0 ~ 56 -10°C to 120°C
    S55H-2-2-*TF 1/4 2 0.11 0 ~ 60 0 ~ 42 -10°C to 120°C
    S55H-2-3-*TF 1/4 3 0.26 0 ~ 40 0 ~ 28 -10°C to 120°C
    S55H-2-4-*VF 1/4 4 0.58 0 ~ 20 0 ~ 14 -10°C to 120°C
    S55H-2-5-*VF 1/4 5 0.64 0 ~ 15 0 ~ 10 -10°C to 120°C
