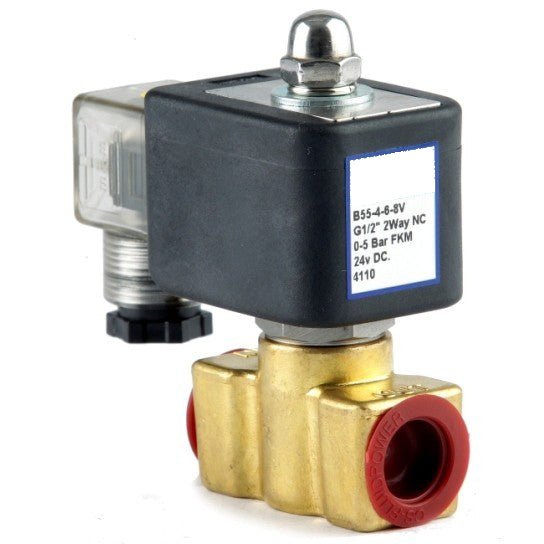

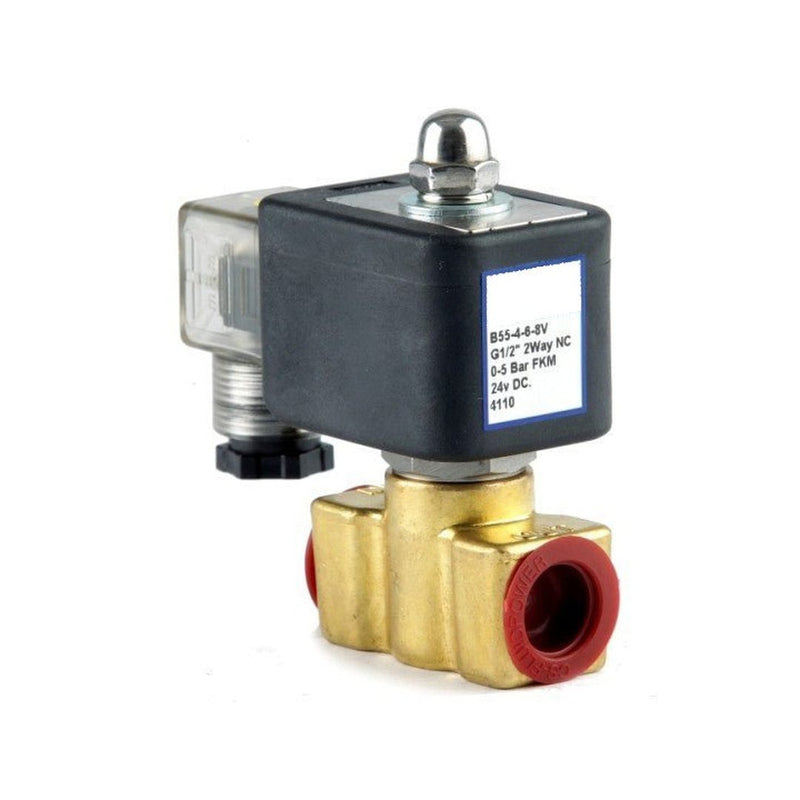

GO Solenoid Valve 1/4" to 1/2" B55 Brass Petrochemical Direct Acting Normally Closed Range
SKU: B55-2-3
GO Solenoid Valve 1/4" to 1/2" B55 Brass Petrochemical Direct Acting Normally Closed Range
A direct acting normally closed (power to open) brass forged body solenoid valve with a stainless steel operator. Suitable for low head and zero head applications. available in various seat materials including Viton (standard), Silicone, Neoprene, EPDM & Nitrile (contact us for any seals other than standard). Liquids to 40cst viscosity. Standard coil is weatherproof to IP65 and has LED illuminated plug.
Typical Applications include: Petrochemical, diesel farms, vacuum packaging, tank drain or low pressure service & general industry.
- Size 1/4" to 1/2" BSP
- Function Normally Closed (power to open)
- Valve Operation Direct Acting
- Body Forged Brass
- Seat FKM
- Pressure Range 0 to 10 BAR
- Media Petrochemical
Brass 2 way 2 position normally closed direct acting solenoid valve.G1/4", 3mm orifice, 304 SS operator, copper shading ring, FKM seat.0-10 BAR pressure range, vacuum 27"Hg, media temp -10°C to 100°C.Coil Class H insulation, 12 Watts DC, IP65 protection.
| Model | Port Size BSP | Orifice ømm | CV | Pressure (BAR) | Media Temperature | Coil Specifications |
|---|---|---|---|---|---|---|
| B55-2-3-*V | 1/4" | 3 | 0.26 | 0 to 10 | -10°C to 100°C |
SC-C1 12 Watts 15 Volta Amps Class H Insulation |
| B55-2-4-*V | 1/4" | 4 | 0.58 | 0 to 7 | -10°C to 100°C | |
| B55-2-5-*V | 1/4" | 5 | 0.64 | 0 to 5 | -10°C to 100°C | |
| B55-3-4-*V | 3/8" | 4 | 0.58 | 0 to 10 | -10°C to 100°C |
SC-C2 18 Watts 24.4 Volt Amps Class H Insulation |
| B55-3-6-*V | 3/8" | 6 | 0.79 | 0 to 5 | -10°C to 100°C | |
| B55-3-8-*V | 3/8" | 8 | 0.97 | 0 to 2 | -10°C to 100°C | |
| B55-4-6-*V | 1/2" | 6 | 0.79 | 0 to 5 | -10°C to 100°C | |
| B55-4-8-*V | 1/2" | 8 | 0.97 | 0 to 2 | -10°C to 100°C |
