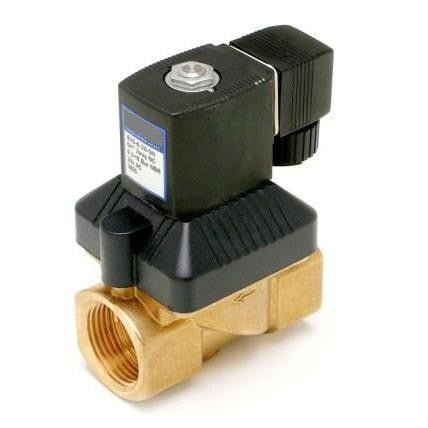

GO Solenoid Valve 1/4" to 2" B35 Brass General Purpose Differential Normally Closed Range
SKU: B35-2-10
$77
GO Solenoid Valve 1/4" to 2" B35 Brass General Purpose Differential Normally Closed Range
- Size 1/4" to 2" BSP
- Function Normally Closed (power to open)
- Valve Operation Servo Assisted
- Body Brass
- Seat NBR
- Pressure Range 0.3 to 16 BAR
- Media Non aggressive media
Brass 2 way 2 position normally closed differential solenoid valve.G1/4", 10mm orifice, 304 SS operator, copper shading ring, NBR seat.0.3-10 BAR pressure range, media temp -10°C to 80°C.Coil Class H insulation, 17 Watts, IP65 protection.
General purpose differential solenoid valve for air and water (non aggressive media up to 40CST viscosity). Designed with an anti water hammer diaphragm (slow close) making it great for mains water applications or downstream of a pump/compressor. Normally closed (energise to open) and available in all voltages. Comes with coil (class F insulation) and DIN plug (IP65 protection). Installation can be in any orientation however upright is always preferable if possible.
| Model | Port Size (BSP) | Orifice (mm) | CV | Media Pressure | Media Temperature | Repair Kit | Coil Specifications |
|---|---|---|---|---|---|---|---|
| B35-2-10-*N | 1/4 | 10 | 2.3 | 0.3 to 10 BAR | -10°C to 80°C | RK-B35-4-N |
SC-N12 11 Volt Amps 15 Watts Class H Insulation 100% ED |
| B35-3-10-*N | 3/8 | 10 | 2.3 | 0.3 to 10 BAR | -10°C to 80°C | RK-B35-4-N | |
| B35-4-10-*N | 1/2 | 10 | 3 | 0.3 to 10 BAR | -10°C to 80°C | RK-B35-4-N | |
| B35-4-14-*N | 1/2 | 14 | 5 | 0.3 to 16 BAR | -10°C to 80°C | RK-B35-414-N | |
| B35-5-14-*N | 3/4 | 14 | 5 | 0.3 to 16 BAR | -10°C to 80°C | RK-B35-414-N | |
| B35-5-20-*N | 3/4 | 20 | 10 | 0.3 to 16 BAR | -10°C to 80°C | RK-B35-6-N | |
| B35-6-20-*N | 1 | 20 | 11 | 0.3 to 16 BAR | -10°C to 80°C | RK-B35-6-N | |
| B35-7-40-*N | 1 ¼ | 40 | 28 | 0.7 to 16 BAR | -10°C to 80°C | RK-B35-8-N | |
| B35-8-40-*N | 1 ½ | 40 | 34 | 0.7 to 16 BAR | -10°C to 80°C | RK-B35-8-N | |
| B35-9-50-*N | 2 | 50 | 50 | 0.7 to 16 BAR | -10°C to 80°C | RK-B35-9-N |
