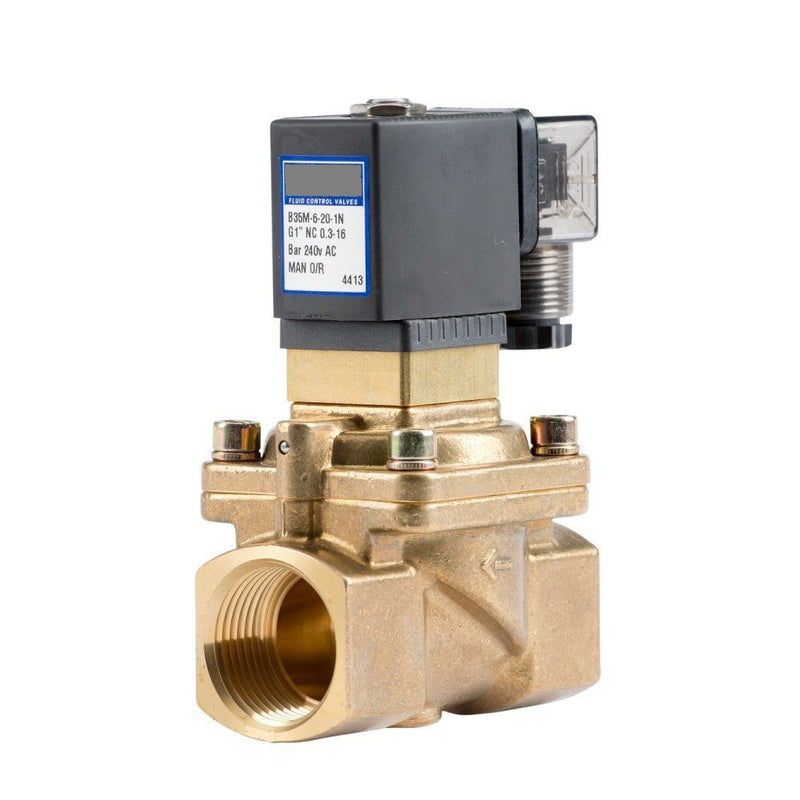

GO Solenoid Valve 1/4" to 2" B35M Brass General Purpose Differential Manual Override Normally Closed Range

SKU: B35M-4-14

$138

GO Solenoid Valve 1/4" to 2" B35M Brass General Purpose Differential Manual Override Normally Closed Range

  • Size 1/2" to 2" BSP
  • Function Normally Closed (power to open) with Manual Override
  • Valve Operation Servo Assisted
  • Body Brass
  • Seat NBR
  • Pressure Range 0.3 to 16 BAR
  • Media Non aggressive media

        Brass 2 way 2 position normally closed differential solenoid valve.G1/2", 14mm orifice, 304 SS operator, copper shading ring, NBR seat, man o/ride.0.3-16 BAR pressure range, media temp -10°C to 80°C.Coil Class H insulation, 17 Watts, IP65 protection.

        General purpose differential solenoid valve for air and water (non aggressive media up to 40CST viscosity). Designed with an anti water hammer diaphragm (slow close) making it great for mains water applications or downstream of a pump/compressor. Normally closed (energise to open) and available in all voltages. Comes with coil, DIN plug (IP65 protection) and a manual override function.

        Model Port Size (BSP) Orifice (mm) CV Pressure Range Media Temperature Coil Specification
        B35M-4-14-*N 1/2 14 5 0.3 to 16 BAR -10°C to 80°C SC-N12
        11Volt Amps
        15 Watts
        Class H Insulation
        100% ED
        B35M-5-20-*N 3/4 20 10 0.3 to 16 BAR -10°C to 80°C
        B35M-6-20-*N 1 20 11 0.3 to 16 BAR -10°C to 80°C
        B35M-7-40-*N 1-1/4 40 28 0.3 to 16 BAR -10°C to 80°C
        B35M-8-40-*N 1-1/2 40 34 0.3 to 16 BAR -10°C to 80°C
        B35M-9-50-*N 2 50 50 0.3 to 16 BAR -10°C to 80°C
