GO Solenoid Valve 1/4
Dimensions - GO Solenoid Valve 1/4

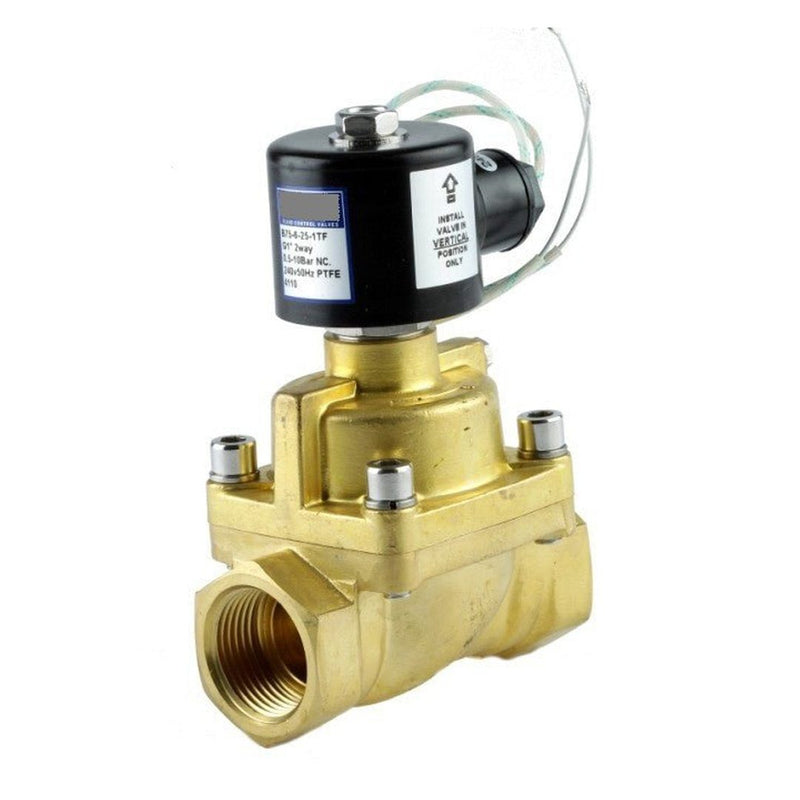

  • GO Solenoid Valve 1/4" to 2" B75 Brass Steam and High Temp Normally Closed Range
  • Dimensions - GO Solenoid Valve 1/4" to 2" B75 Brass Steam and High Temp Normally Closed Range
1 3

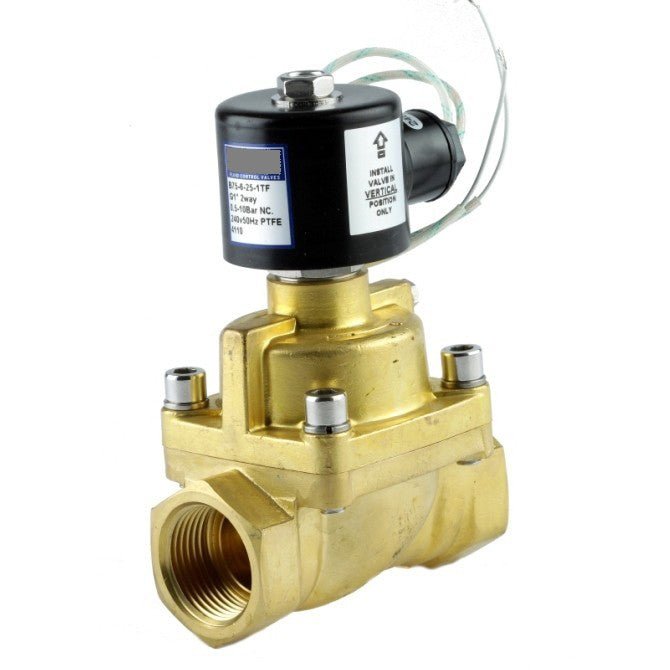

GO B75 Brass Steam and High Temp Normally Closed Solenoid Valves

SKU: B75-2-3

GO B75 Brass Steam and High Temp Normally Closed Solenoid Valves

$110.00 AUD
$110.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
Size
Orifice

Other payment options

View full details
GO Solenoid Valve 1/4

GO B75 Brass Steam and High Temp Normally Closed Solenoid Valves

From $110.00 AUD
From $110.00 AUD
Save $0
Sold out

Details

Typical Applications include high pressure irrigation, laundry equipment, hospitals, steam curing beds, boilers & general industry.

GO B75 Brass Steam and High Temp Normally Closed Solenoid Valves

Overview

A high flow / high pressure (up to 20 BAR) normally closed (power to open) piston type valve with brass forged body and Teflon seats. Mainly used as a steam valve as it will do up to 180 degrees Celsius (steam at 10 BAR) with either a flying lead or DIN plug coil. Will handle fluids up to 50 centistoke viscosity.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

Specifications

Brass 2 way 2 position normally closed differential solenoid valve.G3/8", 15mm orifice, 304 SS operator, copper shading ring, PTFE seat.0.5-20 BAR pressure range, media temp -10°C to 180°C.Coil Class H insulation, 17.5 Watts, IP65 protection.

  • Size 3/8" to 2" BSP
  • Function Normally Closed (power to open)
  • Valve Operation Servo Assisted
  • Body Brass
  • Seat PTFE
  • Pressure Range 0.5 to 10 BAR
  • Media Steam
    • Model Port Size (BSP) Orifice ømm CV Pressure (BAR) Media Temperature Coil Specifications
    B75-3-15-*T 3/8 15 4.5 0.5 to 20 -10°C to 180°C

    SC-C2
    DIN Plug
    28 Watts
    24 Volt Amps
    100% ED
    Class H Insulation
    IP65
    B75-4-15-*T 1/2 15 4.5 0.5 to 20 -10°C to 180°C
    B75-5-20-*T 3/4 20 9.3 0.5 to 20 -10°C to 180°C
    B75-6-25-*T 1 25 13.2 0.5 to 20 -10°C to 180°C
    B75-7-35-*T 1 ¼ 35 26 0.5 to 20 -10°C to 180°C
    B75-8-35-*T 1 ½ 35 26 0.5 to 20 -10°C to 180°C
    B75-9-50-*T 2 50 48 0.5 to 20 -10°C to 180°C
    B75-3-15-*TF 3/8 15 4.5 0.5 to 20 -10°C to 180°C SC-H2
    Flying Leads
    25 watts
    33 Volt Amps
    100% ED
    Class H Insulation
    IP54
    B75-4-15-*TF 1/2 15 4.5 0.5 to 20 -10°C to 180°C
    B75-5-20-*TF 3/4 20 9.3 0.5 to 20 -10°C to 180°C
    B75-6-25-*TF 1 25 13.2 0.5 to 20 -10°C to 180°C
    B75-7-35-*TF 1 ¼ 35 26 0.5 to 20 -10°C to 180°C
    B75-8-35-*TF 1 ½ 35 26 0.5 to 20 -10°C to 180°C
    B75-9-50-*TF 2 50 48 0.5 to 20 -10°C to 180°C
