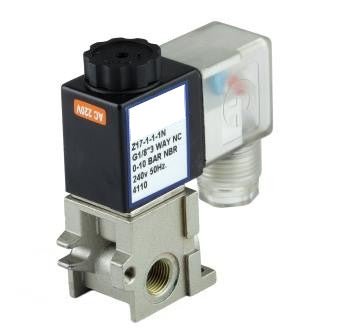

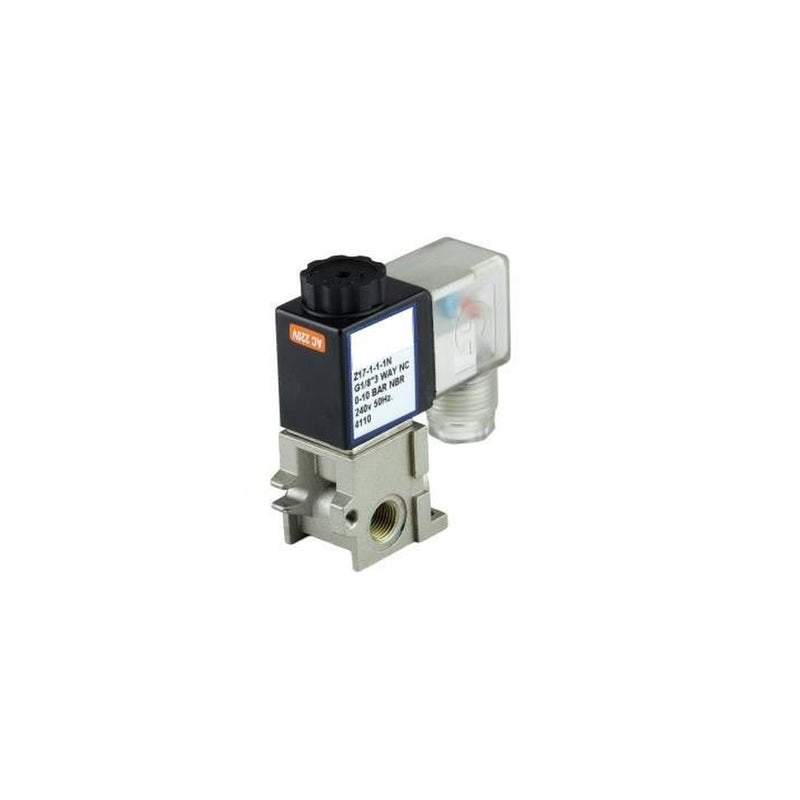

GO 1/8" (6mm) Z17 3 Way Direct Acting Normally Closed Solenoid Valve

SKU: Z17-1-1

GO 1/8" (6mm) Z17 3 Way Direct Acting Normally Closed Solenoid Valve

$61.00 AUD
$61.00 AUD
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Other payment options

GO 1/8" (6mm) Z17 3 Way Direct Acting Normally Closed Solenoid Valve

Overview

Three way direct acting die cast zinc solenoid valve. This valve features a stackable body with a manual override and LED connector plug as standard. Typical applications include signal or command control of larger valves or direct operation of small air cylinders. Available in 1/8” BSP ports only and in all voltages.

Specifications

Zinc 3 way 2 position normally closed direct acting solenoid valve.G1/8", 1mm orifice, 304 SS operator, copper shading ring, NBR seat, man o/ride.0-10 BAR pressure range, vacuum 27"Hg, media temp -10°C to 80°C.

  • Size 1/8" BSP only
  • Function 3 way normally Closed (power to open)
  • Valve Operation Direct Acting
  • Body Die Cast Zinc
  • Seat FKM
  • Pressure Range 0 to 10 BAR
  • Media Air
    • Model Port Size Orifice ømm CV Media Pressure Media Temperature Weight Kg Coil Specifications
    Z17-1-1-*VM 1/8” BSP 1 0.08 0 to 10 BAR -5°Ct o 80°C 0.5 SC-A1
    6 Volt Amps
    5 Watts
    Class F Insulation
    100% ED
