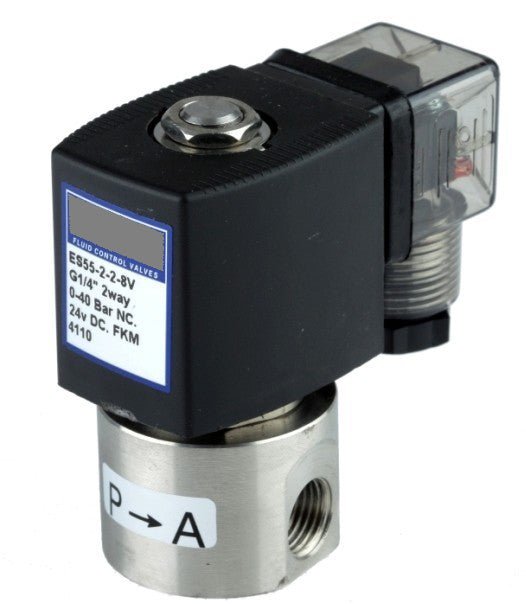

GO ES55 Stainless General Purpose Direct Acting Normally Closed Solenoid Valves

SKU: ES55-1-1

GO ES55 Stainless General Purpose Direct Acting Normally Closed Solenoid Valves

$83.00 AUD
$83.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Size
Orifice

Other payment options

View full details
GO ES55 Stainless General Purpose Direct Acting Normally Closed Solenoid Valves - GO Industrial - ES55 - 1 - 1

GO ES55 Stainless General Purpose Direct Acting Normally Closed Solenoid Valves

From $83.00 AUD
From $83.00 AUD
Save $0
Sold out

GO ES55 Stainless General Purpose Direct Acting Normally Closed Solenoid Valves

Overview

A normally closed (power to open) direct acting solenoid valve with a 304 Stainless Steel machined body and stainless steel operator. Suitable for low head and zero head applications with a Viton (FKM) seat. Liquids to 50 centistoke viscosity. Standard coil is weatherproof to IP65 and has LED illuminated plug. Typical Applications include tank drain, iodine dosing for dairies, chemicals and other general industry.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

Specifications

304 S.S 2 way 2 position normally closed direct acting solenoid valve.G1/8", 1mm orifice, 304 SS operator, copper shading ring, FKM seat.0-25 BAR pressure range, media temp -10°C to 100°C.Coil Class H insulation, 17 Watts, IP65 protection. SC-N12 coil.

  • Size 1/8" to 1/4" BSP
  • Function Normally Closed (power to open)
  • Valve Operation Direct Acting
  • Body 304 Stainless Steel
  • Seat FKM
  • Pressure Range 0 to 25 BAR (depend on size)
  • Media Non aggressive media
    • Model Port Size (BSP) Orifice ømm CV Pressure (BAR) Temperature Coil Wattage
    ES55-1-1-*V 1/8 1 0.04 0~25 -10°C to 95°C SC-N12 15 Watts
    ES55-2-2-*V 1/4 2 0.1 0~16 -10°C to 95°C SC-N14 21 Watts
    ES55-2-3-*V 1/4 3 0.2 0~10 -10°C to 95°C SC-N14
    ES55-2-4-*V 1/4 4 0.4 0~6 -10°C to 95°C SC-N14
