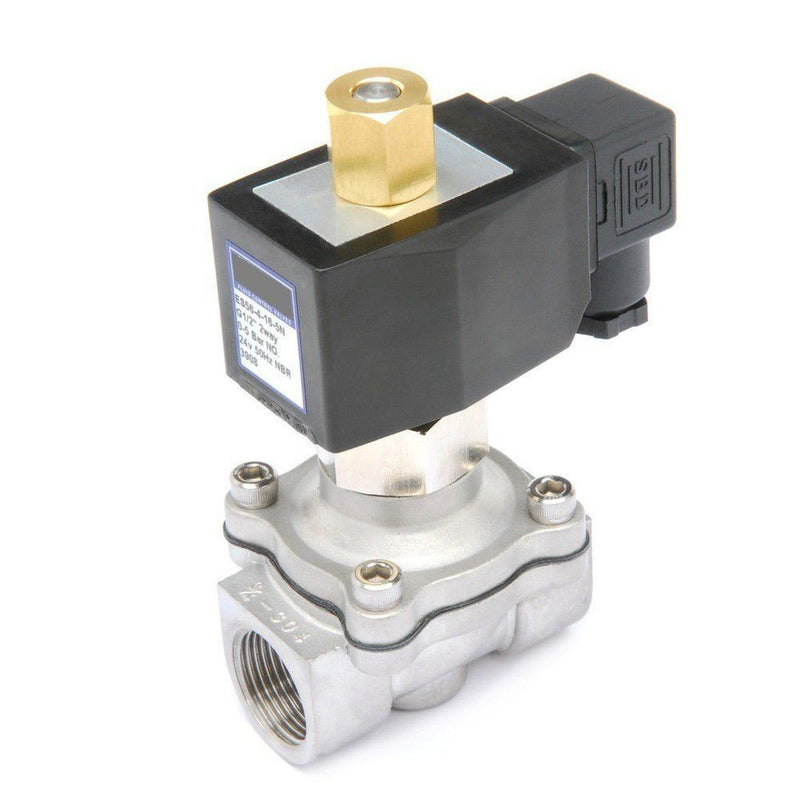

GO Solenoid Valve 3/8" to 1" ES56 Stainless General Purpose Zero Differential Normally Open Range

SKU: ES56-3-4

$165

GO Solenoid Valve 3/8" to 1" ES56 Stainless General Purpose Zero Differential Normally Open Range

A high flow normally open (power to close) valve with a 304 Stainless Steel forged body and stainless steel operator. Suitable for low head and zero head applications with a coupled diaphragm and standard with NBR seat and seals. Liquids to 20 centistoke viscosity. Standard coil is weatherproof to IP65 and has LED illuminated plug.

Typical Applications include tank drain and low pressure general industry applications.

  • Size 3/8" to 1" BSP
  • Function Normally Open (power to close)
  • Valve Operation Coupled Diaphragm
  • Body 304 Stainless Steel
  • Seat NBR
  • Pressure Range 0 to 5 BAR
  • Media Non aggressive media

            A high flow normally open (power to close) valve with a 304 Stainless Steel forged body and stainless steel operator. Suitable for low head and zero head applications with a coupled diaphragm and standard with NBR seat and seals. Liquids to 20 centistoke viscosity. Standard coil is weatherproof to IP65 and has LED illuminated plug. Typical Applications include tank drain and low pressure general industry applications.

            Model Port Size (BSP) Orifice ømm CV Pressure Air Pressure Liquid Media Temperature Coil Specifications
            ES56-3-4-*N 3/8 4 0.5 0 to7 Bar 0 to 5 Bar -10°C to 80°C SC-E16H
            45 Volt Amps
            30 Watts
            Class H Insulation
            100% ED
            ES56-4-16-*N ½ 16 4.5 0 to7 Bar 0 to 5 Bar -10°C to 80°C
            ES56-5-20-*N ¾ 20 9.3 0 to7 Bar 0 to 5 Bar -10°C to 80°C
            ES56-6-25-*N 1 25 13.2 0 to7 Bar 0 to 5 Bar -10°C to 80°C
