GO Solenoid Valve 3/8
Construction - GO Solenoid Valve 3/8
Dimensions - GO Solenoid Valve 3/8
  • GO Solenoid Valve 3/8" to 2" B55 Petrochemical Zero Differential Normally Closed Range
  • Construction - GO Solenoid Valve 3/8" to 2" B55 Petrochemical Zero Differential Normally Closed Range
  • Dimensions - GO Solenoid Valve 3/8" to 2" B55 Petrochemical Zero Differential Normally Closed Range
1 4

Typical Applications include: Petrochemical, diesel farms, vacuum packaging, tank drain or low pressure service & general industry.



Brass 2 way 2 position normally closed zero differential solenoid valve.G3/8", 15mm orifice, 304 SS operator, copper shading ring, FKM seat.0-10 BAR pressure range, vacuum 27"Hg, media temp -10°C to 100°C.Coil Class H insulation, 17.5 Watts, IP65 protection.

Model Port Size BSP Orifice ømm CV Pressure (BAR) Media Temperature Repair Kit Coil Specifications
B55-3-15-*V 3/8 15 4.5 0 to 10 -10°C to 100°C RK-B55-4-V SC-C2
24.4 Volt Amps
18 Watts
Class F Insulation
100% ED


B55-4-15-*V ½ 15 4.5 0 to 10 -10°C to 100°C RK-B55-4-V
B55-5-20-*V ¾ 20 9.3 0 to 10 -10°C to 100°C RK-B55-5-V
B55-6-25-*V 1 25 13.2 0 to 10 -10°C to 100°C RK-B55-6-V
B55-7-35-*V 1 ¼ 35 26 0 to 10 -10°C to 100°C RK-B55-8-V
B55-8-35-*V 1 ½ 35 26 0 to 10 -10°C to 100°C RK-B55-8-V
B55-9-50-*V 2 50 48 0 to 7 -10°C to 100°C RK-B55-9-V



  • Size 3/8" to 2" BSP
  • Function Normally Closed (power to open)
  • Valve Operation Coupled Diaphragm
  • Body Forged Brass
  • Seat FKM
  • Pressure Range 0 to 10 BAR
  • Media Petrochemical

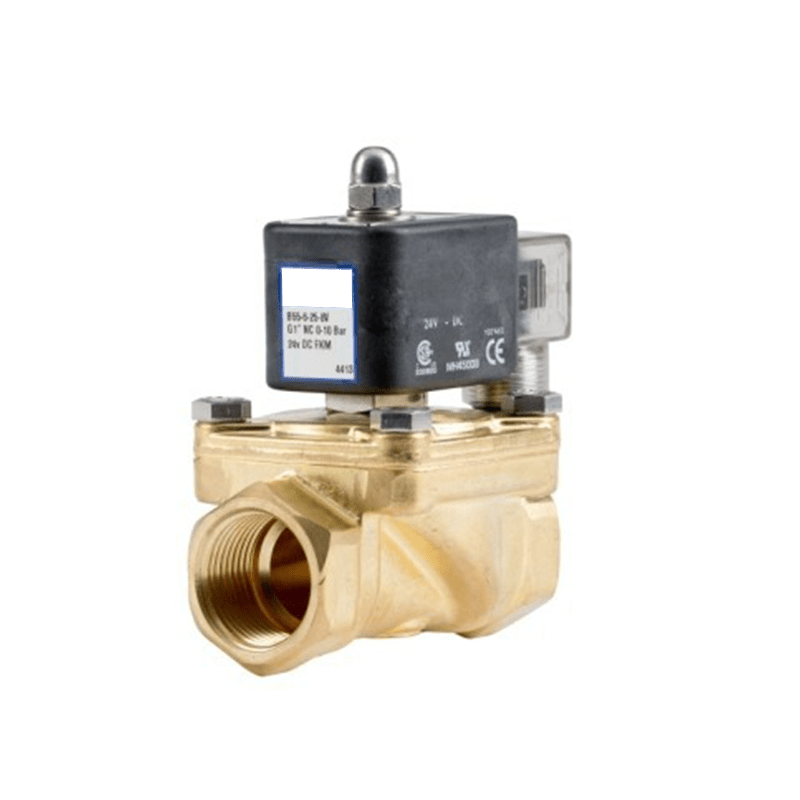

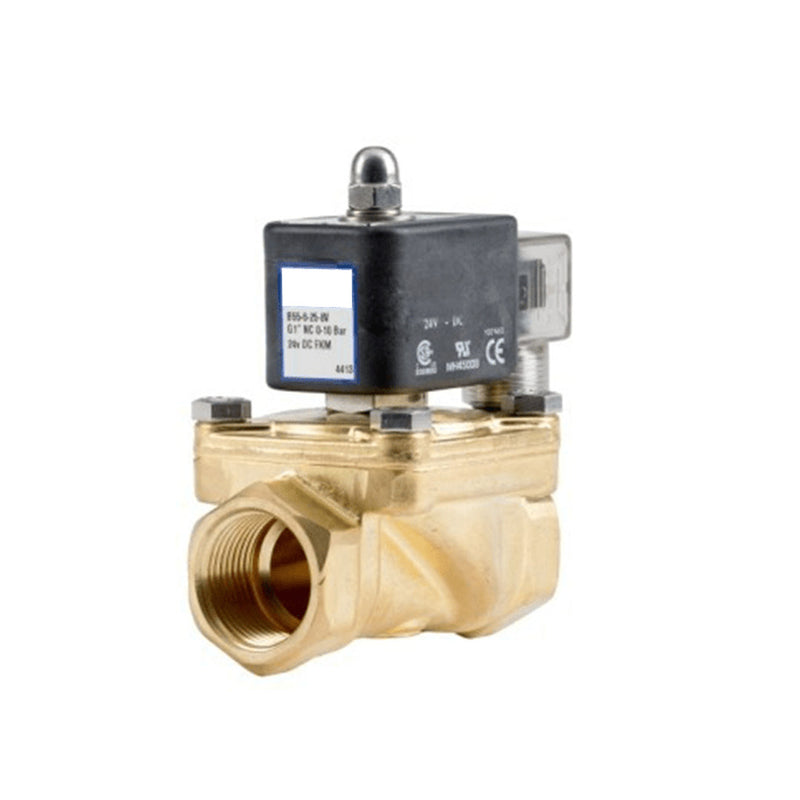

GO Solenoid Valve 3/8" to 2" B55 Brass Petrochemical Zero Differential Normally Closed Range

SKU: B55-3-15

GO Solenoid Valve 3/8" to 2" B55 Brass Petrochemical Zero Differential Normally Closed Range

$209.00 AUD
$209.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Size
Orifice

Other payment options

The Basics

A high flow valve with brass forged body and stainless steel operator. Suitable for low head and zero head applications. available in various seat materials including Viton (standard), Silicone, Neoprene, EPDM & Nitrile (contact us for any seals other than standard). Liquids to 40cst viscosity. Standard coil is weatherproof to IP65 and has LED illuminated plug.




Customers also purchased

GO Solenoid Valve B55 Repair Kit Range

GO Solenoid Valve B55 Repair Kit Range

From $160.00 AUD
From $160.00 AUD

Typical Applications include: Petrochemical, diesel farms, vacuum packaging, tank drain or low pressure service & general industry.



Brass 2 way 2 position normally closed zero differential solenoid valve.G3/8", 15mm orifice, 304 SS operator, copper shading ring, FKM seat.0-10 BAR pressure range, vacuum 27"Hg, media temp -10°C to 100°C.Coil Class H insulation, 17.5 Watts, IP65 protection.

Model Port Size BSP Orifice ømm CV Pressure (BAR) Media Temperature Repair Kit Coil Specifications
B55-3-15-*V 3/8 15 4.5 0 to 10 -10°C to 100°C RK-B55-4-V SC-C2
24.4 Volt Amps
18 Watts
Class F Insulation
100% ED


B55-4-15-*V ½ 15 4.5 0 to 10 -10°C to 100°C RK-B55-4-V
B55-5-20-*V ¾ 20 9.3 0 to 10 -10°C to 100°C RK-B55-5-V
B55-6-25-*V 1 25 13.2 0 to 10 -10°C to 100°C RK-B55-6-V
B55-7-35-*V 1 ¼ 35 26 0 to 10 -10°C to 100°C RK-B55-8-V
B55-8-35-*V 1 ½ 35 26 0 to 10 -10°C to 100°C RK-B55-8-V
B55-9-50-*V 2 50 48 0 to 7 -10°C to 100°C RK-B55-9-V



  • Size 3/8" to 2" BSP
  • Function Normally Closed (power to open)
  • Valve Operation Coupled Diaphragm
  • Body Forged Brass
  • Seat FKM
  • Pressure Range 0 to 10 BAR
  • Media Petrochemical
