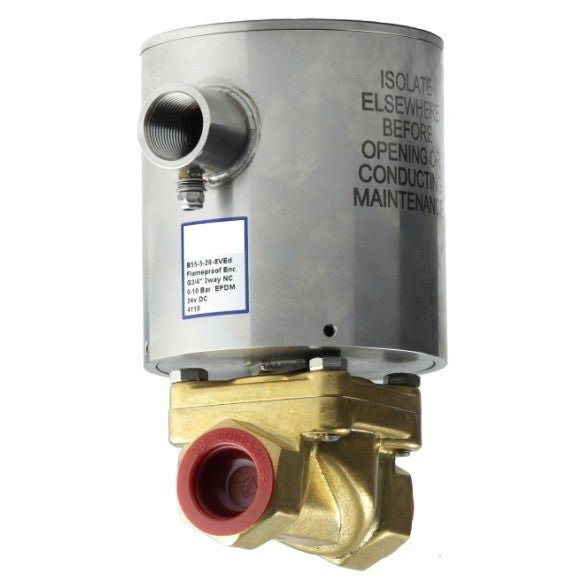

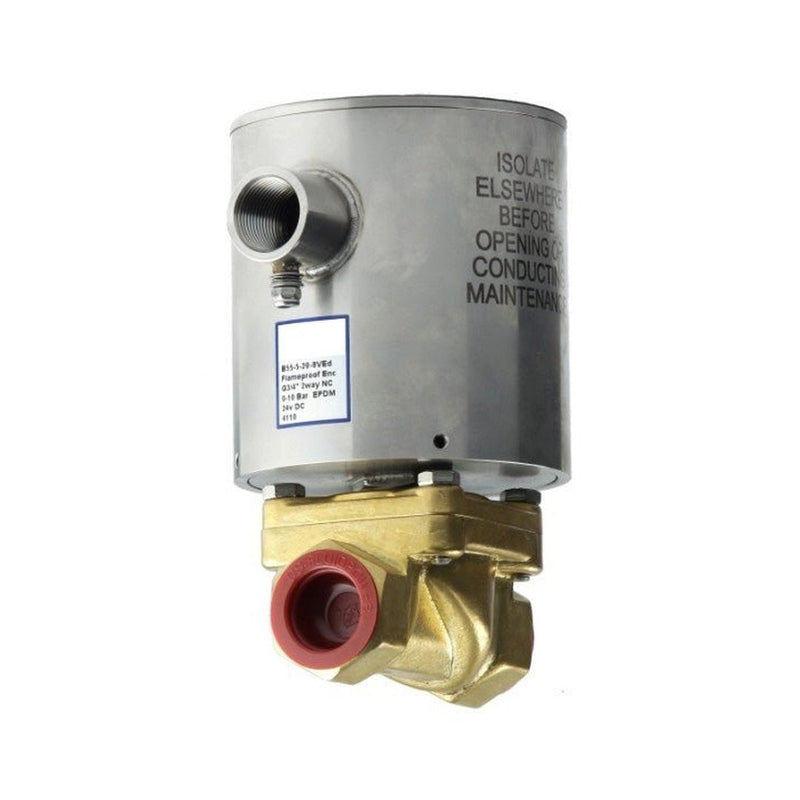

GO B55ED Brass EXD Rated Zero Differential Normally Closed Solenoid Valves
SKU: B55ED-3-4GO B55ED Brass EXD Rated Zero Differential Normally Closed Solenoid Valves
Regular price
$1,727.00 AUD
Sale price
$1,727.00 AUD
Regular price
Unit price
per
Save $0
Sold out
Inclusive of GST.
Shipping calculated at checkout.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
Other payment options
Delivery & Shipping
GO B55ED Brass EXD Rated Zero Differential Normally Closed Solenoid Valves
Regular price
From $1,727.00 AUD
Sale price
From $1,727.00 AUD
Regular price
Unit price
per
Save $0
Sold out
GO B55ED Brass EXD Rated Zero Differential Normally Closed Solenoid Valves
Overview
Brass 2 way 2 position normally closed zero differential, Exd approved solenoid valve. Ideal for hazardous area environments. Viton seat, 0-10 BAR pressure range, vacuum to 27"Hg and media temperature range of -10°C to 40°C. It carries the following approvals; Ex d I Mb, Ex d II T5 Gb, Ex tb IIIC T85 c Db IP66, IECEx SIM 13.0009.
Specifications
Brass 2 way 2 position normally closed zero differential solenoid valve.G3/8", 15mm orifice, 304 SS operator, FKM seat, M20x1.5-6g gland, IP660-10 BAR pressure range, vacuum 27"Hg, media temp -10°C to 40°C.Ex d I Mb, Ex d II T5 Gb, Ex tb IIIC T85 c Db IP6
| Model | Port Size (BSP) | Orifice (mm) | CV | Media Pressure | Media Temperature |
|---|---|---|---|---|---|
| B55ED-3-4-*V | 3/8” | 4 | 0.58 | 0 to 10 BAR | -10°C to 40°C |
| B55ED-3-6-*V | 3/8” | 6 | 0.79 | 0 to 5 BAR | -10°C to 40°C |
| B55ED-3-8-*V | 3/8” | 8 | 0.97 | 0 to 2 BAR | -10°C to 40°C |
| B55ED-4-6-*V | 1/2" | 6 | 0.79 | 0 to 5 BAR | -10°C to 40°C |
| B55ED-4-8-*V | 1/2" | 8 | 0.97 | 0 to 2 BAR | -10°C to 40°C |
| B55ED-3-15-*V | 3/8” | 15 | 4.50 | 0 to 10 BAR | -10°C to 40°C |
| B55ED-4-15-*V | 1/2" | 15 | 4.50 | 0 to 10 BAR | -10°C to 40°C |
| B55ED-5-20-*V | 3/4" | 20 | 9.30 | 0 to 10 BAR | -10°C to 40°C |
| B55ED-6-25-*V | 1” | 25 | 13.2 | 0 to 10 BAR | -10°C to 40°C |
| B55ED-7-35-*V | 1 ¼” | 35 | 26.0 | 0 to 10 BAR | -10°C to 40°C |
| B55ED-8-35-*V | 1 ½” | 35 | 26.0 | 0 to 10 BAR | -10°C to 40°C |
| B55ED-9-50-*V | 2” | 50 | 48.0 | 0 to 7 BAR | -10°C to 40°C |
