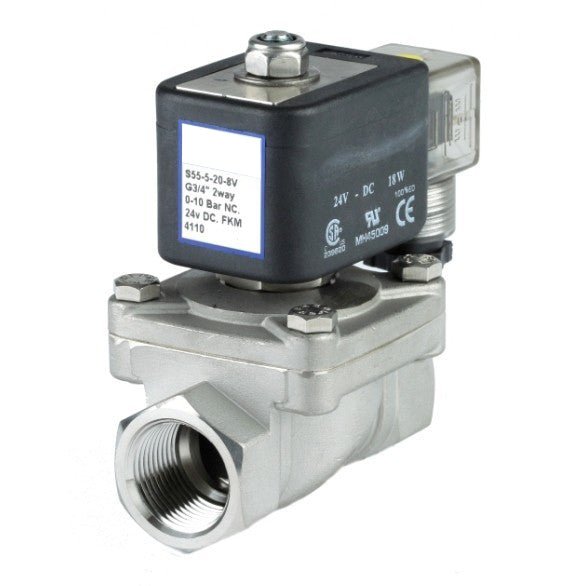

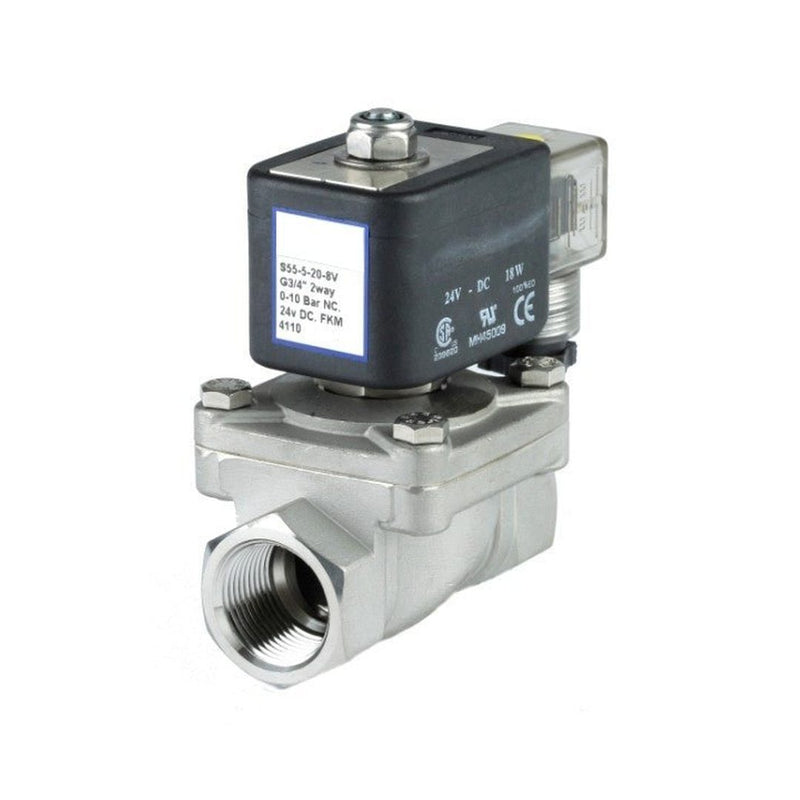

GO Solenoid Valve 3/8" to 2" S55 316 Stainless Petrochemical Zero Differential Normally Closed Range

SKU: S55-3-15

$424

GO Solenoid Valve 3/8" to 2" S55 316 Stainless Petrochemical Zero Differential Normally Closed Range

A high flow valve with a 316 Stainless Steel forged body and stainless steel operator. Suitable for low head and zero head applications. available in various seat materials including Viton (standard), Silicone, Neoprene, EPDM & Nitrile (contact us for any seals other than standard). Liquids to 40cst viscosity. Standard coil is weatherproof to IP65 and has LED illuminated plug.

Typical Applications include: Petrochemical, diesel farms, vacuum packaging, tank drain or low pressure service & general industry.

  • Size 3/8" to 2" BSP
  • Function Normally Closed (power to open)
  • Valve Operation Coupled Diaphragm
  • Body 316 Stainless Steel
  • Seat FKM
  • Pressure Range 0 to 10

316 S.S 2 way 2 position normally closed differential solenoid valve.G3/8", 15mm orifice, 304 SS operator, copper shading ring, FKM seat.0-10 BAR pressure range, vacuum 27"Hg, media temp -10°C to 120°C.Coil Class H insulation, 17.5 Watts, IP65 protection.

Model Port Size BSP Orifice ømm CV Pressure (BAR) Media Temperature Repair Kit Coil Specifications
S55-3-15-*V 3/8 15 4.5 0 to 10 -10°C to 100°C RK-S55-4-V SC-C2
24.4 Volt Amps
18 Watts
Class F Insulation
100% ED
S55-4-15-*V ½ 15 4.5 0 to 10 -10°C to 100°C RK-S55-4-V
S55-5-20-*V ¾ 20 9.3 0 to 10 -10°C to 100°C RK-S55-5-V
S55-6-25-*V 1 25 13.2 0 to 10 -10°C to 100°C RK-S55-6-V
S55-7-35-*V 1 ¼ 35 26 0 to 10 -10°C to 100°C RK-S55-8-V
S55-8-35-*V 1 ½ 35 26 0 to 10 -10°C to 100°C RK-S55-8-V
S55-9-50-*V 2 50 48 0 to 7 -10°C to 100°C RK-S55-9-V
