GO Vacuum Switch Plated Steel Body VSM Range
Dimensions - GO Vacuum Switch Plated Steel Body VSM Range
Wiring Diagram - GO Vacuum Switch Plated Steel Body VSM Range
Skip to product information
1 of 4



Model Adjustment Range (mBAR) Max Over Pressure (bar) Body Material Membrane Material Snubber Repeatability (mBAR) Weight (grams)
VSM1R14 -100 to -500 20 Pl. Steel NBR No ±50 100
VSM2R14 -500 to -900 20 Pl. Steel NBR No ±80 100
  • Switching Range -100 to -900 milli BAR
  • Body Brass
  • Function Single Pole Double Throw (SPDT)
  • Voltage Multi Voltage (0 to 240v AC/DC)
  • Current 6 amp resistive and 2 amp inductive
  • Factory Accredited CE, ISO 9001, TUV

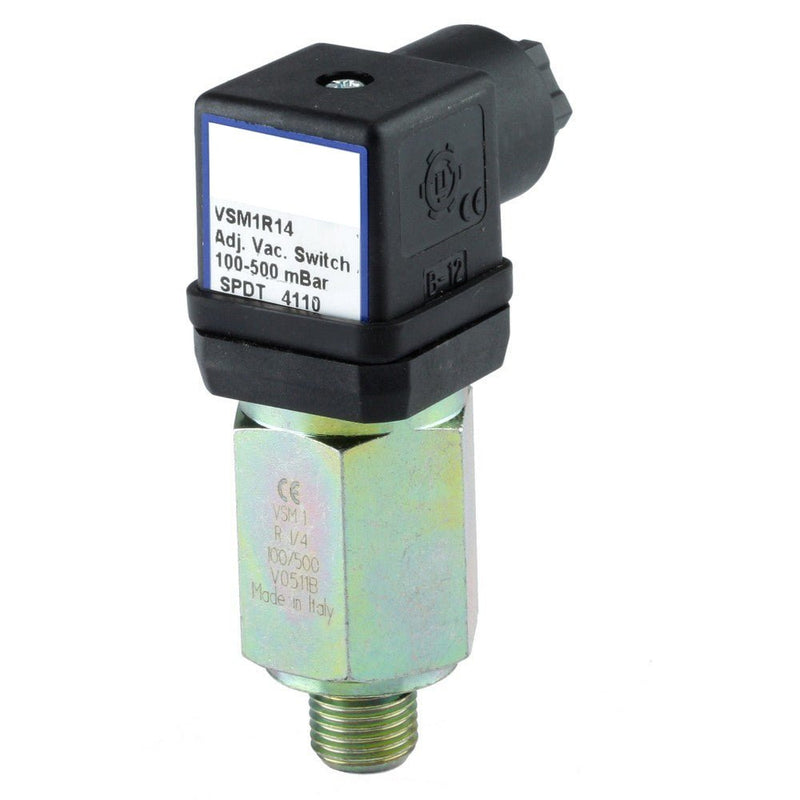

GO Vacuum Switch Plated Steel Body VSM Range

SKU: VSM1R14

GO Vacuum Switch Plated Steel Body VSM Range

Regular price $198.00 AUD
Sale price $198.00 AUD Regular price
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Pressure Range

Other payment options

The Basics

Adjustable vacuum switch which are single pole double throw meaning they can be wired normally closed or normally open. Electrical connection is by an IP65 DIN plug (PG9) and port connection is a 1/4" BSP parallel thread with an o ring gasket. Typical uses include: pneumatic, hydraulic, lubrication and general industry.



Model Adjustment Range (mBAR) Max Over Pressure (bar) Body Material Membrane Material Snubber Repeatability (mBAR) Weight (grams)
VSM1R14 -100 to -500 20 Pl. Steel NBR No ±50 100
VSM2R14 -500 to -900 20 Pl. Steel NBR No ±80 100
  • Switching Range -100 to -900 milli BAR
  • Body Brass
  • Function Single Pole Double Throw (SPDT)
  • Voltage Multi Voltage (0 to 240v AC/DC)
  • Current 6 amp resistive and 2 amp inductive
  • Factory Accredited CE, ISO 9001, TUV
View full details
