GO Y Strainer Cast Iron Table E 2" to 12" YSCF Range
Construction - GO Y Strainer Cast Iron Table E 2" to 12" YSCF Range
Dimensions - GO Y Strainer Cast Iron Table E 2" to 12" YSCF Range
GO Y Strainer Cast Iron Table E 2" to 12" YSCF Range Construction - GO Y Strainer Cast Iron Table E 2" to 12" YSCF Range Dimensions - GO Y Strainer Cast Iron Table E 2" to 12" YSCF Range

GO Y Strainer Cast Iron Table E 2" to 12" YSCF Range

SKU: YSCF-50

$94

GO Y Strainer Cast Iron Table E 2" to 12" YSCF Range

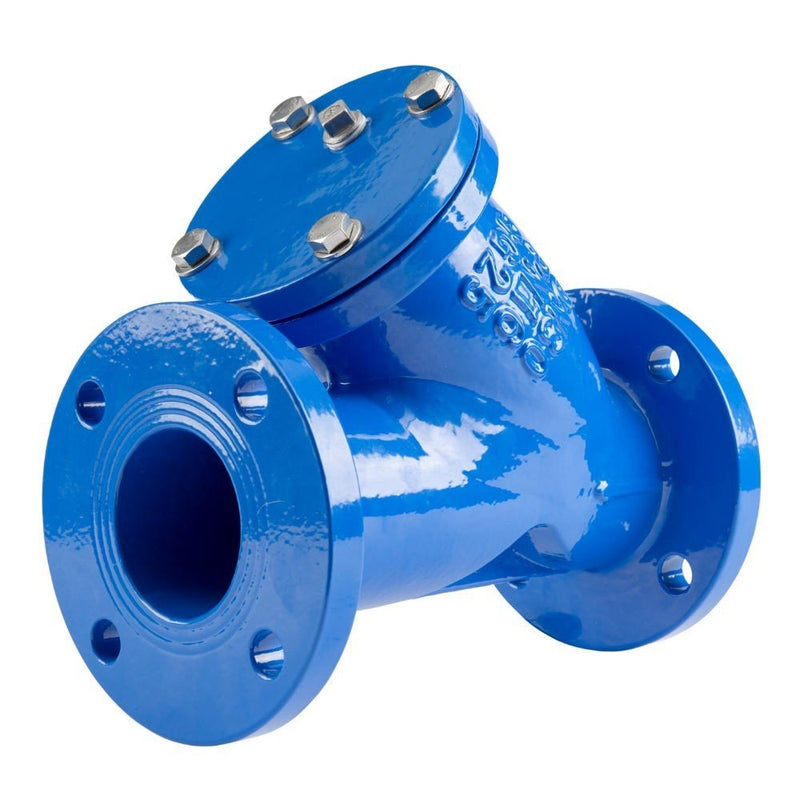

Fusion Bonded Epoxy Coated Cast Iron Y Strainer Flanged to Table E with 304 Stainless Steel Mesh (mesh size is 40 mesh or 400 micron). This Y strainer is great for waste water or other applications where straining needs to occur in an efficient and simple manner. Tested in accordance with API 598.

  • Size 50mm to 600mm
  • Body FBE Coated Cast Iron
  • Mesh 304 Stainless Steel
  • Pressure Range 0 to 16 BAR
  • Flanged AS2129 Table E / AS4087 PN16
  • Factory Accredited CE, ISO 9001, TUV, WRAS
Model DN (mm) Pressure Range Media Temp Weight (kg) Plug Size
YSCF-050 50 0 to 16 BAR 0 to 80°C 9.6 ¼”
YSCF-065 65 0 to 16 BAR 0 to 80°C 12.3 3/8”
YSCF-080 80 0 to 16 BAR 0 to 80°C 17 ½”
YSCF-100 100 0 to 16 BAR 0 to 80°C 28.1 ½”
YSCF-125 125 0 to 16 BAR 0 to 80°C 40 ½”
YSCF-150 150 0 to 16 BAR 0 to 80°C 48.9 1”
YSCF-200 200 0 to 16 BAR 0 to 80°C 82.3 1”
YSCF-250 250 0 to 16 BAR 0 to 80°C 127.3 1”
YSCF-300 300 0 to 16 BAR 0 to 80°C 200 1”
YSCF-350 350 0 to 16 BAR 0 to 80°C 320 1”
YSCF-400 400 0 to 16 BAR 0 to 80°C 420 1”
YSCF-450 450 0 to 16 BAR 0 to 80°C 620 1”
YSCF-500 500 0 to 16 BAR 0 to 80°C 780 1”
YSCF-600 600 0 to 16 BAR 0 to 80°C 1050 1”
