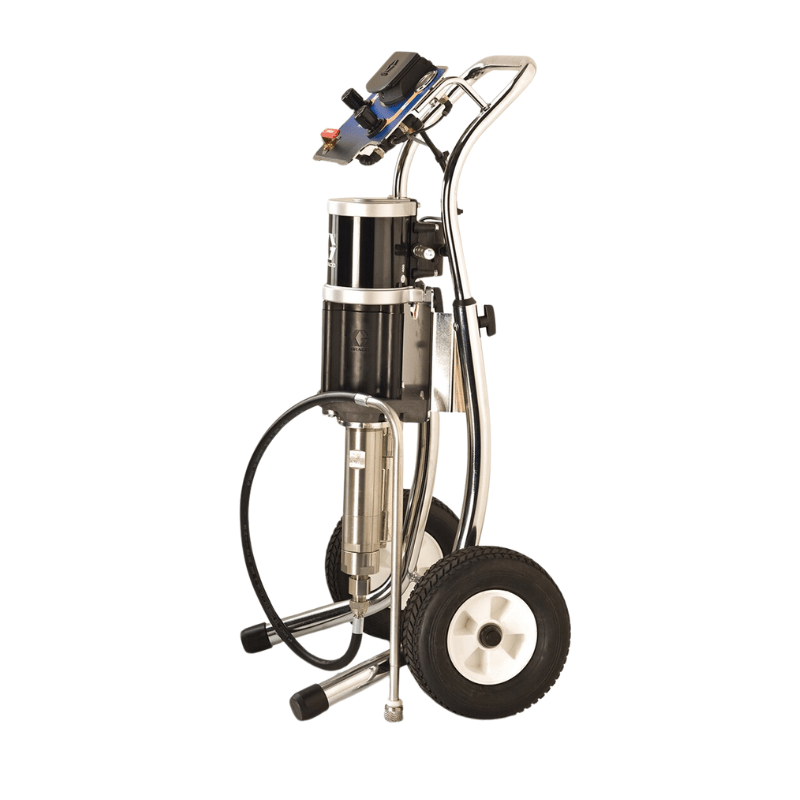

GRACO Merkur 15:1 Cart Mount Fluid Flow Pump
SKU: G15C75GRACO Merkur 15:1 Cart Mount Fluid Flow Pump
Regular price
$10,219.00 AUD
Sale price
$10,219.00 AUD
Regular price
$0.00 AUD
Unit price
per
Save $0
Sold out
Inclusive of GST.
Shipping calculated at checkout.
Holiday Break Announcement
Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
Holiday Break Announcement
Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
Holiday Break Announcement
Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
Holiday Break Announcement
Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
Holiday Break Announcement
Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
Holiday Break Announcement
Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
Holiday Break Announcement
Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
Holiday Break Announcement
Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
Other payment options
Delivery & Shipping
GRACO Merkur 15:1 Cart Mount Fluid Flow Pump
Regular price
From $10,219.00 AUD
Sale price
From $10,219.00 AUD
Regular price
$0.00 AUD
Unit price
per
Save $0
Sold out
Features
Graco 15:1 Merkur Pump Fluid Flow Cart Mount
Overview
Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.
- Proven to outperform and outlast other pumps in their class
- Highest technology air motor on the market
- Low air consumption for increased efficiency
- External valve access allows for easy servicing and online replacement to minimize downtime
Specifications
| COMPATIBLE MATERIAL | Waterborne, Solventborne, High Solids, Single Components, Topcoats, Varnish, Lacquer, Acid Catalysts, Enamel, UV Coating |
|---|---|
| FLUID INLET SIZE (CM) | 1.905 |
| FLUID INLET SIZE (IN) | 3/4 |
| FLUID INLET SIZE (MM) | 19.05 |
| FLUID INLET THREAD TYPE | NPT |
| FLUID OUTLET SIZE (CM) | 0.9525 |
| FLUID OUTLET SIZE (IN) | 3/8 |
| FLUID OUTLET SIZE (MM) | 9.525 |
| FLUID OUTLET THREAD TYPE | NPT |
| HOSE INLET DIAMETER (CM) | 0.476 |
| HOSE INLET DIAMETER (IN) | 3/16 |
| HOSE INLET DIAMETER (MM) | 4.76 |
| INCLUDES | Pump and Gun Air Controls |
| MAXIMUM AIR INLET PRESSURE (BAR) | 7 |
| MAXIMUM AIR INLET PRESSURE (KPA) | 700 |
| MAXIMUM AIR INLET PRESSURE (PSI) | 100 |
| MAXIMUM FLOW RATE (GPM) | 0.8 |
| MAXIMUM FLOW RATE (L/MIN) | 3 |
| MAXIMUM WORKING PRESSURE (BAR) | 103 |
| MAXIMUM WORKING PRESSURE (KPA) | 10300 |
| MAXIMUM WORKING PRESSURE (PSI) | 1500 |
| SPRAYER TYPE | High Pressure |
| WEIGHT (KG) | 29.9 |
| WEIGHT (LB) | 66 |
| WETTED MATERIAL | Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Nylon |
| SPRAY TYPE | No Applicator |
| MOUNT TYPE | Cart Mount |
| MODEL | Merkur |
| TYPE | Bare Package |
| PRODUCT TYPE | Bare Package |
| TECHNOLOGY TYPE | Airless |
| GUN INCLUDED | 0 |
| POWER SOURCE | Air |
| PRESSURE TYPE | High Pressure |
| PUMP TYPE | Pneumatic Piston Pump |
| GUN TYPE | No Applicator |
| GUN MODEL | No Applicator |
| PUMP RATIO | 15:1 |
| GUN TECHNOLOGY | Bare Package |
