GRACO Auto Bead Gun Air Switch
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Bundle the essentials.
Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.

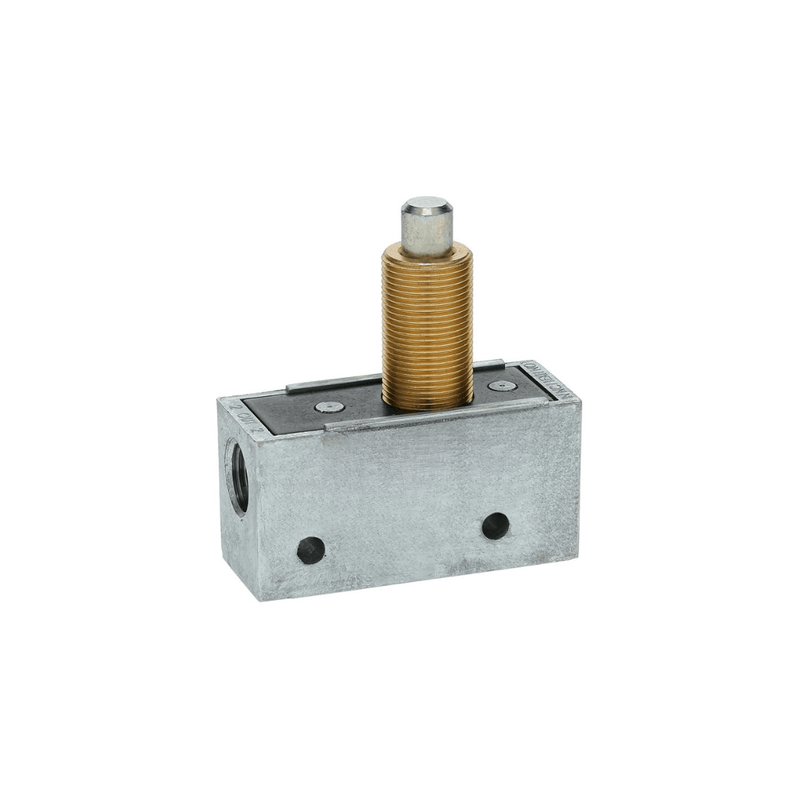

The Graco 16T646 Air Switch is the genuine OEM replacement valve that triggers the pneumatic bead delivery system on Graco line stripers. It's a 3-way pneumatic plunger valve that mounts behind the Flex Plus gun lever. Pull the trigger, the plunger opens the air path, and the auto bead guns fire in step with the paint gun for consistent bead coverage.
Being a genuine Graco part, it drops straight into the trigger bracket with no modification, so you keep the fit and air seal the machine was built around. Built for daily use in pavement marking.
Fitting: Align the new switch so the trigger bracket engages the push button, connect the air lines to the matching ports, then test the air function and confirm the bead gun fires before loading material.
Features
- Genuine OEM replacement: Direct fit to the trigger bracket, no rework needed.
- 3-way pneumatic plunger valve: Opens the air path to the auto bead guns the moment the lever is pulled.
- Synchronised bead firing: Keeps bead application in step with the paint gun for consistent coverage.
- Mounts behind the Flex Plus lever: Translates the trigger pull straight into pneumatic activation.
Specifications
| PART NUMBER | 16T646 |
|---|---|
| TYPE | 3-way pneumatic plunger air switch |
| FUNCTION | Triggers the auto bead gun air supply |
| MOUNTING | Behind the Flex Plus gun lever |
| SUPPLIED IN KIT | Graco 16R963 bead gun kit |
| FITS | LineLazer V 250SPS, LineLazer V 200HS |
Pressurised Bead System Installation Manual
