Graco 24:1 Merkur Electrostatic Spray Package Wall Mount
  • Graco 24:1 Merkur Electrostatic Spray Package Wall Mount
1 1

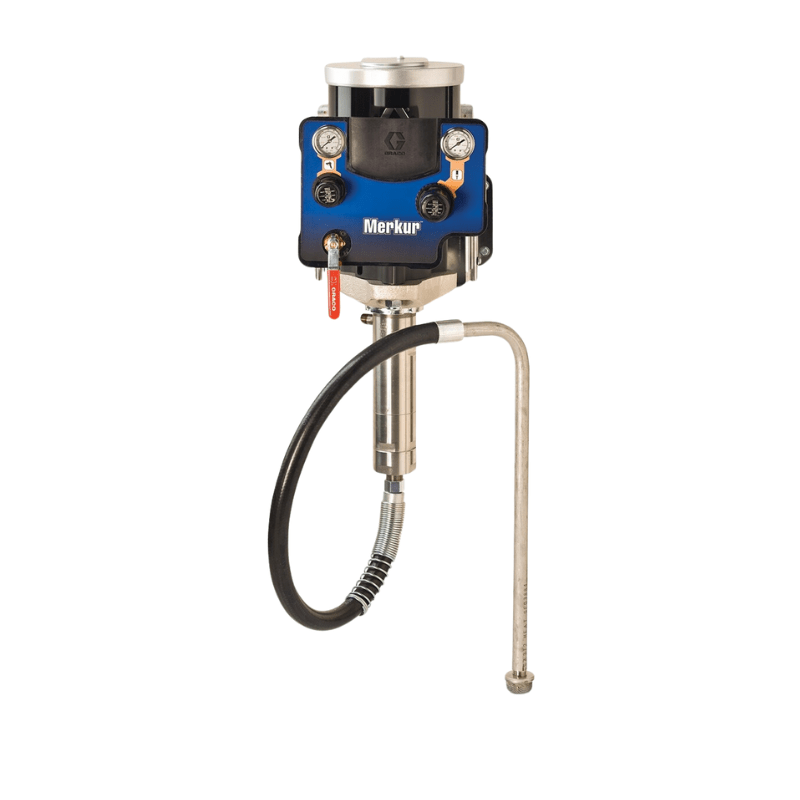

GRACO Merkur 24:1 Wall Mount Electrostatic Spray Package

SKU: G24W11

GRACO Merkur 24:1 Wall Mount Electrostatic Spray Package

$29,920.00 AUD
$29,920.00 AUD $0.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
Configuration

Other payment options

View full details
Graco 24:1 Merkur Electrostatic Spray Package Wall Mount

GRACO Merkur 24:1 Wall Mount Electrostatic Spray Package

From $29,920.00 AUD
From $29,920.00 AUD $0.00 AUD
Save $0
Sold out

Features

  • Proven to outperform and outlast other pumps in their class
  • Highest technology air motor on the market
  • Low air consumption for increased efficiency
  • External valve access allows for easy servicing and online replacement to minimize downtime

    • Graco 24:1 Merkur Electrostatic Spray Package Wall Mount

    Overview

    Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • GO Data Sheet Merkur ES Parts Breakout 344893EN-A
    • Graco Merkur Non-Heated Spray Packages Manual 312797EN-ZAD
    • Graco Merkur Electrostatic Spray Packages Manual 312798EN-V
    • Graco Merkur Heated Spray Packages Manual 313255EN-V
    • Graco Merkur Pump Assembly Manual 312794EN-M
    • Graco Merkur Displacement Pump Service Manual 312792EN-K
    • Graco NXT Air Motor Manual 312796EN-S
    • Graco Flat Line Spray System Kits Manual 3A1203EN-B
    • Graco Fluid Outlet Filter Manual 307273EN-ZAG
    • Graco Pro Xp Electrostatic Spray Gun Manual 3A2495EN-M
    • GO Brochure Graco Merkur High Performance Fine Finish Packages 340004EN-J

    Specifications

    CONVERTIBLE Non-Convertible
    FLUID INLET SIZE (CM) 2.54
    FLUID INLET SIZE (IN) 1
    FLUID INLET SIZE (MM) 25.4
    FLUID INLET THREAD TYPE NPT
    FLUID OUTLET SIZE (CM) 1.905
    FLUID OUTLET SIZE (IN) 3/4
    FLUID OUTLET SIZE (MM) 19.05
    FLUID OUTLET THREAD TYPE NPT
    INCLUDES Pump and Gun Air Controls, Gun Hose, Suction Hose, Fluid Filter
    MAXIMUM HOSE LENGTH (FT) 25
    MAXIMUM HOSE LENGTH (M) 7.6
    MAXIMUM WORKING PRESSURE (BAR) 165
    MAXIMUM WORKING PRESSURE (KPA) 16500
    MAXIMUM WORKING PRESSURE (PSI) 2400
    MODEL Merkur
    MOTOR TYPE Pneumatic
    NUMBER OF GUNS 1
    POWER SOURCE Air
    PUMP TYPE Pneumatic Piston Pump
    WEIGHT (KG) 36.3
    WEIGHT (LB) 80
    WETTED MATERIAL Stainless Steel, Tungsten Carbide, UHMWPE, PTFE, PEEK, FEP, Acetal, Nylon, Polyethylene
    SPRAY TYPE Electrostatic
    TYPE Air-Assisted Airless Sprayer
    MAXIMUM WORKING PRESSURE (MPA) 16.5
    PRESSURE TYPE High Pressure
    MOUNT TYPE Wall Mount
    PUMP RATIO 24:1
    GUN TECHNOLOGY Electrostatic
    GUN TYPE Electrostatic
    GUN INCLUDED 1
    PRODUCT TYPE Spray Package
    GUN MODEL Pro Xp 85 kV Smart
    TECHNOLOGY TYPE Air-Assisted

      Features

    • Proven to outperform and outlast other pumps in their class
    • Highest technology air motor on the market
    • Low air consumption for increased efficiency
    • External valve access allows for easy servicing and online replacement to minimize downtime
