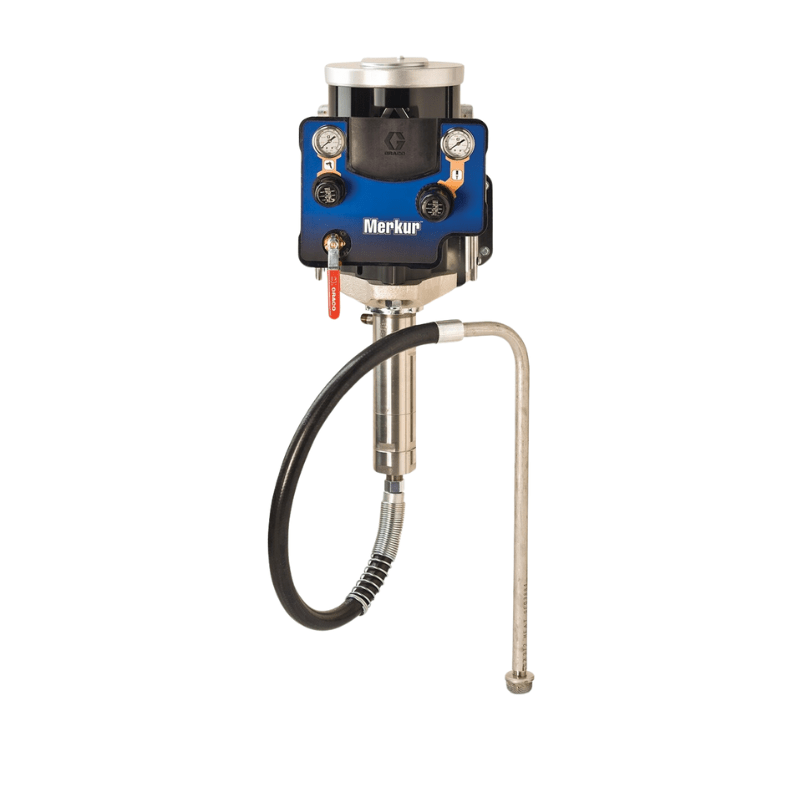

Graco 28:1 Merkur Pump Wall Mount Only

Overview

Wall Mount Only. Designed to allow your MERKUR pump to be securely mounted to the wall. To configure a complete system visit Merkur Spray Packages.

Features

Proven to outperform and outlast other pumps in their class

Highest technology air motor on the market

Low air consumption for increased efficiency

External valve access allows for easy servicing and online replacement to minimize downtime

Specifications

MODEL	Merkur
PRODUCT TYPE	Bare Package
PUMP TYPE	Pneumatic Piston Pump
PUMP RATIO	28:1
MOTOR TYPE	Pneumatic
POWER SOURCE	Air
PRESSURE TYPE	High Pressure
CONVERTIBLE	Non-Convertible
MAXIMUM WORKING PRESSURE	193 BAR \| 2800 PSI
MAXIMUM FLOW RATE	7.5 LPM \| 2 GPM
FLUID INLET SIZE	25.4 MM \| 1 IN
FLUID INLET THREAD TYPE	NPT
FLUID OUTLET SIZE	12.7 MM \| 1/2 IN
FLUID OUTLET THREAD TYPE	NPT
HOSE INLET DIAMETER	5 MM \| 3/16 IN
MAXIMUM HOSE LENGTH	7.5 M \| 25 FT
WETTED MATERIAL	Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Nylon
WEIGHT	34 KG \| 75 LB
MOUNT TYPE	Wall Mount
GUN INCLUDED	No
