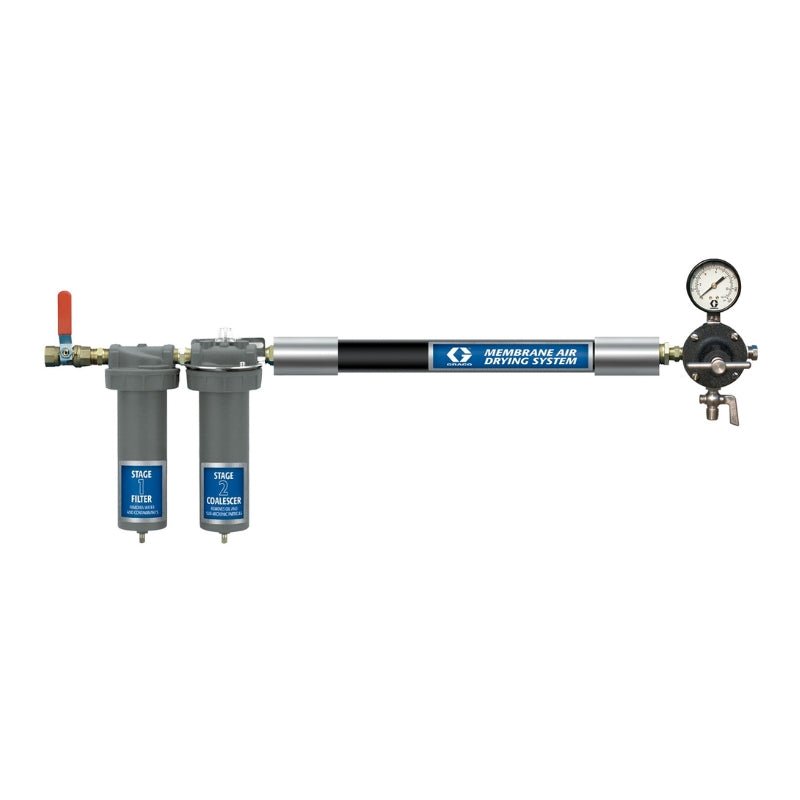

GRACO 3-Stage Membrane Drying System

SKU: 234418

GRACO 3-Stage Membrane Drying System

$4,103.00 AUD
$4,103.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Other payment options

View full details
GRACO 3 - Stage Membrane Drying System - GO Industrial - 234418

GRACO 3-Stage Membrane Drying System

$4,103.00 AUD
$4,103.00 AUD
Save $0
Sold out

Details

The membrane drying system allows you to provide dry, clean air to your entire finishing system to achieve a high quality finish. Also made available is an extensive range of high quality filter-regulator-lubricators (FRLs), so clean, lubricated air reaches your pneumatic equipment at the correct pressure – regardless of system fluctuations.

Features

  • Membrane eliminates the cost and maintenance of desiccant systems
  • Ensures equipment is supplied with clean, dry air
  • Multi-stage filter removes particles down to 0.01 micron
  • Membrane removes moisture from air
  • Includes shut-off valve and pressure regulator
  • Filter indicator signals replacement to ensure optimal efficiency

    • Graco 3-Stage Membrane Drying System

    Overview

    Air preparation is key to controlling the finishing process and prolonging the life of finishing equipment. Graco offers a wide range of air preparation equipment to meet all of your finishing needs.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • Graco Air Regulators Manual 309924EN-L
    • Graco Membrane Air Drying System Manual 309920EN-D
    • Graco Membrane Drying System Data Sheet

    Specifications

    AIR INLET SIZE (CM) 1.27
    AIR INLET SIZE (IN) 1/2
    AIR INLET SIZE (MM) 12.7
    AIR INLET THREAD GENDER Female
    AIR INLET THREAD TYPE NPT
    AIR OUTLET GENDER Female
    AIR OUTLET SIZE (CM) 1.27
    AIR OUTLET SIZE (IN) 1/2
    AIR OUTLET SIZE (MM) 12.7
    AIR OUTLET THREAD TYPE NPT
    INCLUDES Air Filter with Auto Drain, Coalescer with Auto Drain, Membrane Air Dryer, Air Regulator
    MATERIAL REMOVED Contaminants, Oil, Particles, Water
    MAXIMUM OPERATING TEMPERATURE (°C) 65
    MAXIMUM OPERATING TEMPERATURE (°F) 150
    MAXIMUM WORKING PRESSURE (BAR) 11
    MAXIMUM WORKING PRESSURE (KPA) 1100
    MAXIMUM WORKING PRESSURE (PSI) 160
    TYPE Membrane Drying System
    MAXIMUM WORKING PRESSURE (MPA) 1.1
    MODEL Sharpe

      Features

    • Membrane eliminates the cost and maintenance of desiccant systems
    • Ensures equipment is supplied with clean, dry air
    • Multi-stage filter removes particles down to 0.01 micron
    • Membrane removes moisture from air
    • Includes shut-off valve and pressure regulator
    • Filter indicator signals replacement to ensure optimal efficiency
