Graco 30:1 Merkur Pump Fluid Flow Wall Mount
  • Graco 30:1 Merkur Pump Fluid Flow Wall Mount
1 1

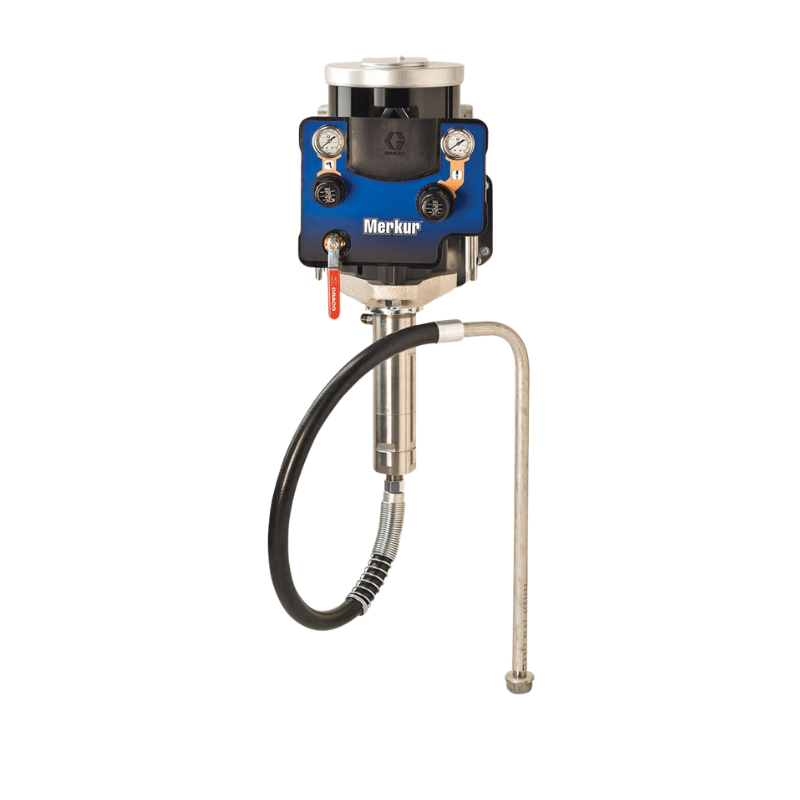

GRACO Merkur 30:1 Wall Mount Fluid Flow Pump 1.2 GPM 4.5 LPM

SKU: G30W51

GRACO Merkur 30:1 Wall Mount Fluid Flow Pump 1.2 GPM 4.5 LPM

$6,908.00 AUD
$6,908.00 AUD $0.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
Configuration

Other payment options

View full details
Graco 30:1 Merkur Pump Fluid Flow Wall Mount

GRACO Merkur 30:1 Wall Mount Fluid Flow Pump 1.2 GPM 4.5 LPM

From $6,908.00 AUD
From $6,908.00 AUD $0.00 AUD
Save $0
Sold out

Features

  • Proven to outperform and outlast other pumps in their class
  • Highest technology air motor on the market
  • Low air consumption for increased efficiency
  • External valve access allows for easy servicing and online replacement to minimize downtime

    • Graco 30:1 Merkur Pump Fluid Flow Wall Mount

    Overview

    Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • Graco Merkur Non-Heated Spray Packages Manual 312797EN-ZAD
    • Graco Merkur Electrostatic Spray Packages Manual 312798EN-V
    • Graco Merkur Heated Spray Packages Manual 313255EN-V
    • Graco Merkur Pump Assembly Manual 312794EN-M
    • Graco Merkur Displacement Pump Service Manual 312792EN-K
    • Graco NXT Air Motor Manual 312796EN-S
    • Graco Flat Line Spray System Kits Manual 3A1203EN-B
    • GO Brochure Graco Merkur High Performance Fine Finish Packages 340004EN-J

    Specifications

    CONVERTIBLE Non-Convertible
    FLUID INLET SIZE (IN) 3/4
    FLUID INLET SIZE (MM) 19.05
    FLUID INLET THREAD TYPE NPT
    FLUID OUTLET SIZE (IN) 3/8
    FLUID OUTLET SIZE (MM) 9.525
    FLUID OUTLET THREAD TYPE NPT
    HOSE INLET DIAMETER (CM) 0.5
    HOSE INLET DIAMETER (IN) 3/16
    HOSE INLET DIAMETER (MM) 5
    MAXIMUM FLOW RATE (GPM) 1.2
    MAXIMUM FLOW RATE (L/MIN) 4.5
    MAXIMUM HOSE LENGTH (FT) 25
    MAXIMUM HOSE LENGTH (M) 7.5
    MAXIMUM WORKING PRESSURE (PSI) 3000
    MAXIMUM WORKING PRESSURE (KPA) 20700
    POWER SOURCE Air
    MAXIMUM WORKING PRESSURE (MPA) 20.7
    MODEL Merkur
    MAXIMUM WORKING PRESSURE (BAR) 207
    WEIGHT (KG) 43
    WEIGHT (LB) 94
    PUMP TYPE Pneumatic Piston Pump
    TYPE Bare Package
    MOTOR TYPE Pneumatic
    WETTED MATERIAL Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Nylon
    NUMBER OF GUNS 0
    PRESSURE TYPE High Pressure
    MOUNT TYPE Wall Mount
    GUN TECHNOLOGY Bare Package
    GUN TYPE No Applicator
    GUN INCLUDED 0
    GUN MODEL No Applicator
    PUMP RATIO 30:1
    PRODUCT TYPE Bare Package

      Features

    • Proven to outperform and outlast other pumps in their class
    • Highest technology air motor on the market
    • Low air consumption for increased efficiency
    • External valve access allows for easy servicing and online replacement to minimize downtime
