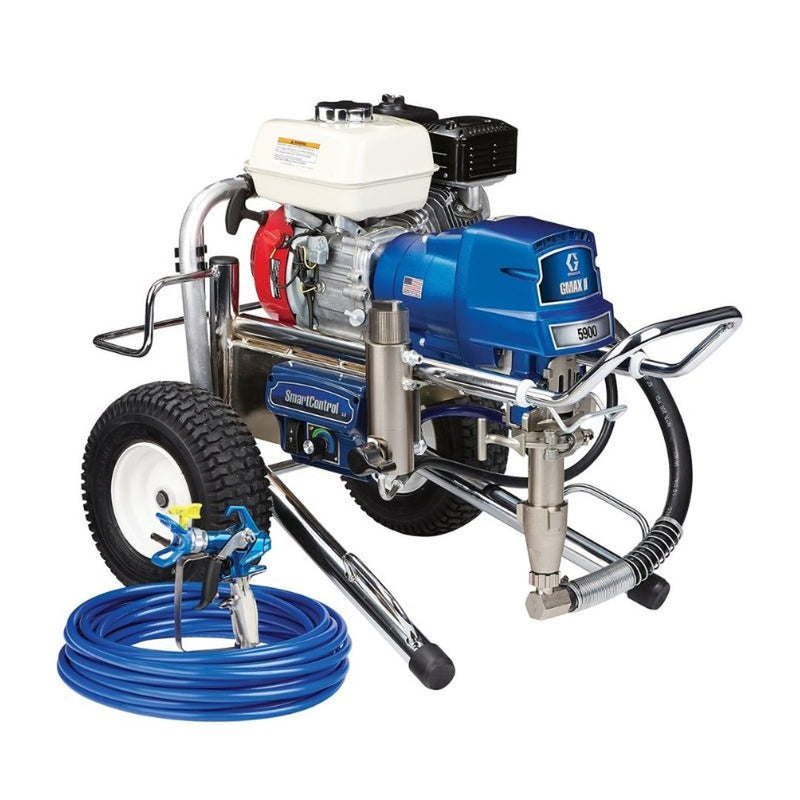

GRACO GMAX II 5900 Lo-Boy Standard Series Gas Airless Sprayer

SKU: 17E829

GRACO GMAX II 5900 Lo-Boy Standard Series Gas Airless Sprayer

$12,650.00 AUD
$12,650.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Other payment options

View full details
GRACO GMAX II 5900 Lo - Boy Standard Series Gas Airless Sprayer - GO Industrial - 17E829

GRACO GMAX II 5900 Lo-Boy Standard Series Gas Airless Sprayer

$12,650.00 AUD
$12,650.00 AUD
Save $0
Sold out

Details

Everyday Reliability. Graco GMAX Standard Series gas-powered airless paint sprayers deliver unmatched durability and performance, with the capability to handle the widest range of tip sizes, longer hose lengths and heavier coatings with ease.

Includes:

  • Contractor Gun
  • RAC X 517 SwitchTip and Guard
  • 1/4 in x 50 ft (6.4 mm x 15 m) BlueMax II Airless Hose

Features

Endurance Chromex Piston Pump

  • The most reliable pump
  • Lasts 2X Longer than the next leading brand
  • Repack the pump in minutes with the new QuikPak Cartridge System
  • QuikChange pump design allows you to swap the pump easily on the job
  • Faster cleaning with the QuikAccess intake foot valve

ProConnect 2 Pump Replacement System

  • Pump swaps in 1-minute or less – no tools, pins or parts to lose
  • Eliminate costly downtime

SmartControl 3.0

  • Consistent spray fan & pressure control
  • Handles the widest range of coatings with the most consistent fan pattern
  • Lowest dead band at any pressure

Precision Advantage Drive

  • The longest lasting drive
  • Hardened steel gears provide extremely quiet operation
  • Lifetime Warranty

Easy Out Pump Filter

  • Easy maintenance & less clogging
  • Exclusive inside-out filtering won't collapse to ensure a quality finish
  • Vertical design for less mess

Heavy-Duty Prime Valve

  • Maintenance-free design withstands high-pressure dumping

Durable Cart Design

  • Rugged and easy-to-maneuver
  • Thick chrome over steel and pneumatic wheels for tough jobsite conditions
  • Convenient retractable bucket hook allows for easy movement on the job

Honda® Engine

  • Reliable, powerful & easy-to-start
  • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • Contractor Preferred

Contractor PC Spray Gun

  • All-day comfort & control
  • Lightest weight gun in its class
  • Up to 50% lighter trigger pull force
  • E-Z Fit adjustable trigger length
  • Complete gun rebuild in seconds with ProConnect cartridge

Jobsite Ready

  • Includes RAC X SwitchTip and 50 ft of BlueMax II hose

GMAX II 5900 Standard Series Gas Airless Sprayer, Lo-Boy

Overview

With the ability to spray up to 1.6 gallons per minute, the GMAX II 5900 is the industry standard for the professional contractor who sprays a wide variety of coatings on residential, commercial and industrial jobs.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

Specifications

CONVERTIBLE Non-Convertible
ENGINE BRAND Honda
ENGINE SIZE (HP) 6.5
FEATURES Endurance Chromex Pump, SmartControl 3.0, Honda Engine, Advantage Drive, ProConnect 2, Easy Out Filter, Heavy-Duty Prime Valve, Contractor PC Gun
FLUID INLET SIZE (IN) 1-5/16
FLUID INLET SIZE (MM) 33.34
FLUID INLET THREAD TYPE UN-2A
FLUID OUTLET SIZE (IN) 1/4
FLUID OUTLET SIZE (MM) 6.35
FLUID OUTLET THREAD TYPE NPSM
FRAME CONFIGURATION Lo-Boy
HOSE INLET DIAMETER (CM) 0.635
HOSE INLET DIAMETER (IN) 1/4
HOSE INLET DIAMETER (MM) 6.35
INCLUDES Contractor PC 喷枪, Contractor PC ガン, Contractor PC Gun, Contractor PC 건, RAC X LTX 517 喷嘴, RAC X LTX 517 スプレーチップ, RAC X LP 517 Spray Tip, RAC X LTX 517 스프레이 팁, RAC X 喷嘴座, RAC X ガード, RAC X Guard, RAC X 가드, 1/4 英寸 x 50 英尺 BlueMax II 无气软管, 1/4 x 50 ft BlueMax II エアレスホース, 1/4 in x 50 ft BlueMax II Airless Hose, 1/4 in x 50 ft BlueMax II 에어리스 호스, 喉部密封液 4 盎司, TSL 4 オンス, TSL 4 oz, TSL 4 oz
INLET PAINT STRAINER 8 Mesh Stainless Steel Screen
MAXIMUM FLOW RATE (GPM) 1.6
MAXIMUM FLOW RATE (L/MIN) 6.06
MAXIMUM SOUND PRESSURE LEVEL (DB(A)) 96
MAXIMUM TIP SIZE (IN) 0.043
MAXIMUM TIP SIZE GUN 1 (IN) 0.043
MAXIMUM WORKING PRESSURE (PSI) 3300
MAXIMUM WORKING PRESSURE (KPA) 22800
POWER RATING (HP) 6.5
POWER SOURCE Gas
POWER RATING (KW) 4.85
POWER RATING (W) 4847
MAXIMUM WORKING PRESSURE (MPA) 22.8
PRESSURE CONTROL TYPE SmartControl 3.0
OVERALL WIDTH (MM) 620
MODEL GMAX II
MAXIMUM WORKING PRESSURE (BAR) 228
OVERALL HEIGHT (CM) 69.1
OVERALL HEIGHT (IN) 27.2
WEIGHT (KG) 66
WEIGHT (LB) 144
OVERALL HEIGHT (MM) 691
OVERALL LENGTH (CM) 119.1
OVERALL WIDTH (IN) 24
OVERALL LENGTH (IN) 46.9
SERIES 5900
OVERALL LENGTH (MM) 1191
OVERALL WIDTH (CM) 62
PUMP TYPE Endurance
TYPE Airless Sprayer
WETTED MATERIAL Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
OUTLET PAINT FILTER 60 Mesh Stainless Steel Screen
PUMP SLEEVE MATERIAL Stainless Steel
PUMP MOUNT TYPE ProConnect 2
PUMP ROD TYPE Chromex
NUMBER OF GUNS 3
MAXIMUM TIP SIZE GUN 2 (IN) 0.029
RECOMMENDED ANNUAL USAGE Up to 1,000 gallons per week
MAXIMUM TIP SIZE GUN 3 (IN) 0.023
POWER RATING (CC) 200
PRODUCT SERIES Standard

    Features

    Endurance Chromex Piston Pump

    • The most reliable pump
    • Lasts 2X Longer than the next leading brand
    • Repack the pump in minutes with the new QuikPak Cartridge System
    • QuikChange pump design allows you to swap the pump easily on the job
    • Faster cleaning with the QuikAccess intake foot valve

    ProConnect 2 Pump Replacement System

    • Pump swaps in 1-minute or less – no tools, pins or parts to lose
    • Eliminate costly downtime

    SmartControl 3.0

    • Consistent spray fan & pressure control
    • Handles the widest range of coatings with the most consistent fan pattern
    • Lowest dead band at any pressure

    Precision Advantage Drive

    • The longest lasting drive
    • Hardened steel gears provide extremely quiet operation
    • Lifetime Warranty

    Easy Out Pump Filter

    • Easy maintenance & less clogging
    • Exclusive inside-out filtering won't collapse to ensure a quality finish
    • Vertical design for less mess

    Heavy-Duty Prime Valve

    • Maintenance-free design withstands high-pressure dumping

    Durable Cart Design

    • Rugged and easy-to-maneuver
    • Thick chrome over steel and pneumatic wheels for tough jobsite conditions
    • Convenient retractable bucket hook allows for easy movement on the job

    Honda® Engine

    • Reliable, powerful & easy-to-start
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
    • Contractor Preferred

    Contractor PC Spray Gun

    • All-day comfort & control
    • Lightest weight gun in its class
    • Up to 50% lighter trigger pull force
    • E-Z Fit adjustable trigger length
    • Complete gun rebuild in seconds with ProConnect cartridge

    Jobsite Ready

    • Includes RAC X SwitchTip and 50 ft of BlueMax II hose
