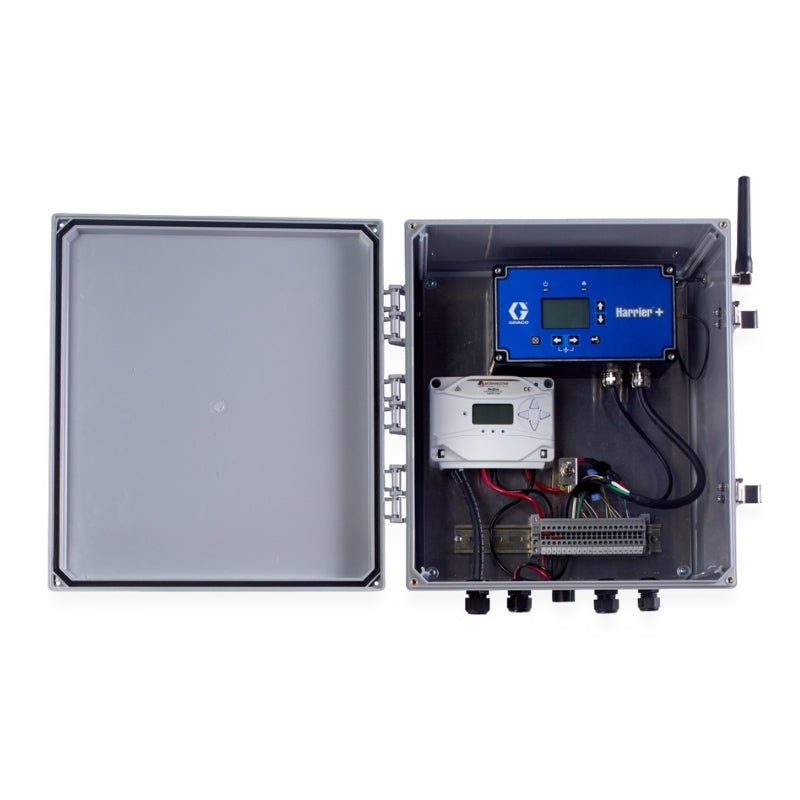

Graco DC Control Box with Harrier+ Controller
  • Graco DC Control Box with Harrier+ Controller
1 1
  • Graco Chemical Injection Solar Control Box 3A4747EN-H
  • Graco Harrier Chemical Injection Controller Manual 3A4130EN-J
  • Graco Modular Control Boxes Data Sheet 3G0051EN-A
UPC Product: 00755652666769
Family Code: FAMOCN
Unit of Measure: EA
Height: 0 IN   |  0 CM
Length: 0 IN   |  0 CM
Width: 0 IN   |  0 CM
Volume: 0 FT3   |  0 M3
Chargeable Weight: 0 LBS  | 0 KG

Technical Specifications

TYPE DC Control Box
VOLTAGE (V DC) 12
INCLUDES Harrier+ GSM 美国控制器；ASC 12/12 充电控制器, Harrier+ GSM USA Controller, Controlador Harrier+ GSM USA, ASC 12/12 Charge Controller, controlador de carga ASC 12/12
  • NEMA 4X rated box
  • For DC power only
  • Separate battery box that holds up to two batteries (Part #: B32808)
  • UV resistant polycarbonate construction (UL-5VA rated)
  • Lockable hinged door
  • Configured for a pole mount
  • Additional dual battery boxes can be linked (Part #: B32809)
  • On/Off switch

Graco DC Control Box with Harrier+ Controller Range

SKU: B52N04

Graco DC Control Box with Harrier+ Controller Range

$5,089.00 AUD
$5,089.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Connection
Solar Charge Controller
Number of Panels

Other payment options

At a Glance

When specifying the correct chemical injection system, it’s important to ensure the correct control box configuration is used to ensure proper operation. Graco offers plastic or steel boxes, AC and DC powered, plus standard options all the way up to NEMA-rated box options to help meet the chemical injection application requirements. The Modular Control Boxes are customizable so the correct configuration can be achieved based on your application needs.

        • Graco Chemical Injection Solar Control Box 3A4747EN-H
        • Graco Harrier Chemical Injection Controller Manual 3A4130EN-J
        • Graco Modular Control Boxes Data Sheet 3G0051EN-A
        UPC Product: 00755652666769
        Family Code: FAMOCN
        Unit of Measure: EA
        Height: 0 IN   |  0 CM
        Length: 0 IN   |  0 CM
        Width: 0 IN   |  0 CM
        Volume: 0 FT3   |  0 M3
        Chargeable Weight: 0 LBS  | 0 KG

        Technical Specifications

        TYPE DC Control Box
        VOLTAGE (V DC) 12
        INCLUDES Harrier+ GSM 美国控制器；ASC 12/12 充电控制器, Harrier+ GSM USA Controller, Controlador Harrier+ GSM USA, ASC 12/12 Charge Controller, controlador de carga ASC 12/12
        • NEMA 4X rated box
        • For DC power only
        • Separate battery box that holds up to two batteries (Part #: B32808)
        • UV resistant polycarbonate construction (UL-5VA rated)
        • Lockable hinged door
        • Configured for a pole mount
        • Additional dual battery boxes can be linked (Part #: B32809)
        • On/Off switch
        View full details
