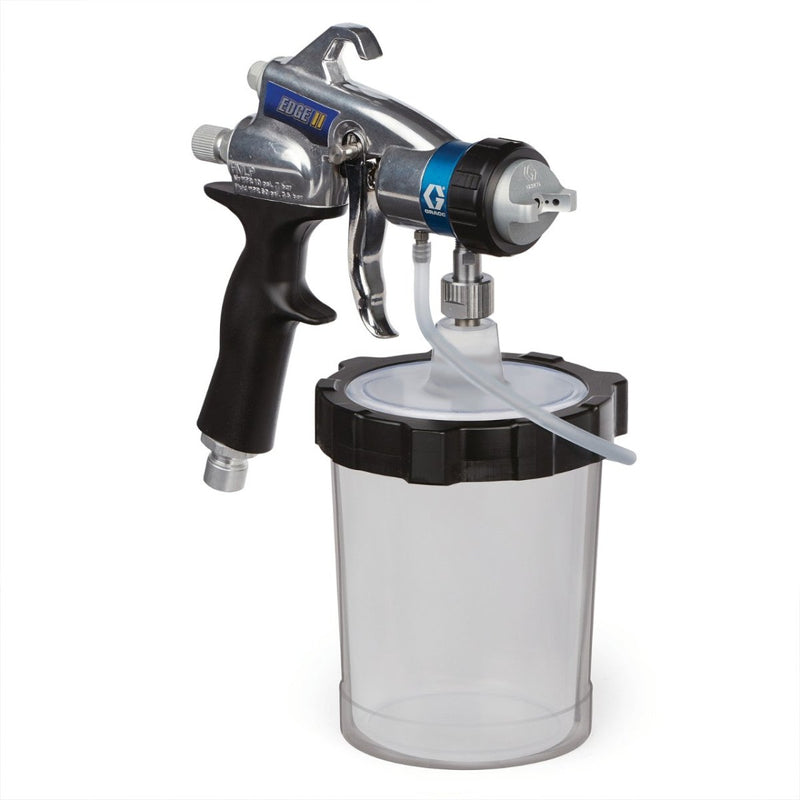

GRACO EDGE II HVLP Gun with FlexLiner System

SKU: 17P481

GRACO EDGE II HVLP Gun with FlexLiner System

$1,199.00 AUD
$1,199.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Other payment options

View full details
GRACO EDGE II HVLP Gun with FlexLiner System - GO Industrial - 17P481

GRACO EDGE II HVLP Gun with FlexLiner System

$1,199.00 AUD
$1,199.00 AUD
Save $0
Sold out

Features

  • Integrated Flow Control
    • Combines material and air flow into one simple control
    • Optimized to spray the majority of fine finish applications
    • Quick adjustment with 360° rotation and indicator for repeatable spray setting
  • Adjustable Air Cap
    • 3-position rotation to change spray pattern
    • Conveniently located at the front of the gun
    • Allows more air pressure into the material cup to spray heavier material
    • Easily clean and reuse versus replace
    • Located by gun to reduce clogged valves due to paint contamination
  • EasyGlide 2-Finger Trigger and Ergonomic Handle
    • Trigger has up to 75% lighter pull than competition
    • 2-finger trigger design gives more control while spraying
    • Form-fitted handle stays cool to the touch for extended use
  • Quick Release Needle Design
    • Change out needles from the front of the gun with just a click
    • Easy to change, easy to clean with no tools needed
    • Remove front air cap and nozzle
    • Slide trigger lever to release needle
    • Pull needle out

Graco EDGE II HVLP Gun with FlexLiner System

Overview

Maximize your spraying performance with the innovative HVLP EDGE II Gun. Cutting edge technology such as intuitive gun controls, Quick Release fluid set, and optimized air pressure and airflow will help you achieve the highest quality finish available in fine finish spraying.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • Graco Fine Finish Sprayers Brochure 344400EN-G

    Specifications

    COMPATIBLE MATERIAL Varnish, Enamel, Latex, Stains
    FOR USE WITH FinishPro HVLP, FinishPro HVLP Sprayers
    GUN ACTIVATION Manual
    GUN TYPE HVLP Gun
    GUN WEIGHT (OZ) 20
    INCLUDES 1 qt FlexLiner Cup, #3 Quick Release Fluid Set
    MAXIMUM AIR PRESSURE (BAR) 0.7
    MAXIMUM AIR PRESSURE (KPA) 70
    MAXIMUM AIR PRESSURE (PSI) 10
    MAXIMUM FLUID PRESSURE (BAR) 3.5
    MAXIMUM FLUID PRESSURE (KPA) 350
    MAXIMUM FLUID PRESSURE (PSI) 50
    MODEL HVLP
    SERIES EDGE II
    TRIGGER TYPE Two-Finger
    TYPE Spray Gun
    SPRAY TYPE HVLP
    SOUND POWER LEVEL (DB(A)) 65
    SOUND PRESSURE LEVEL (DB(A)) 65
    MAXIMUM FLUID PRESSURE (MPA) 0.35
    MAXIMUM AIR PRESSURE (MPA) 0.07
    MAXIMUM AIR INLET PRESSURE (BAR) 0.7
    MAXIMUM AIR INLET PRESSURE (KPA) 70
    MAXIMUM AIR INLET PRESSURE (PSI) 10
    MAXIMUM AIR INLET PRESSURE (MPA) 0.07

      Features

      • Integrated Flow Control
        • Combines material and air flow into one simple control
        • Optimized to spray the majority of fine finish applications
        • Quick adjustment with 360° rotation and indicator for repeatable spray setting
      • Adjustable Air Cap
        • 3-position rotation to change spray pattern
        • Conveniently located at the front of the gun
        • Allows more air pressure into the material cup to spray heavier material
        • Easily clean and reuse versus replace
        • Located by gun to reduce clogged valves due to paint contamination
      • EasyGlide 2-Finger Trigger and Ergonomic Handle
        • Trigger has up to 75% lighter pull than competition
        • 2-finger trigger design gives more control while spraying
        • Form-fitted handle stays cool to the touch for extended use
      • Quick Release Needle Design
        • Change out needles from the front of the gun with just a click
        • Easy to change, easy to clean with no tools needed
        • Remove front air cap and nozzle
        • Slide trigger lever to release needle
        • Pull needle out
