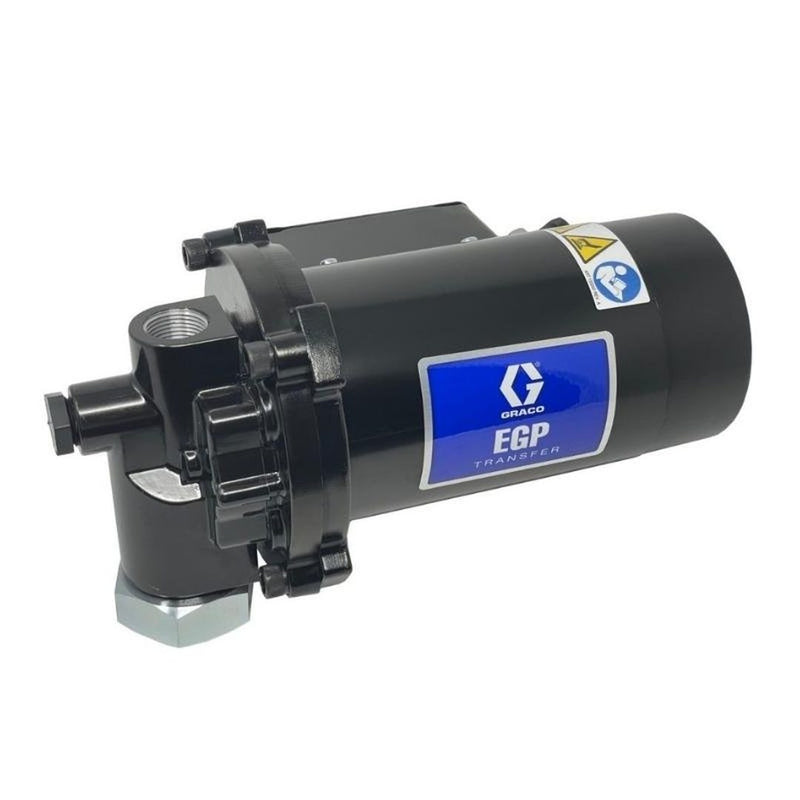

GRACO EGP 12 VDC Oil Transfer Pump 14.4lpm 65psi
Regular price
$2,431.00 AUD
Sale price
$2,431.00 AUD
Regular price
Unit price
per
Save $0
Sold out
Features
Graco EGP 12 VDC Oil Transfer Pump 14.4lpm 65psi
Overview
Choose cost-saving convenience with the all-new Graco EGP electric pumps. Attach the EGP transfer pump directly to roll-around barrels for more mobility in more places. These pumps offer the same powerful, high-quality performance you’ve come to expect from Graco — only for less operating cost and more convenience.
Specifications
WETTED PARTS | Zinc-Plated Carbon Steel, Stainless Steel, Galvanized Steel, Aluminum, Nitrile Rubber, PVC, PVC Cement |
COMPATIBLE MATERIAL | Oil, Hydraulic Fluid, Antifreeze |
INLET THREAD GENDER | Female |
INLET THREAD TYPE | NPT |
MAXIMUM FLOW RATE (GPM) | 4 |
MAXIMUM WORKING PRESSURE (PSI) | 65 |
OUTLET THREAD GENDER | Female |
OVERALL DEPTH (IN) | 12.5 |
OVERALL HEIGHT (IN) | 8 |
OVERALL WIDTH (IN) | 6.75 |
POWER RATING (HP) | 0.5 |
VOLTAGE (V DC) | 12 |
FLUID PRESSURE CONTROL TYPE | Internal Bypass |
INLET THREAD SIZE (IN) | 1 |
TYPE | Gear Pump Package |
APPLICATION | Oil |
POWER TYPE | Electric |
MAXIMUM WORKING PRESSURE (MPA) | 0.5 |
OVERALL DEPTH (MM) | 317.5 |
MAXIMUM FLOW RATE (L/MIN) | 15.1 |
OVERALL HEIGHT (MM) | 203.2 |
OVERALL WIDTH (MM) | 171.4 |
MAXIMUM WORKING PRESSURE (BAR) | 4.5 |
OUTLET THREAD SIZE | 0.75 |
MAXIMUM SPEED (RPM) | 1750 |
POWER RATING (W) | 360 |
MODEL | EGP |
- Electrical Flexibility - Available in 12 VDC and 115 VAC power options.
- Smooth Fluid Flow 8 gpm (30 lpm) - Output flow is continuous and non-pulsating up to 8 gpm (30 lpm).
- Heavy-Duty Motor with Long Life - Industrial-grade electric motors with over-temperature protection on 115 VAC models.
- Consistent Pressure - Built-in fluid bypass valve protects pump and downstream components.
- Pump Protection - Includes inlet strainer to keep larger debris out of pump housing and extend pump life.
- Plug and Play - Self-priming, precision machined pump design.
