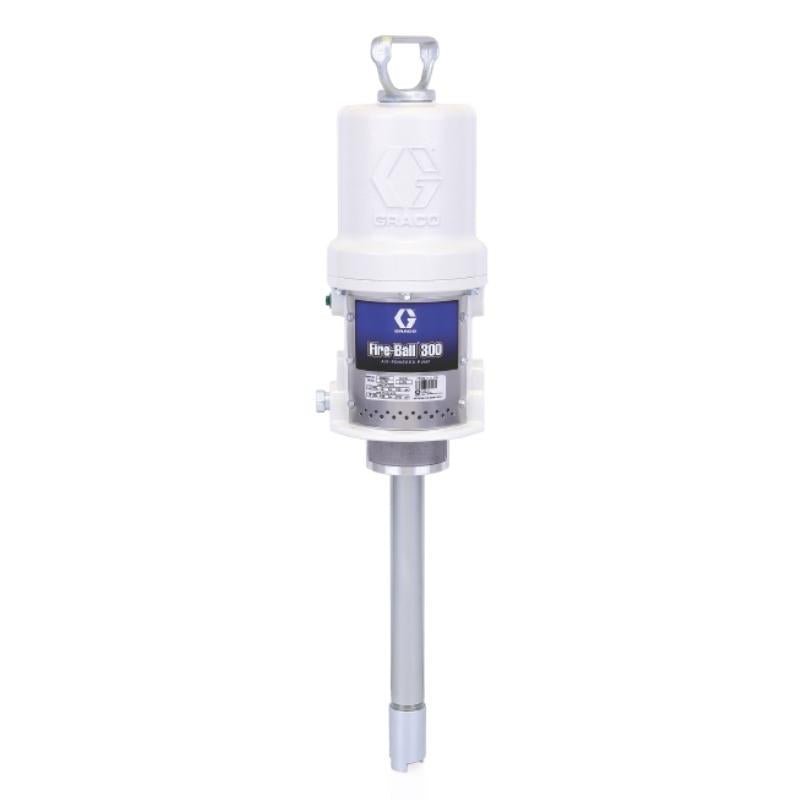

GRACO Fire-Ball 300 15:1 Grease Pumps

SKU: 206405

GRACO Fire-Ball 300 15:1 Grease Pumps

Regular price $3,212.00 AUD
Sale price $3,212.00 AUD Regular price
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Product

Other payment options

View full details
GRACO Fire - Ball 300 15:1 Grease Pumps - GO Industrial - 206405

GRACO Fire-Ball 300 15:1 Grease Pumps

Regular price From $3,212.00 AUD
Sale price $3,212.00 Regular price
Sold out

Details

Install the Fire-Ball 300 15:1 in high pressure, medium volume undercoating and rust-proofing applications such as automotive dealerships, fast lube centers, and service shops.

Features

  • Reliable Flow: A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
  • Durable: Thick cast aluminum air motor housing offers unmatched durability.
  • Fewer Repairs: Fewer moving parts in the air motor assembly means less downtime and low repair cost.
  • Extended Seal Life: In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
  • Reduce Downtime: Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
  • Superior Sealing: Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
  • Reduced Icing: Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
  • Corrosion-Resistant: Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
  • Graco Fire-Ball 300 15:1 Grease Pumps

    Overview

    As the mainstay pump in the industry for decades, the reputation of Graco Fire-Ball, from GO Industrial, is unrivalled. Built to withstand the test of time with fewer moving parts, these flagship pumps are built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Warranty

      Read our complete warranty terms & conditions here.

      Warranty

      Read our complete warranty terms & conditions here.

      Secure Payment

      All our online payment methods are secured.

      Secure Payment

      All our online payment methods are secured.

      Specifications

    • Approx Free Flow Rate @ 100 psi - 3.4kg / min
    • Continuous Duty Flow Rate - 0.32kg / min
    • Air Inlet - 3/8" NPT (F)
    • Fluid Outlet - 1/4" NPT (F)
    • Air Operation Range - 40-180 psi
    • Max Fluid - 2700 PSI
    • TYPE Pneumatic Piston Pump
      AIR INLET SIZE (CM) 0.9525
      AIR INLET SIZE (IN) 3/8
      AIR INLET SIZE (MM) 9.525
      AIR INLET THREAD GENDER Female
      AIR INLET THREAD TYPE NPT
      AIR MOTOR EFFECTIVE DIAMETER (IN) 3
      APPLICATION Industrial
      COMPATIBLE MATERIAL Grease, Rustproofing, Undercoating
      CYCLES PER GALLON 90
      FLUID OUTLET SIZE (CM) 0.635
      FLUID OUTLET SIZE (IN) 1/4
      FLUID OUTLET SIZE (MM) 6.35
      FLUID OUTLET THREAD GENDER Female
      FOR USE WITH 180, 180, 180, 180
      MAXIMUM AIR INLET PRESSURE (BAR) 12.41
      MAXIMUM AIR INLET PRESSURE (KPA) 1241
      MAXIMUM AIR INLET PRESSURE (PSI) 180
      MAXIMUM OUTPUT VOLUME (LB/MIN) 7.5
      MAXIMUM WORKING PRESSURE (BAR) 186
      MAXIMUM WORKING PRESSURE (KPA) 18600
      MAXIMUM WORKING PRESSURE (PSI) 2700
      MODEL Fire-Ball
      POWER TYPE Pneumatic
      PUMP RATIO 15:1
      SERIES 300
      WEIGHT (LB) 22
      WETTED MATERIAL Carbon Steel, Brass, Copper, Aluminum, PTFE, Nitrile Rubber, Leather
      WEIGHT (KG) 0.9988
      MAXIMUM WORKING PRESSURE (MPA) 18.6

        Features

      • Reliable Flow: A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
      • Durable: Thick cast aluminum air motor housing offers unmatched durability.
      • Fewer Repairs: Fewer moving parts in the air motor assembly means less downtime and low repair cost.
      • Extended Seal Life: In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
      • Reduce Downtime: Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
      • Superior Sealing: Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
      • Reduced Icing: Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
      • Corrosion-Resistant: Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
