GRACO Fire - Ball 300 15:1 Grease Pumps - GO Industrial - 206699

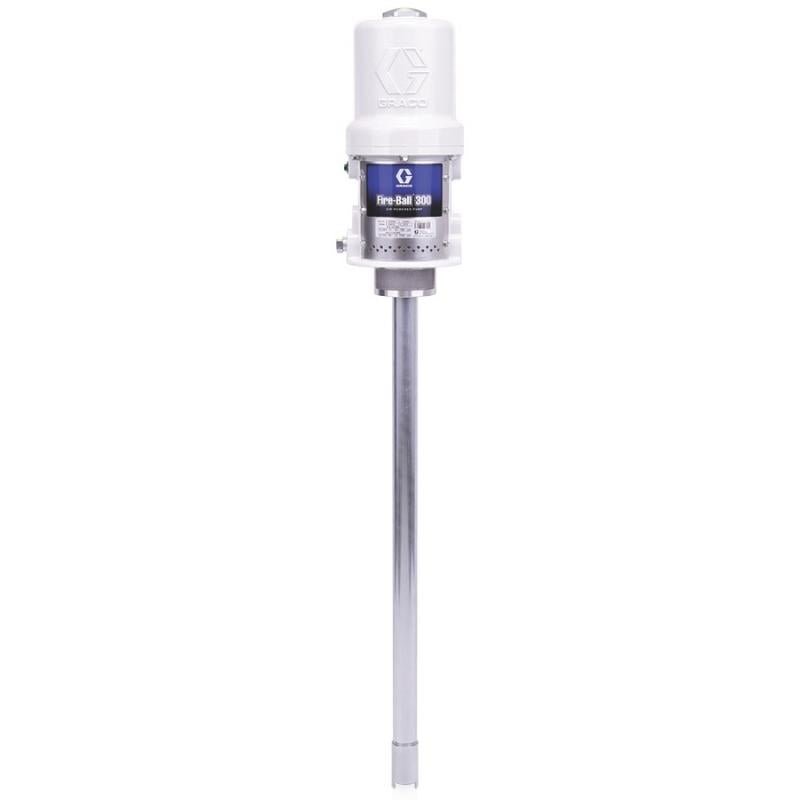

GRACO Fire-Ball 300 15:1 Grease Pumps

SKU 206699
Afterpay Zip PayPal LeaseGO
$3,400.00
Tax included. Shipping calculated at checkout.
Product
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Built for the work it does.

As the mainstay pump in the industry for decades, the reputation of Graco Fire-Ball, from GO Industrial, is unrivalled. Built to withstand the test of time with fewer moving parts, these flagship pumps are built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

    Features

    Features

  • Reliable Flow: A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
  • Durable: Thick cast aluminum air motor housing offers unmatched durability.
  • Fewer Repairs: Fewer moving parts in the air motor assembly means less downtime and low repair cost.
  • Extended Seal Life: In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
  • Reduce Downtime: Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
  • Superior Sealing: Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
  • Reduced Icing: Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
  • Corrosion-Resistant: Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
    • Specifications
  • Approx Free Flow Rate @ 100 psi - 3.4kg / min
  • Continuous Duty Flow Rate - 0.32kg / min
  • Air Inlet - 3/8" NPT (F)
  • Fluid Outlet - 1/4" NPT (F)
  • Air Operation Range - 40-180 psi
  • Max Fluid - 2700 PSI
    • TYPE Pneumatic Piston Pump
    AIR INLET SIZE (CM) 0.9525
    AIR INLET SIZE (IN) 3/8
    AIR INLET SIZE (MM) 9.525
    AIR INLET THREAD GENDER Female
    AIR INLET THREAD TYPE NPT
    AIR MOTOR EFFECTIVE DIAMETER (IN) 3
    APPLICATION Industrial
    COMPATIBLE MATERIAL Grease, Rustproofing, Undercoating
    CYCLES PER GALLON 90
    FLUID OUTLET SIZE (CM) 0.635
    FLUID OUTLET SIZE (IN) 1/4
    FLUID OUTLET SIZE (MM) 6.35
    FLUID OUTLET THREAD GENDER Female
    FOR USE WITH 180, 180, 180, 180
    MAXIMUM AIR INLET PRESSURE (BAR) 12.41
    MAXIMUM AIR INLET PRESSURE (KPA) 1241
    MAXIMUM AIR INLET PRESSURE (PSI) 180
    MAXIMUM OUTPUT VOLUME (LB/MIN) 7.5
    MAXIMUM WORKING PRESSURE (BAR) 186
    MAXIMUM WORKING PRESSURE (KPA) 18600
    MAXIMUM WORKING PRESSURE (PSI) 2700
    MODEL Fire-Ball
    POWER TYPE Pneumatic
    PUMP RATIO 15:1
    SERIES 300
    WEIGHT (LB) 22
    WETTED MATERIAL Carbon Steel, Brass, Copper, Aluminum, PTFE, Nitrile Rubber, Leather
    WEIGHT (KG) 0.9988
    MAXIMUM WORKING PRESSURE (MPA) 18.6
