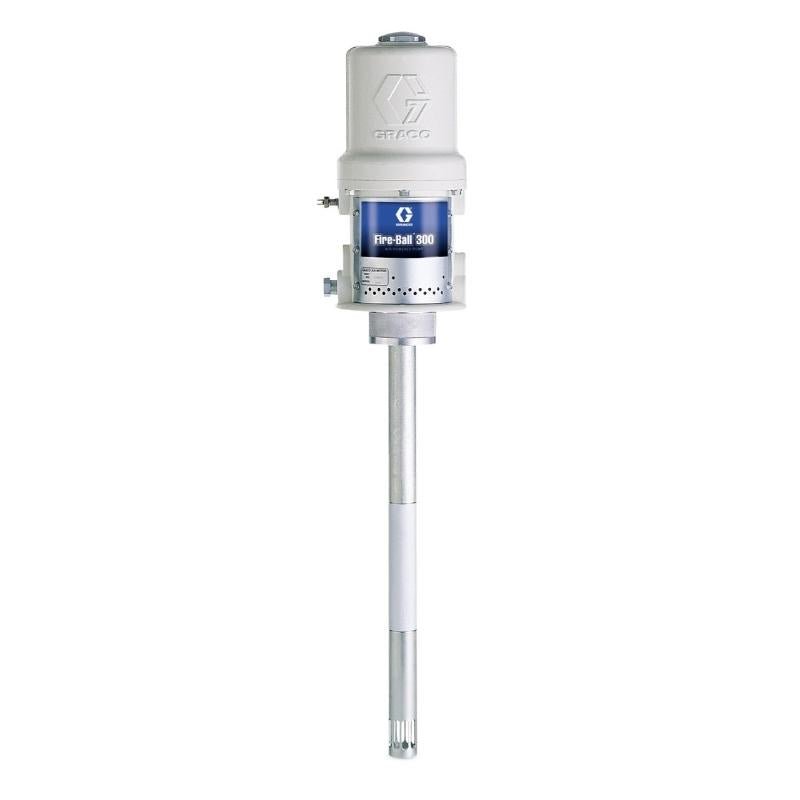

GRACO Fire-Ball 300 50:1 Grease Pumps

SKU: 239877

GRACO Fire-Ball 300 50:1 Grease Pumps

Regular price $2,453.00 AUD
Sale price $2,453.00 AUD Regular price
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Product

Other payment options

View full details
GRACO Fire - Ball 300 50:1 Grease Pumps - GO Industrial - 239877

GRACO Fire-Ball 300 50:1 Grease Pumps

Regular price From $2,453.00 AUD
Sale price $2,453.00 Regular price
Sold out

Features

  • Reliable Flow: A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
  • Durable: Thick cast aluminum air motor housing offers unmatched durability.
  • Fewer Repairs: Fewer moving parts in the air motor assembly means less downtime and low repair cost.
  • Extended Seal Life: In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
  • Reduce Downtime: Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
  • Superior Sealing: Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
  • Reduced Icing: Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
  • Corrosion-Resistant: Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
  • Graco Fire-Ball 300 50:1 Grease Pumps

    Overview

    As the mainstay pump in the industry for decades, the reputation of Graco Fire-Ball, from GO Industrial, is unrivalled. Built to withstand the test of time with fewer moving parts, these flagship pumps are built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently. Install the Fire-Ball 300 50:1 in grease dispense applications.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    Specifications

  • Approx Free Flow Rate @ 100 psi - 3.4kg / min
  • Continuous Duty Flow Rate - 0.54kg / min
  • Air Inlet - 3/8" NPT (F)
  • Fluid Outlet - 1/4" NPT (F)
  • Air Operation Range - 30-140 psi
  • Max Fluid - 8400 PSI
  • TYPE Pneumatic Piston Pump
    AIR INLET SIZE (CM) 0.9525
    AIR INLET SIZE (IN) 3/8
    AIR INLET SIZE (MM) 9.525
    AIR INLET THREAD GENDER Female
    AIR INLET THREAD TYPE NPT
    AIR MOTOR EFFECTIVE DIAMETER (IN) 3
    APPLICATION Industrial
    COMPATIBLE MATERIAL Grease
    CYCLES PER GALLON 345
    FLUID INLET THREAD GENDER Female
    FLUID INLET THREAD TYPE NPT
    FLUID INLET TYPE Slotted
    FLUID OUTLET SIZE (CM) 0.635
    FLUID OUTLET SIZE (IN) 1/4
    FLUID OUTLET SIZE (MM) 6.35
    FLUID OUTLET THREAD GENDER Female
    FLUID OUTLET THREAD TYPE NPT
    FOR USE WITH Grease
    MAXIMUM AIR CONSUMPTION (SCFM) 22.8
    MAXIMUM AIR INLET PRESSURE (BAR) 9.65
    MAXIMUM AIR INLET PRESSURE (KPA) 965
    MAXIMUM AIR INLET PRESSURE (PSI) 140
    MAXIMUM CONTINUOUS CYCLE RATE (CPM) 76
    MAXIMUM INTERMITTENT CYCLE RATE (CPM) 76
    MAXIMUM WORKING PRESSURE (BAR) 580
    MAXIMUM WORKING PRESSURE (KPA) 58000
    MAXIMUM WORKING PRESSURE (PSI) 8400
    MODEL Fire-Ball
    POWER TYPE Pneumatic
    PUMP RATIO 50:1
    SERIES 300
    SOUND POWER LEVEL (DB(A)) 85.6
    SOUND PRESSURE LEVEL (DB(A)) 77.8
    WEIGHT (LB) 22
    WETTED MATERIAL Steel, Brass, Aluminum, Acetal, Nitrile Rubber, Polyurethane
    WEIGHT (KG) 0.9988
    MAXIMUM WORKING PRESSURE (MPA) 58

      Features

    • Reliable Flow: A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
    • Durable: Thick cast aluminum air motor housing offers unmatched durability.
    • Fewer Repairs: Fewer moving parts in the air motor assembly means less downtime and low repair cost.
    • Extended Seal Life: In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
    • Reduce Downtime: Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
    • Superior Sealing: Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
    • Reduced Icing: Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
    • Corrosion-Resistant: Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
