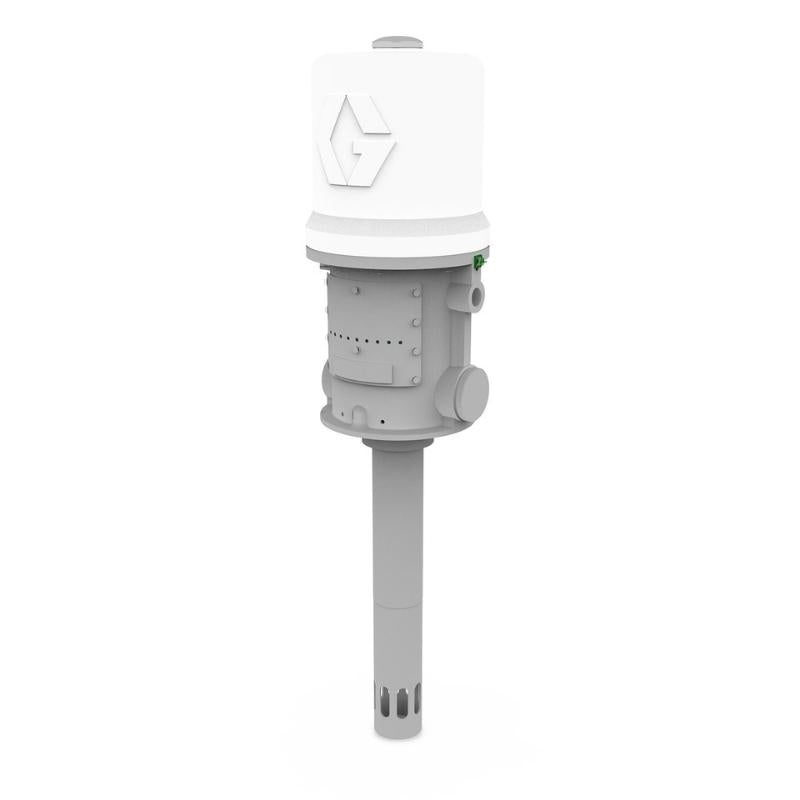

GRACO Fire-Ball 425 10:1 Grease Pumps

SKU: 965124

GRACO Fire-Ball 425 10:1 Grease Pumps

Regular price $11,440.00 AUD
Sale price $11,440.00 AUD Regular price
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Product

Other payment options

View full details
GRACO Fire - Ball 425 10:1 Grease Pumps - GO Industrial - 965124

GRACO Fire-Ball 425 10:1 Grease Pumps

Regular price $11,440.00 AUD
Sale price $11,440.00 AUD Regular price
Save $0
Sold out

Details

The Fire-Ball 425 features a 4.25 inch (107.9 mm) air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.

Features

  • Durable Casting: Thick cast aluminum air motor housing offers unmatched durability.
  • Fewer Repairs: Fewer moving parts in the air motor assembly means less downtime and low repair cost.
  • Superior Sealing: Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
  • Extended Seal Life: In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
  • Corrosion-Resistant: Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
  • Graco Fire-Ball 425 10:1 Grease Pumps

    Overview

    As the mainstay pump in the industry for decades, the reputation of Graco Fire-Ball, from GO Industrial, is unrivalled. Built to withstand the test of time with fewer moving parts, these flagship pumps are built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    Specifications

  • Simultaneous Dispense Points - 1 to 3
  • Approx Free Flow Rate @ 100 psi - 13.1kg / min
  • Air Inlet - 1/2" NPT (F)
  • Fluid Outlet - 1" NPT (F)
  • Air Operation Range - 40-180 psi
  • Max Fluid - 1800 PSI
  • TYPE Pneumatic Piston Pump
    AIR INLET SIZE (CM) 1.27
    AIR INLET SIZE (IN) 0.5
    AIR INLET SIZE (MM) 12.7
    AIR INLET THREAD GENDER Female
    AIR INLET THREAD TYPE NPT
    AIR MOTOR EFFECTIVE DIAMETER (IN) 4.25
    APPLICATION Industrial
    COMPATIBLE MATERIAL Grease
    CYCLES PER GALLON 20
    FLUID INLET TYPE Slotted
    FLUID OUTLET SIZE (CM) 2.54
    FLUID OUTLET SIZE (IN) 1
    FLUID OUTLET SIZE (MM) 25.4
    FLUID OUTLET THREAD GENDER Female
    FLUID OUTLET THREAD TYPE NPT
    FOR USE WITH Grease
    MAXIMUM AIR INLET PRESSURE (BAR) 12.41
    MAXIMUM AIR INLET PRESSURE (KPA) 1241
    MAXIMUM AIR INLET PRESSURE (PSI) 180
    MAXIMUM CONTINUOUS CYCLE RATE (CPM) 60
    MAXIMUM FLOW RATE (GPM) 3.5
    MAXIMUM FLOW RATE (L/MIN) 13.25
    MAXIMUM INTERMITTENT CYCLE RATE (CPM) 60
    MAXIMUM WORKING PRESSURE (BAR) 124
    MAXIMUM WORKING PRESSURE (KPA) 12400
    MAXIMUM WORKING PRESSURE (PSI) 1800
    MODEL Fire-Ball
    POWER TYPE Pneumatic
    PUMP RATIO 10:1
    SERIES 425
    SOUND POWER LEVEL (DB(A)) 94.62
    SOUND PRESSURE LEVEL (DB(A)) 80.85
    WEIGHT (LB) 38
    WETTED MATERIAL Steel, Brass, Aluminum, Leather, Buna-N
    WEIGHT (KG) 1.7252
    MAXIMUM WORKING PRESSURE (MPA) 12.4

      Features

    • Durable Casting: Thick cast aluminum air motor housing offers unmatched durability.
    • Fewer Repairs: Fewer moving parts in the air motor assembly means less downtime and low repair cost.
    • Superior Sealing: Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
    • Extended Seal Life: In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
    • Corrosion-Resistant: Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
