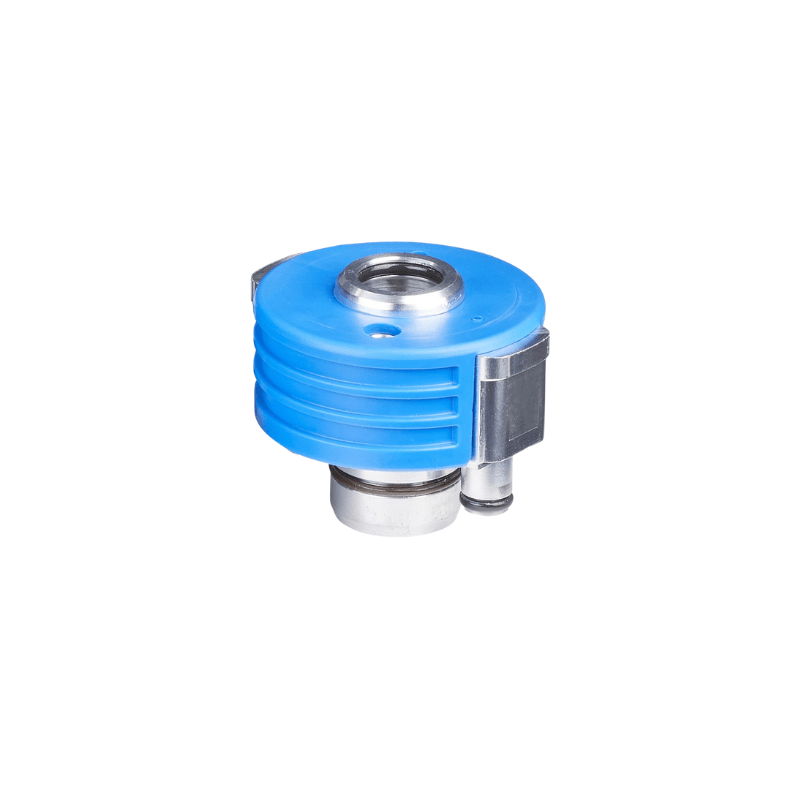

The Fusion ProConnect cartridge carries the entire fluid section of a Fusion PC gun in one piece. The 13 parts a traditional rebuild works through, including the integrated A and B side check valves and every fluid-side o-ring, come out and go back in as a single unit. That turns a workshop strip-down into a swap you can do on the job.
It suits a Fusion PC spray gun, or a Fusion AP gun converted with the ProConnect Conversion Kit. The gun runs to a maximum fluid working pressure of 3500 PSI (245 BAR) at a maximum fluid temperature of 94°C. Keeping a spare on the truck means a worn or blocked front end does not end the shift: fit the fresh cartridge, keep spraying, and service the used one back at the workshop.
This is the standard blue ProConnect cartridge, covered by the Fusion PC gun manual for non-flammable foam and polyurea. If you are spraying 1:1 MMA or cold applied plastic through a LineLazer V 200MMA, the orange MMA cartridge (25V433) is the part listed in that machine's manual. Plenty of pavement crews run the blue cartridge, so if you are not certain which one suits your material, talk to us before you order.
Available as a single cartridge, a 3 pack or a 5 pack. The 5 pack includes the cartridge tool set (jack screw, grease tool and divider tool). The single and 3 pack do not, so order the tool kit separately (25P660) if this is your first ProConnect change.
Features
- Single-Piece Fluid Section: Replaces the 13 individual parts of a traditional Fusion PC fluid section rebuild with one cartridge.
- Integrated Check Valves: A and B side check valves are built into the cartridge for cross-over containment, so both are renewed at every change.
- No Loose O-Rings: Every fluid-side o-ring is fitted in the cartridge, which removes the need to buy and stage a separate o-ring kit.
- Jobsite Serviceable: Designed to be swapped in the field with the Fusion PC cartridge tool kit rather than stripped down on a workshop bench.
- Backup Gun Cover: A spare cartridge brings a second or standby gun back into service without waiting on a parts order.
- Rated Duty: Runs at up to 3500 PSI (245 BAR) maximum fluid working pressure and 94°C maximum fluid temperature in a Fusion PC gun.
- Tools In The 5 Pack: The 5 pack ships with the jack screw, grease tool and divider tool; the single and 3 pack do not include them.
Included accessories
Specifications
| TYPE | Replacement Fluid Cartridge |
|---|---|
| MODEL | Fusion PC (ProConnect) |
| SUITS | Fusion PC Spray Gun | Fusion AP Gun Fitted With ProConnect Conversion Kit |
| MATERIAL DUTY | Non-Flammable Foam And Polyurea (For 1:1 MMA Or Cold Applied Plastic See Orange Cartridge 25V433) |
| MAXIMUM FLUID WORKING PRESSURE | 3500 PSI | 245 BAR | 24.5 MPA |
| MAXIMUM FLUID TEMPERATURE | 94 °C | 200 °F |
| PARTS REPLACED | 13 (Complete Fluid Section Including Check Valves And Fluid-Side O-Rings) |
| FLUID PORT WETTED MATERIALS | Stainless Steel, Anodised Aluminium, Aluminium, Polycarballoy, Nylon, Chemically Resistant O-Rings |
| AIR AND GREASE PORT MATERIALS | Stainless Steel, Anodised Aluminium, Aluminium, Nylon, Non-Chemically Resistant O-Rings |
| PACK SIZES | 1 Pack (19Y300) | 3 Pack (19Y301) | 5 Pack (19Y308) |
| CARTRIDGE TOOL KIT | Included With 5 Pack | Sold Separately As 25P660 |
| COUNTRY OF ORIGIN | United States |
