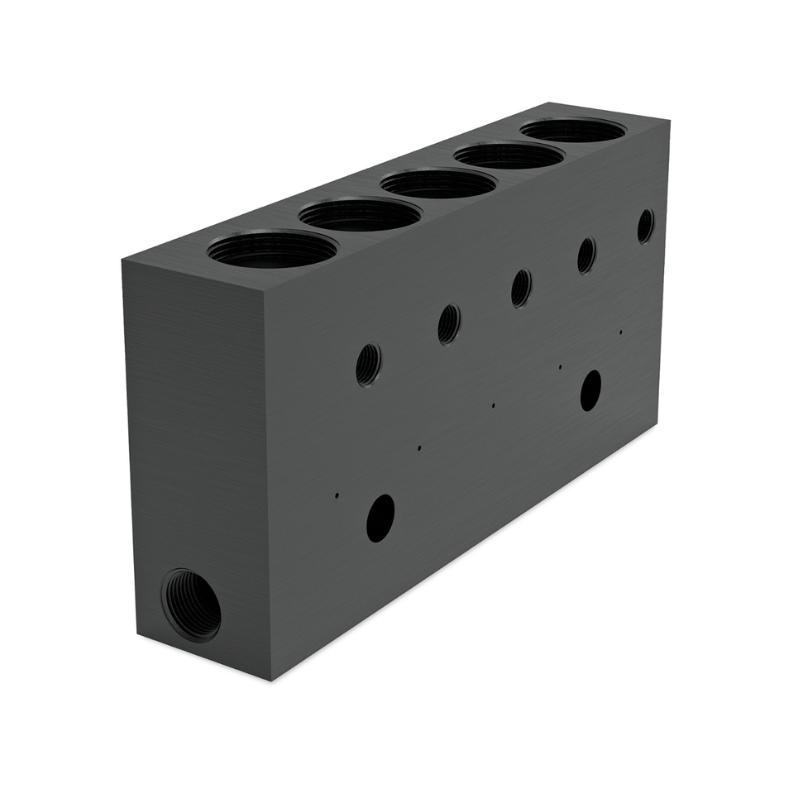

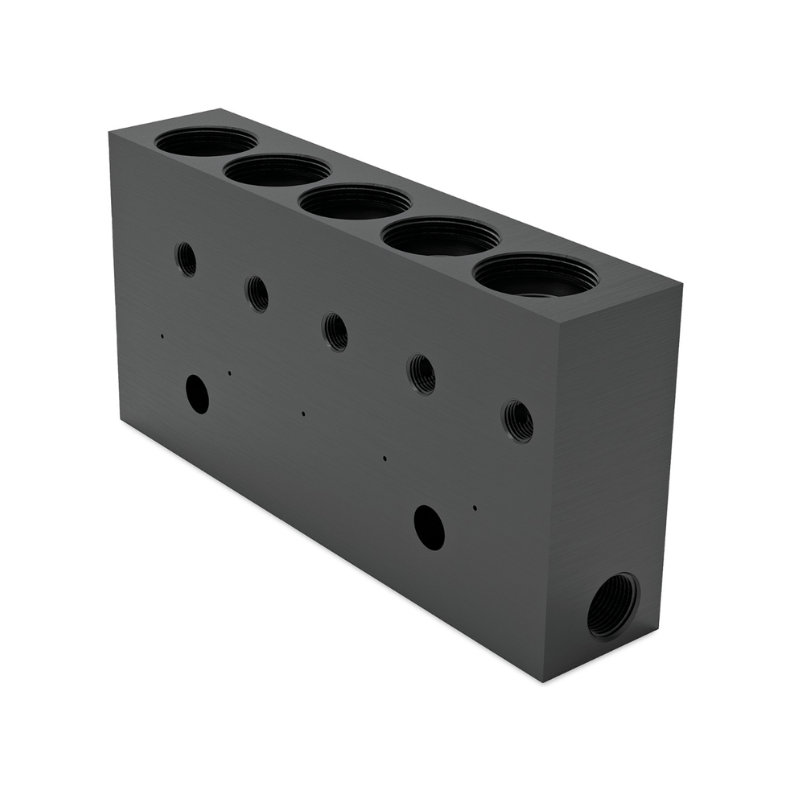

Graco GCI™ Series 5-Point Standard-Pressure Grease Injector Manifold
Graco GCI™ Series 5-Point Standard-Pressure Grease Injector Manifold
  • Graco GCI™ Series 5-Point Standard-Pressure Grease Injector Manifold
  • Graco GCI™ Series 5-Point Standard-Pressure Grease Injector Manifold
1 3

GRACO GCI Series 5-Point Standard-Pressure Grease Injector Manifold

SKU: 134365

GRACO GCI Series 5-Point Standard-Pressure Grease Injector Manifold

$381.00 AUD
$381.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.

Other payment options

View full details
Graco GCI™ Series 5-Point Standard-Pressure Grease Injector Manifold

GRACO GCI Series 5-Point Standard-Pressure Grease Injector Manifold

$381.00 AUD
$381.00 AUD
Save $0
Sold out

Features

  • Greater Output Range — 0.015 to 0.150 in3, nearly doubling the output of our GL-1 injectors, reducing the need for crossporting multiple injectors in a system.
  • Backwards Compatible — Uses same mounting pattern as GL-1 and GL-1 X series injectors that also match many competitive mounting patterns.
  • Faster, Cleaner Installation — Minimize downtime from field damage and run lines as discreetly as possible with outlets on the front face and the bottom of the injector manifolds.

    • Graco GCI Series 5-Point Standard-Pressure Grease Injector Manifold

    Overview

    This revolutionary new cartridge injector system from Graco ushers in a new era of automatic lubrication system technology – transforming uptime, production capacity and profitability expectations through groundbreaking reductions in maintenance frequency, labor and costly downtime.

    For mining, construction, off-road/on-road mobile equipment and other single-line parallel automatic lubrcation applications operating at or below 3500 psi.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Warranty

      Read our complete warranty terms & conditions here.

      Warranty

      Read our complete warranty terms & conditions here.

      Secure Payment

      All our online payment methods are secured.

      Secure Payment

      All our online payment methods are secured.

      • GO Graco Manual GCI Series Injector 3A9293EN-E
      • GO Data Sheet Graco GCI Series Injectors 353401EN-B

      Specifications

      COMPATIBLE MATERIAL Grease
      FOR USE WITH GCI Injectors
      INLET SIZE (CM) 0.9525
      INLET SIZE (IN) 3/8
      INLET SIZE (MM) 9.525
      INLET THREAD TYPE NPT
      MATERIAL Aluminum
      MAXIMUM NLGI GRADE #2
      MAXIMUM WORKING PRESSURE (BAR) 241
      MAXIMUM WORKING PRESSURE (PSI) 3500
      OUTLET SIZE (CM) 0.9525
      OUTLET SIZE (IN) 3/8
      OUTLET SIZE (MM) 9.525
      OUTLET THREAD TYPE NPT
      TYPE Injector Manifold
      APPLICATION In-Plant Machinery, Off-Road Equipment
      COMPATIBLE METERING DEVICE Single Line Parallel
      MODEL GCI

        Features

      • Greater Output Range — 0.015 to 0.150 in3, nearly doubling the output of our GL-1 injectors, reducing the need for crossporting multiple injectors in a system.
      • Backwards Compatible — Uses same mounting pattern as GL-1 and GL-1 X series injectors that also match many competitive mounting patterns.
      • Faster, Cleaner Installation — Minimize downtime from field damage and run lines as discreetly as possible with outlets on the front face and the bottom of the injector manifolds.
