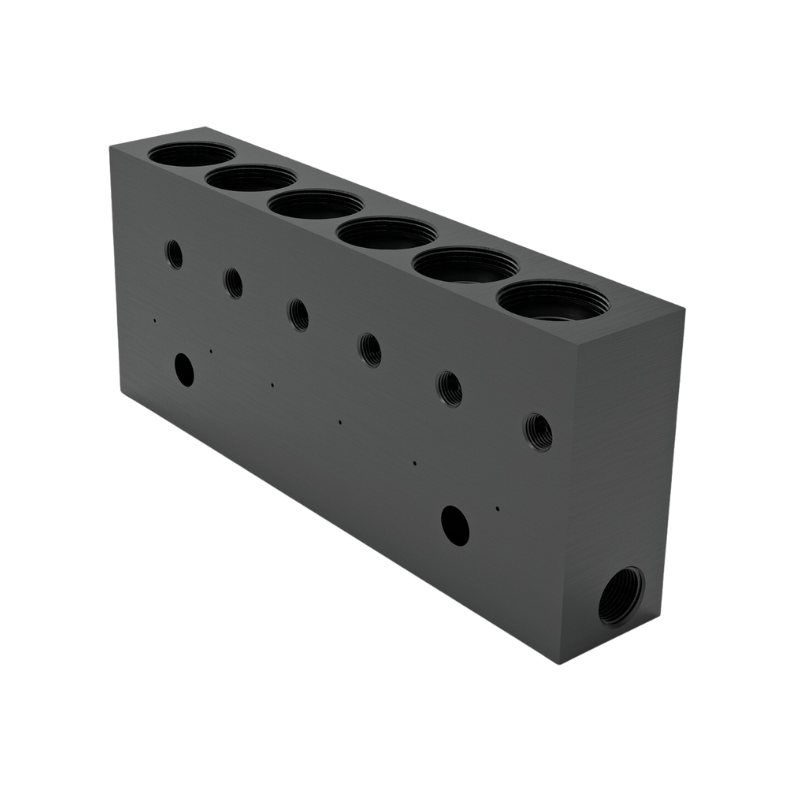

GRACO GCI Series 6-Point Standard-Pressure Grease Injector Manifold
SKU: 134366GRACO GCI Series 6-Point Standard-Pressure Grease Injector Manifold
Other payment options
Delivery & Shipping
GRACO GCI Series 6-Point Standard-Pressure Grease Injector Manifold
Features
Graco GCI Series 6-Point Standard-Pressure Grease Injector Manifold
Overview
This revolutionary new cartridge injector system from Graco ushers in a new era of automatic lubrication system technology – transforming uptime, production capacity and profitability expectations through groundbreaking reductions in maintenance frequency, labor and costly downtime.
For mining, construction, off-road/on-road mobile equipment and other single-line parallel automatic lubrcation applications operating at or below 3500 psi.
- Greater Output Range — 0.015 to 0.150 in3, nearly doubling the output of our GL-1 injectors, reducing the need for crossporting multiple injectors in a system.
- Backwards Compatible — Uses same mounting pattern as GL-1 and GL-1 X series injectors that also match many competitive mounting patterns.
- Faster, Cleaner Installation — Minimize downtime from field damage and run lines as discreetly as possible with outlets on the front face and the bottom of the injector manifolds.
Specifications
| COMPATIBLE MATERIAL | Grease |
|---|---|
| FOR USE WITH | GCI Injectors |
| INLET SIZE (CM) | 0.9525 |
| INLET SIZE (IN) | 3/8 |
| INLET SIZE (MM) | 9.525 |
| INLET THREAD TYPE | NPT |
| MATERIAL | Aluminum |
| MAXIMUM NLGI GRADE | #2 |
| MAXIMUM WORKING PRESSURE (BAR) | 241 |
| MAXIMUM WORKING PRESSURE (PSI) | 3500 |
| OUTLET SIZE (CM) | 0.9525 |
| OUTLET SIZE (IN) | 3/8 |
| OUTLET SIZE (MM) | 9.525 |
| OUTLET THREAD TYPE | NPT |
| TYPE | Injector Manifold |
| APPLICATION | In-Plant Machinery, Off-Road Equipment |
| COMPATIBLE METERING DEVICE | Single Line Parallel |
| MODEL | GCI |
