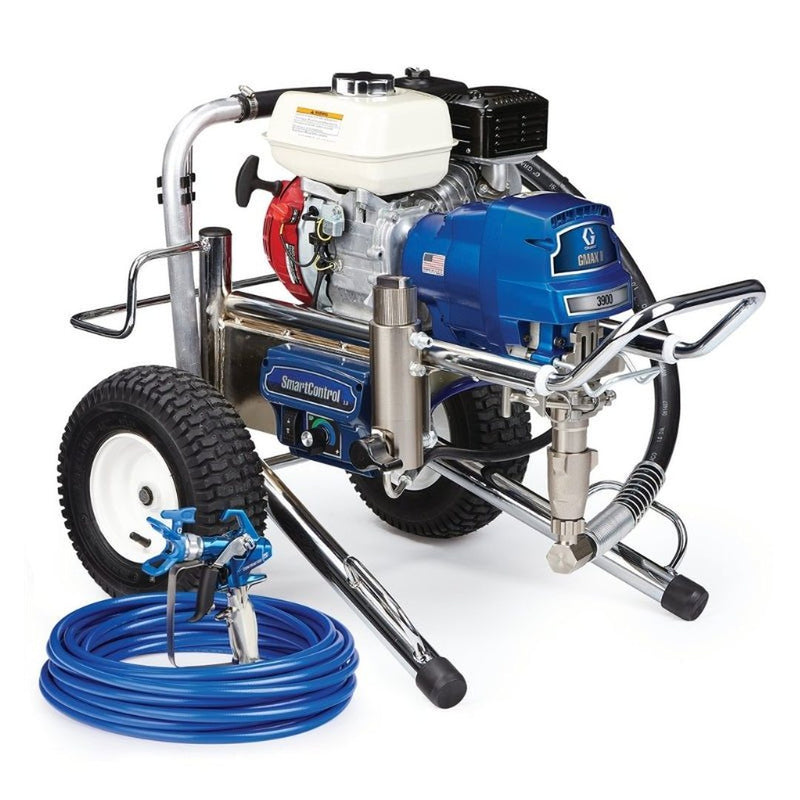

GRACO GMAX II 3900 Lo-Boy Standard Series Gas Airless Sprayer
1 1

GRACO GMAX II 3900 Lo-Boy Standard Series Gas Airless Sprayer

SKU: 17E826

GRACO GMAX II 3900 Lo-Boy Standard Series Gas Airless Sprayer

$11,110.00 AUD
$11,110.00 AUD $0.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.

Other payment options

View full details
GRACO GMAX II 3900 Lo-Boy Standard Series Gas Airless Sprayer

GRACO GMAX II 3900 Lo-Boy Standard Series Gas Airless Sprayer

$11,110.00 AUD
$11,110.00 AUD $0.00 AUD
Save $0
Sold out

Details

Everyday Reliability. Graco GMAX Standard Series gas-powered airless paint sprayers deliver unmatched durability and performance, with the capability to handle the widest range of tip sizes, longer hose lengths and heavier coatings with ease.

Features

  • Endurance Chromex Piston Pump
    • The most reliable pump
    • Lasts 2X Longer than the next leading brand
    • Repack the pump in minutes with the new QuikPak Cartridge System
    • QuikChange pump design allows you to swap the pump easily on the job
    • Faster cleaning with the QuikAccess intake foot valve
  • ProConnect 2 Pump Replacement System
    • Pump swaps in 1-minute or less – no tools, pins or parts to lose
    • Eliminate costly downtime
  • SmartControl 3.0
    • Consistent spray fan & pressure control
    • Handles the widest range of coatings with the most consistent fan pattern
    • Lowest dead band at any pressure
  • Precision Advantage Drive
    • The longest lasting drive
    • Hardened steel gears provide extremely quiet operation
    • Lifetime Warranty
  • Easy Out Pump Filter
    • Easy maintenance & less clogging
    • Exclusive inside-out filtering won't collapse to ensure a quality finish
    • Vertical design for less mess
  • Heavy-Duty Prime Valve
    • Maintenance-free design withstands high-pressure dumping
  • Durable Cart Design
    • Rugged and easy-to-maneuver
    • Thick chrome over steel and pneumatic wheels for tough jobsite conditions
    • Convenient retractable bucket hook allows for easy movement on the job
  • Honda® Engine
    • Reliable, powerful & easy-to-start
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
    • Contractor Preferred
  • Contractor PC Spray Gun
    • All-day comfort & control
    • Lightest weight gun in its class
    • Up to 50% lighter trigger pull force
    • E-Z Fit adjustable trigger length
    • Complete gun rebuild in seconds with ProConnect cartridge
    • More info:graco.com/ContractorPC
  • Jobsite Ready
    • Includes RAC X SwitchTip and 50 ft of BlueMax II hose

Graco GMAX II 3900 Standard Series Gas Airless Sprayer, Lo-Boy 17E826

Overview

Producing 65% more performance than the GMAX 3400, the GMAX II 3900 has the power and flow to handle up to two guns and is ideal for the professional contractor who sprays a wide variety of coatings.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

  • Graco GMAX II 3900 Manual 3A6400EN-B
  • GMAX 3400 GMAX II 3900 5900 7900 and 5900 HD 7900 HD Airless Sprayers Manual 3A6417EN-H
  • GO Manual Graco Displacement Pump Repair 3A6583EN-A
  • GMAX 3400 GMAX II 3900 5900 7900 and TexSpray 5900HD 7900 HD Airless Sprayer Manuals 3A6418EN-A
  • GO Data Sheet Graco GMAXII 3900 Lo-Boy Standard Series 344383EN-I
  • Gas Airless Sprayers Brochure 344383EN-I

Specifications

CONVERTIBLE Non-Convertible
ENGINE BRAND Honda
ENGINE SIZE (HP) 4
FEATURES Endurance Chromex Pump, ProConnect 2, SmartControl 3.0, Honda Engine, Advantage Drive, Easy Out Filter, Heavy-Duty Prime Valve, Contractor PC Gun
FLUID INLET SIZE (IN) 1-5/16
FLUID INLET SIZE (MM) 33.34
FLUID INLET THREAD TYPE UN-2A
FLUID OUTLET SIZE (IN) 1/4
FLUID OUTLET SIZE (MM) 6.35
FLUID OUTLET THREAD TYPE NPSM
FRAME CONFIGURATION Lo-Boy
HOSE INLET DIAMETER (CM) 0.635
HOSE INLET DIAMETER (IN) 1/4
HOSE INLET DIAMETER (MM) 6.35
INCLUDES Contractor PC, Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz
INLET PAINT STRAINER 8 Mesh Stainless Steel Screen
MAXIMUM FLOW RATE (GPM) 1.25
MAXIMUM FLOW RATE (L/MIN) 4.73
MAXIMUM SOUND PRESSURE LEVEL (DB(A)) 96
MAXIMUM TIP SIZE (IN) 0.036
MAXIMUM TIP SIZE GUN 1 (IN) 0.036
MAXIMUM WORKING PRESSURE (PSI) 3300
MAXIMUM WORKING PRESSURE (KPA) 22800
POWER RATING (HP) 4
POWER SOURCE Gas
POWER RATING (KW) 2.98
POWER RATING (W) 2983
MAXIMUM WORKING PRESSURE (MPA) 22.8
PRESSURE CONTROL TYPE SmartControl 3.0
OVERALL WIDTH (MM) 620
MODEL GMAX II
MAXIMUM WORKING PRESSURE (BAR) 228
OVERALL HEIGHT (CM) 67.1
OVERALL HEIGHT (IN) 26.4
WEIGHT (KG) 56
WEIGHT (LB) 123
OVERALL HEIGHT (MM) 671
OVERALL LENGTH (CM) 119.1
OVERALL WIDTH (IN) 24.4
OVERALL LENGTH (IN) 46.9
SERIES 3900
OVERALL LENGTH (MM) 1191
OVERALL WIDTH (CM) 62
PUMP TYPE Endurance
TYPE Airless Sprayer
WETTED MATERIAL Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
OUTLET PAINT FILTER 60 Mesh Stainless Steel Screen
PUMP SLEEVE MATERIAL Stainless Steel
PUMP MOUNT TYPE ProConnect 2
PUMP ROD TYPE Chromex
NUMBER OF GUNS 2
MAXIMUM TIP SIZE GUN 2 (IN) 0.023
RECOMMENDED ANNUAL USAGE Up to 500 gallons per week
POWER RATING (CC) 120
PRODUCT SERIES Standard

    Features

    • Endurance Chromex Piston Pump
      • The most reliable pump
      • Lasts 2X Longer than the next leading brand
      • Repack the pump in minutes with the new QuikPak Cartridge System
      • QuikChange pump design allows you to swap the pump easily on the job
      • Faster cleaning with the QuikAccess intake foot valve
    • ProConnect 2 Pump Replacement System
      • Pump swaps in 1-minute or less – no tools, pins or parts to lose
      • Eliminate costly downtime
    • SmartControl 3.0
      • Consistent spray fan & pressure control
      • Handles the widest range of coatings with the most consistent fan pattern
      • Lowest dead band at any pressure
    • Precision Advantage Drive
      • The longest lasting drive
      • Hardened steel gears provide extremely quiet operation
      • Lifetime Warranty
    • Easy Out Pump Filter
      • Easy maintenance & less clogging
      • Exclusive inside-out filtering won't collapse to ensure a quality finish
      • Vertical design for less mess
    • Heavy-Duty Prime Valve
      • Maintenance-free design withstands high-pressure dumping
    • Durable Cart Design
      • Rugged and easy-to-maneuver
      • Thick chrome over steel and pneumatic wheels for tough jobsite conditions
      • Convenient retractable bucket hook allows for easy movement on the job
    • Honda® Engine
      • Reliable, powerful & easy-to-start
      • Oil Alert shuts down engine to prevent damage if oil level drops too low
      • Contractor Preferred
    • Contractor PC Spray Gun
      • All-day comfort & control
      • Lightest weight gun in its class
      • Up to 50% lighter trigger pull force
      • E-Z Fit adjustable trigger length
      • Complete gun rebuild in seconds with ProConnect cartridge
      • More info:graco.com/ContractorPC
    • Jobsite Ready
      • Includes RAC X SwitchTip and 50 ft of BlueMax II hose
