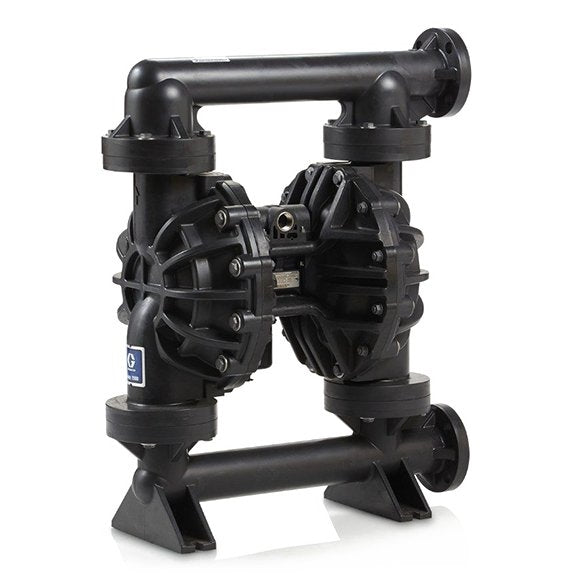

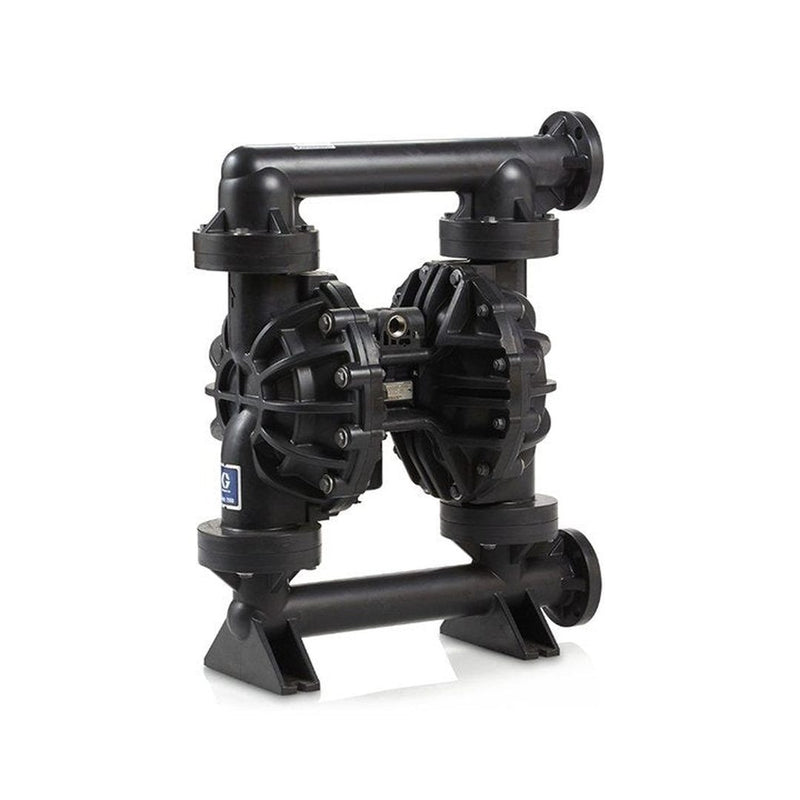

GRACO Husky 2200 AL Air-Operated Double Diaphragm PVDF Pump

SKU: 653546

GRACO Husky 2200 AL Air-Operated Double Diaphragm PVDF Pump

$24,310.00 AUD
$24,310.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Other payment options

View full details
GRACO Husky 2200 AL Air - Operated Double Diaphragm PVDF Pump - GO Industrial - 653546

GRACO Husky 2200 AL Air-Operated Double Diaphragm PVDF Pump

$24,310.00 AUD
$24,310.00 AUD
Save $0
Sold out

Details

  • Rugged construction. Resists corrosion for reliable performance and long life
  • Heavy-duty design. Offers long life, increased productivity and lower overall cost of ownership
  • Flow rates up to 200 gpm (757 lpm)
  • Lube-free for cleaner operation
  • DataTrak™ available to prevent pump runaway and track material usage

Choose from a wide selection of materials to handle numerous applications, including corrosive and abrasive fluid transfer.

Applicable for:

  • Paints, stains, coatings, inks and dyes
  • Chemicals
  • Acids
  • Corrosive and abrasive fluids
  • Lubricants
  • Ceramic glazes
  • Sludge, slurry, and waste fluid
  • Soaps, detergents, and solvents

Features

  • Overall improved air efficiency
  • Highest fluid flow rate in its class
  • Expanded material offering to handle endless applications
  • Available with Overmolded diaphragms (up to 5 times longer diaphragm life)
  • 2 in (50.8 mm) ANSI center and end-porting options available
  • High flow - 200 gpm (757 lpm) in a compact, portable size
  • Fluid pressure to 125 psi (8.6 bar, 0.86 MPa)
  • Lube-free operation
  • Available in polypropylene and PVDF

    • Graco Husky 2200 AL Air-Operated Double Diaphragm PVDF Pump

    Overview

    The Husky 2200 air-operated diaphragm pump features a single piece polypropylene center section for increased reliability and chemical compatibility, plus a patented, high-reliability modular air valve that is online serviceable. This diaphragm pump is designed with a reinforced frame for improved reliability and will help to eliminate fluid leakage.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Warranty

      Read our complete warranty terms & conditions here.

      Warranty

      Read our complete warranty terms & conditions here.

      Secure Payment

      All our online payment methods are secured.

      Secure Payment

      All our online payment methods are secured.

      • Graco Husky 2200 Air-Operated Diaphragm Pump Manual 3A2578EN-F
      • Graco Husky 2200 Data Sheet
      • Graco Husky 2200 Repair Parts Manual 3A2578EN-F

      Specifications

      TYPE Pneumatic Diaphragm Pump
      AIR EXHAUST PORT SIZE (IN) 1
      AIR EXHAUST PORT THREAD GENDER Female
      AIR EXHAUST PORT THREAD TYPE NPT
      AIR INLET SIZE (IN) 3/4
      AIR INLET THREAD GENDER Female
      AIR INLET THREAD TYPE NPT
      APPLICATION Industrial
      BALL MATERIAL PTFE
      CENTER SECTION MATERIAL Polypropylene
      COMPATIBLE MATERIAL Antifreeze, Detergents, Windshield Washer Fluid, Diesel Exhaust Fluid, Cutting Oil, Water, Water - Wastewater Treatment, Water, Water - Wastewater Transfer
      DIAPHRAGM MATERIAL PTFE/EPDM 2-Piece
      FLUID INLET SIZE (CM) 5.08
      FLUID INLET SIZE (IN) 2
      FLUID INLET SIZE (MM) 50.8
      FLUID OUTLET SIZE (CM) 5.08
      FLUID OUTLET SIZE (IN) 2
      FLUID OUTLET SIZE (MM) 50.8
      FLUID SECTION MATERIAL PVDF (Kynar)
      MANIFOLD CONFIGURATION End Port
      MANIFOLD O-RING MATERIAL PTFE
      MATERIAL PVDF
      MAXIMUM AIR CONSUMPTION (SCFM) 140
      MAXIMUM AIR PRESSURE (BAR) 8.6
      MAXIMUM AIR PRESSURE (KPA) 860
      MAXIMUM AIR PRESSURE (PSI) 125
      MAXIMUM CYCLE RATE (CPM) 125
      MAXIMUM FLOW RATE (GPM) 200
      MAXIMUM FLOW RATE (L/MIN) 757
      MAXIMUM FLUID PRESSURE (BAR) 8.6
      MAXIMUM FLUID PRESSURE (KPA) 860
      MAXIMUM FLUID PRESSURE (PSI) 125
      MAXIMUM OPERATING TEMPERATURE (°C) 82
      MAXIMUM OPERATING TEMPERATURE (°F) 180
      MAXIMUM SOLID SIZE (CM) 0.9525
      MAXIMUM SOLID SIZE (IN) 0.375
      MAXIMUM SOLID SIZE (MM) 9.525
      MINIMUM OPERATING TEMPERATURE (°C) 0
      MINIMUM OPERATING TEMPERATURE (°F) 32
      MINIMUM STORAGE TEMPERATURE (°C) 0
      MINIMUM STORAGE TEMPERATURE (°F) 32
      MODEL Husky
      POWER SOURCE Air
      SEAT MATERIAL PVDF (Kynar)
      SERIES 2200
      STANDARDS MET CE
      WEIGHT (LB) 106
      MAXIMUM FLUID PRESSURE (MPA) 0.86
      MAXIMUM AIR PRESSURE (MPA) 0.86
      CONNECTION TYPE End Flange ANSI/DIN
      DIAPHRAGM_COMPATIBLE_MATERIAL PTFE

        Features

      • Overall improved air efficiency
      • Highest fluid flow rate in its class
      • Expanded material offering to handle endless applications
      • Available with Overmolded diaphragms (up to 5 times longer diaphragm life)
      • 2 in (50.8 mm) ANSI center and end-porting options available
      • High flow - 200 gpm (757 lpm) in a compact, portable size
      • Fluid pressure to 125 psi (8.6 bar, 0.86 MPa)
      • Lube-free operation
      • Available in polypropylene and PVDF
